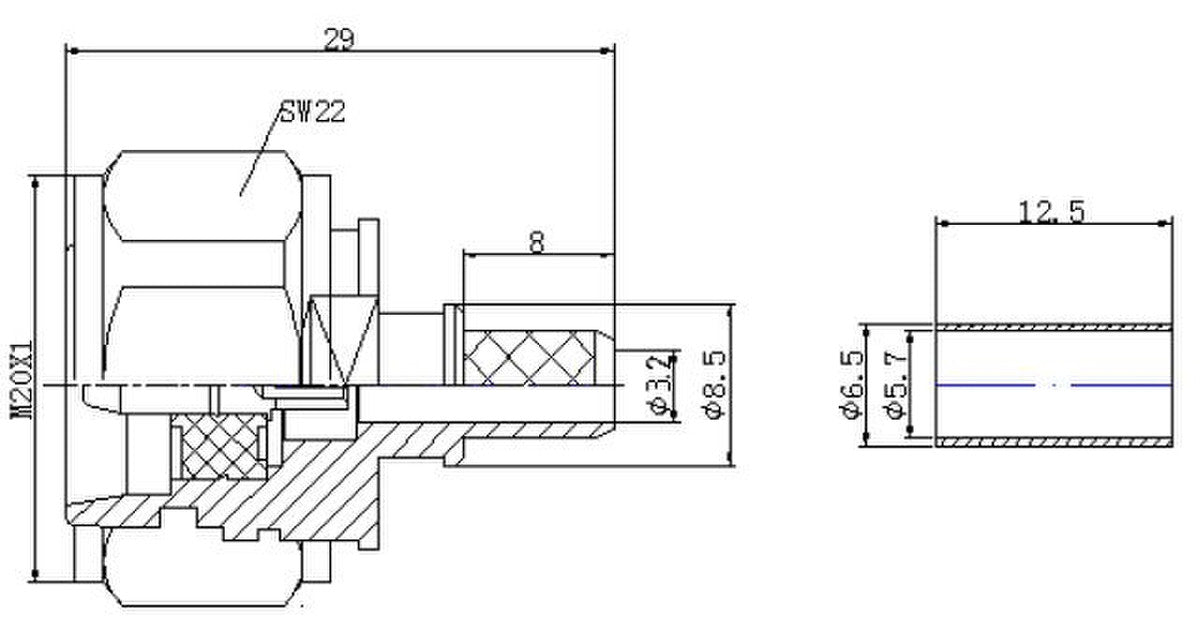

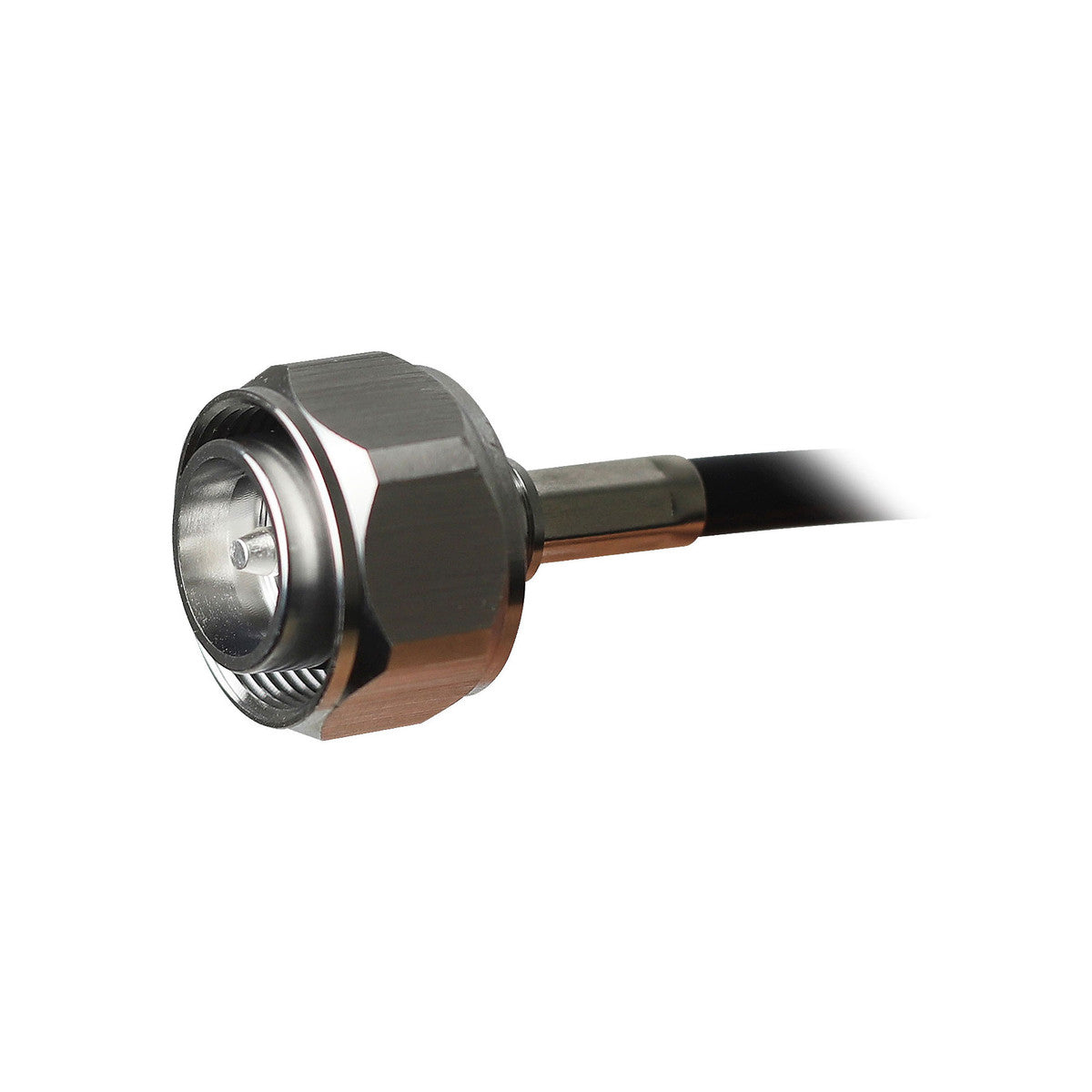

Pulse D43-121 4.3-10-Male Connector, Captive/Crimp - RG142/RG223 Cable

Pulse D43-121 4.3-10-Male Connector, Captive/Crimp - RG142/RG223 Cable

Available

Brand:
Item ID:
168018430
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
D43-121
Send Request for Quote (RFQ)
The Pulse D43-121 4.3-10-Male Connector is designed for versatile RF applications, providing a reliable connection for RG142 and RG223 cables.
Regular price $25.50
Regular price $0.00 Sale price $25.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse D43-121 4.3-10-Male Connector is designed for versatile RF applications, providing a reliable connection for RG142 and RG223 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features a captive/crimp connection for RG142 and RG223 cables.
  • The centre contact is made of brass with silver plating.
  • The outer contact and body are made of brass with trimetal plating.
  • The dielectric is made of PTFE.
  • The nut is made of brass with nickel plating.
  • It has an impedance of 50 ohms.
  • The frequency range is DC to 3 GHz.
  • The temperature range is -65°C to +165°C.
  • The connector is RoHS compliant.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections for RG142 and RG223 cables.

In the Box:

  • 1 x D43-121 4.3-10-Male Connector, Captive/Crimp.

Documents:

Pulse D43-121 Connector - Datasheet

Product Specifications

MPN D43-121
Brands Pulse
Cable supported RG142, RG223
Cable type RG142, RG223
Cable type connectors RG214
Component type Connector
Connector 4.3-10(M)
Connector end a 4.3-10 (M)
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Max frequency mhz 3000
Min frequency mhz 0
Mounting angle Straight
Prep toolset Other
Return loss db <0.1
Vswr <1.35:1
Width 2
