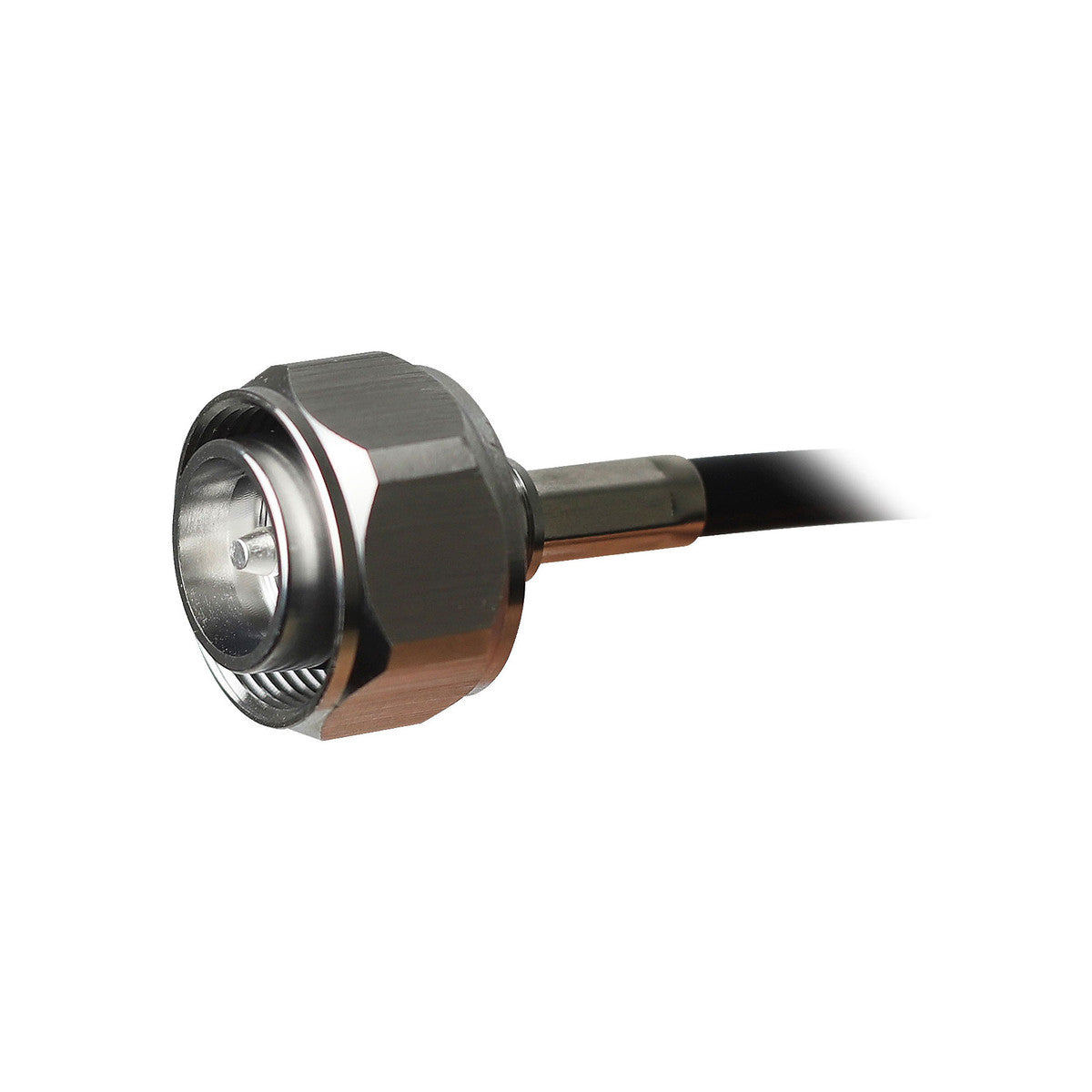

The Pulse D43-131 4.3-10-Male Connector is designed for versatile RF applications, providing a reliable connection for RG58 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

• This connector features a captive/crimp connection for RG58 cables.
• The centre contact is made of brass with silver plating.
• The outer contact and body are made of brass with trimetal plating.
• The dielectric is made of PTFE.
• The nut is made of brass with nickel plating.
• It has an impedance of 50 ohms.
• The frequency range is DC to 3 GHz.
• The insulation resistance is ≥ 5000MΩ.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections for RG58 cables.

In the Box:

• 1 x D43-131 4.3-10-Male Connector, Captive/Crimp.

Documents:

Pulse D43-131 Connector - Datasheet Pulse D43-131 Connector - Termination Instructions
