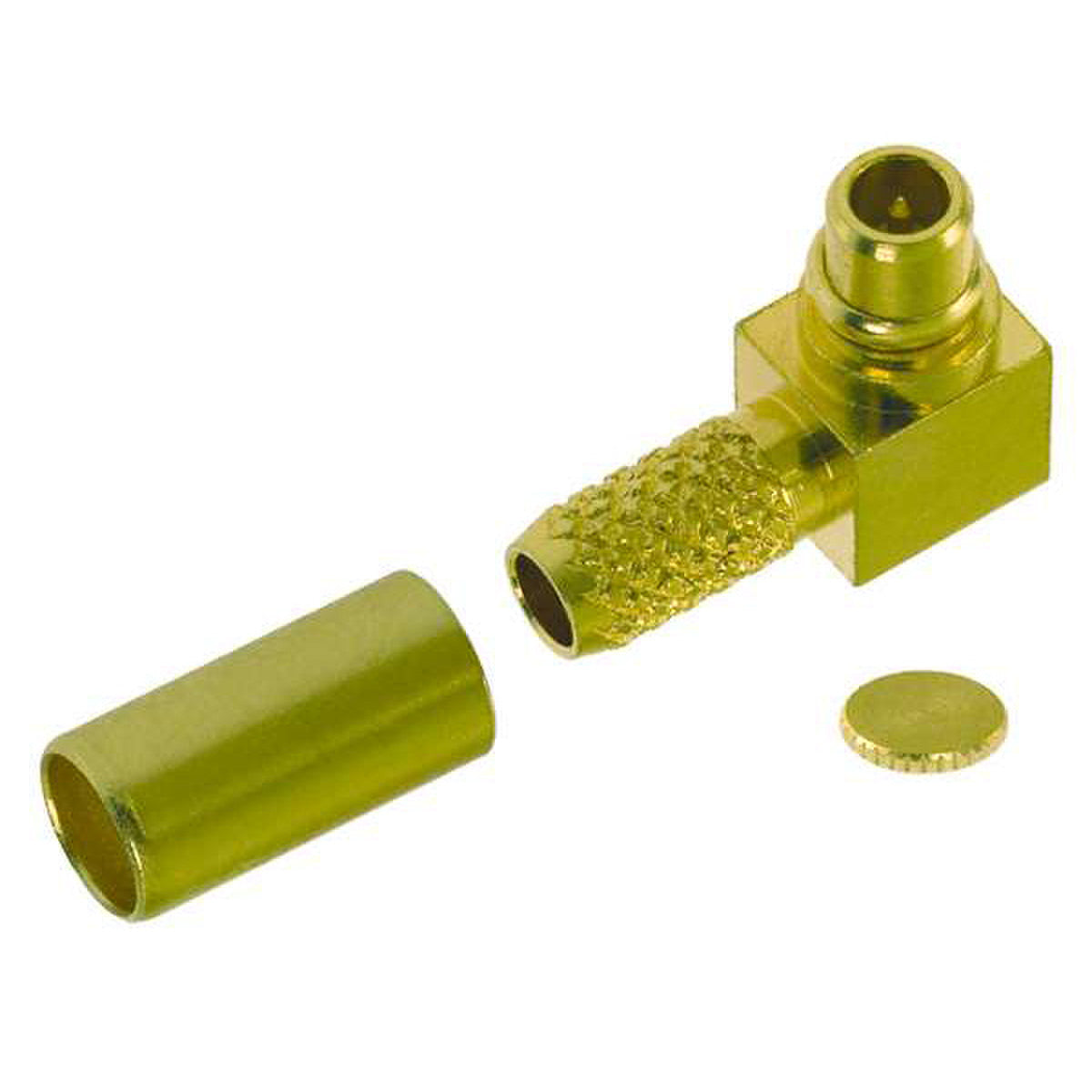

Pulse MMCX-01 Right Angle MMCX-Male Connector, Solder - RG174, RG316 and RG179 Cables

Pulse MMCX-01 Right Angle MMCX-Male Connector, Solder - RG174, RG316 and RG179 Cables

Available

Brand:
Item ID:
168018361
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
MMCX-01
Send Request for Quote (RFQ)
Pulse MMCX-01 Right Angle MMCX-Male Connector is designed for versatile RF applications, providing a reliable connection for RG174, RG316, and RG179 cables.
Regular price $9.25
Regular price $0.00 Sale price $9.25
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse MMCX-01 Right Angle MMCX-Male Connector is designed for versatile RF applications, providing a reliable connection for RG174, RG316, and RG179 cables. This right-angle connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features MMCX-Male to RG174, RG316, and RG179 cable compatibility.
  • It is designed with a right-angle configuration for space-saving installations.
  • The connector ensures optimal signal transmission with minimal loss.
  • Solder gold plated inner contact for a robust connection.
  • Crimp gold plated ferrule for ease of installation.
  • Centre contact is crimped for a secure connection.
  • Outer contact is crimped for stability.
  • Mating is achieved with a snap-on coupling.
  • Durability rated for 500 matings.
  • Coupling nut retention up to 100 lbs max.
  • Cable retention of 20 lbs min.
  • Temperature range from -65° to 165°C.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG174, RG316, and RG179 cables.

In the Box:

  • 1 x MMCX-01 Right Angle MMCX-Male Connector

Documents:

Pulse MMCX-01 Connector - Datasheet

Product Specifications

MPN MMCX-01
Brands Pulse
Cable supported RG174, RG316, RG179
Cable type RG174
Cable type connectors RG174
Centre conductor Solder
Component type Connector
Connector MMCX(M)
Connector end a MMCX (M)
Height 2
Impedance ohm 50
Inner attachment Other
Length 4
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Right Angle
Prep toolset RCT-174
Width 2
