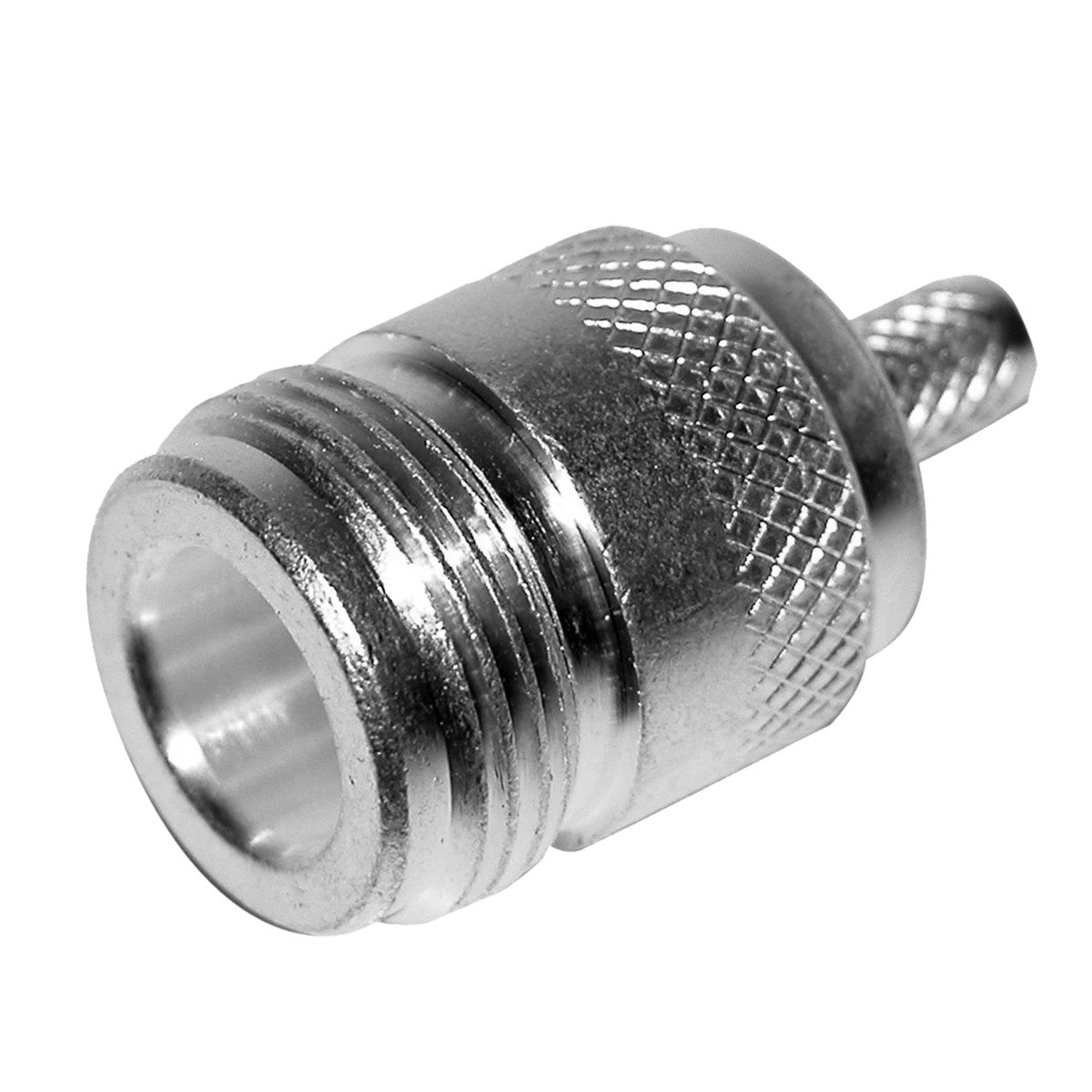

Pulse N-96A N-Female Connector, Crimp - RG142A, RG223, RG400 and RG55 Cables

Pulse N-96A N-Female Connector, Crimp - RG142A, RG223, RG400 and RG55 Cables

Available

Brand:
Item ID:
168018397
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-96A
Send Request for Quote (RFQ)
Pulse N-96A N-Female Connector is designed for high-frequency RF applications, providing a reliable connection for RG142A, RG223, RG400, and RG55 cables.
Regular price $11.60
Regular price $0.00 Sale price $11.60
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-96A N-Female Connector is designed for high-frequency RF applications, providing a reliable connection for RG142A, RG223, RG400, and RG55 cables. This connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

Product Features:

  • The inner attachment method is crimp, ensuring a secure and stable connection.
  • The connector operates over a wide frequency range from 0 MHz to 11000 MHz.
  • It has an impedance of 50 ohms, ensuring compatibility with standard RF systems.
  • The connector end is N-Female, suitable for various RF applications.
  • The mounting angle is straight, facilitating easy installation.
  • The centre conductor is captive and crimped, ensuring reliable performance.
  • The connector supports RG142A/U, RG223/U, RG400/U, and RG55/U cables.
  • The suggested prep toolset is RCT-58S.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections for RG142A, RG223, RG400, and RG55 cables.

In the Box:

  • 1 x N-96A N-Female Connector

Documents:

Pulse N-96A Connector - Datasheet

Product Specifications

MPN N-96A
Brands Pulse
Cable supported RG223/U, RG55/U, RG400/U, RG142A/U
Cable type RG223, RG172
Cable type connectors RG142
Centre conductor Captive, Crimp
Component type Connector
Connector N(F)
Connector end a N (F)
Crimp set or tool A
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Prep toolset RCT-58S
Width 2
