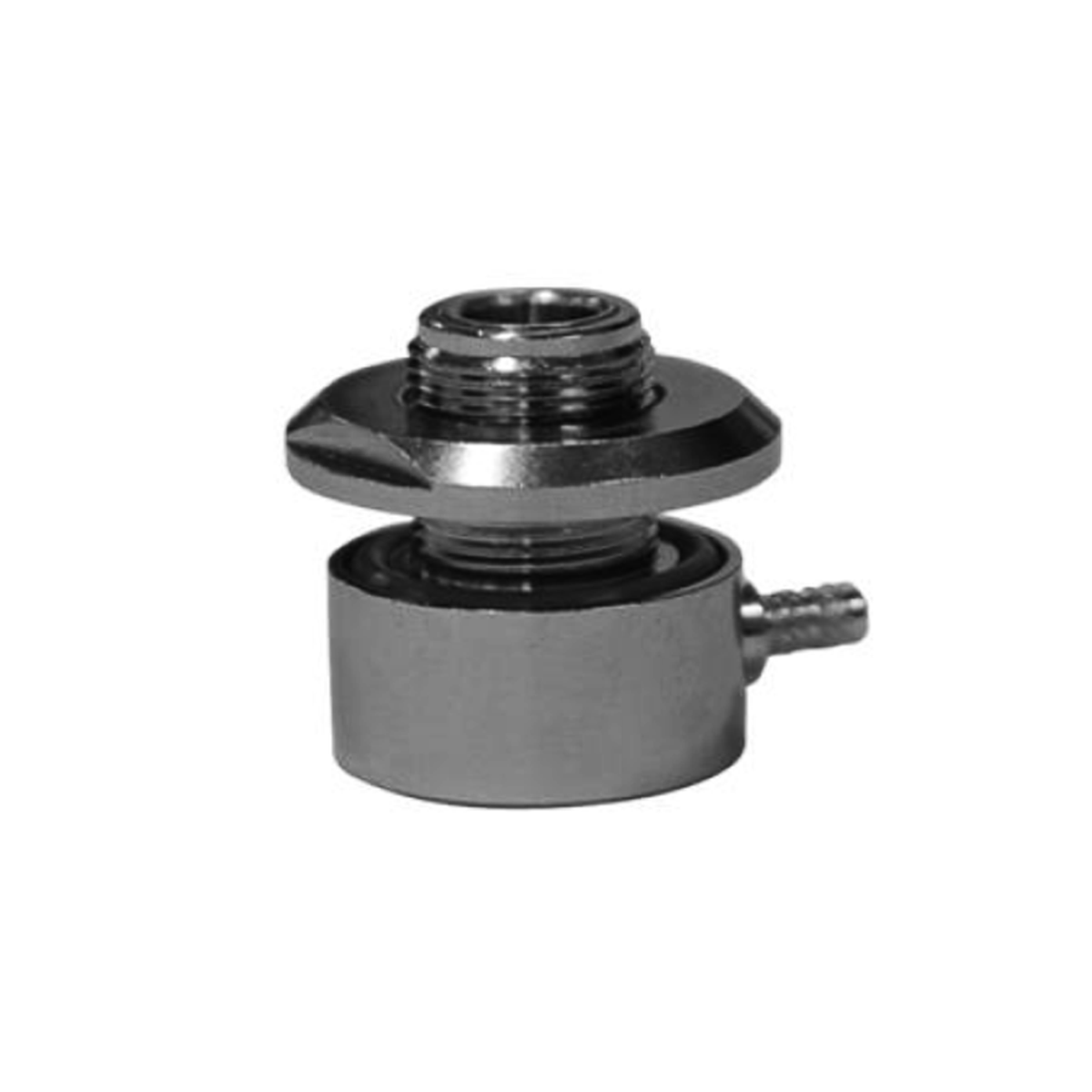

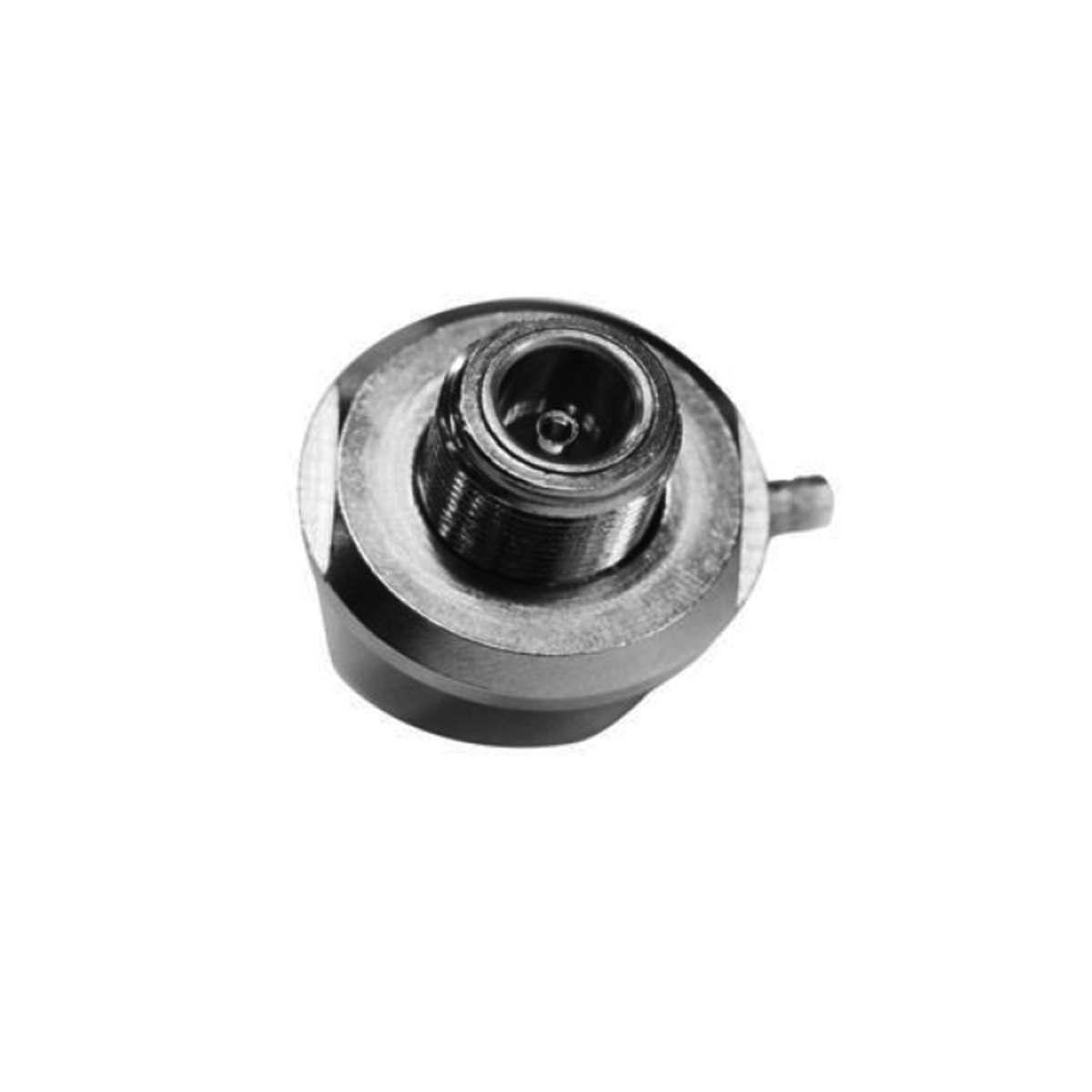

Pulse NT-MBC-WD Right Angle N-Female Connector, O-Ring Seal - RG58, RG174 and RG316 Cables

    Pulse NT-MBC-WD Right Angle N-Female Connector, O-Ring Seal - RG58, RG174 and RG316 Cables

      Product form
      Brand:
      Pulse
      Item ID:
      168018401
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      NT-MBC-WD
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Pulse NT-MBC-WD Right Angle N-Female Connector is designed for high-frequency RF applications, providing a reliable connection for RG58, RG174, and RG316 cables.

      Available

      $26.85

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse NT-MBC-WD Right Angle N-Female Connector is designed for high-frequency RF applications, providing a reliable connection for RG58, RG174, and RG316 cables. This connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

        Product Features:

        • This connector is a crimp/crimp jack for RG58, RG174, and RG316 cables.
        • It features bulkhead mounting with an O-ring seal, ensuring a secure and stable installation.
        • The ferrule hex crimp size for RG174 and RG316 cables is 3.25.
        • The ferrule hex crimp size for RG58 cables is 5.41.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections for RG58, RG174, and RG316 cables.

        In the Box:

        • 1 x NT-MBC-WD Right Angle N-Female Connector

        Documents:

        Pulse NT-MBC-WD Right Angle Connector - Datasheet

        Product Specifications

        MPN NT-MBC-WD
        Brands Pulse
        Cable retention 40 lbs min
        Cable supported RG174/U, RG58/U, RG316/U
        Cable type RG58
        Cable type connectors RG58
        Centre contact Solder
        Component type Connector
        Connector N(F)
        Connector end a N (F)
        Coupling nut retention 100lbs Max
        Durability 500 matings
        Height 2
        Impedance ohm 50
        Inner attachment Other
        Length 4
        Mating 5/8" - 24 threaded coupling
        Max frequency mhz 11000
        Min frequency mhz 0
        Mounting angle Right Angle
        Outer contact Crimp
        Prep toolset RCT-58S
        Salt spray MIL-STD-101 Test Cond B
        Temperature range -65?to 165?C
        Thermal shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
        Width 2
