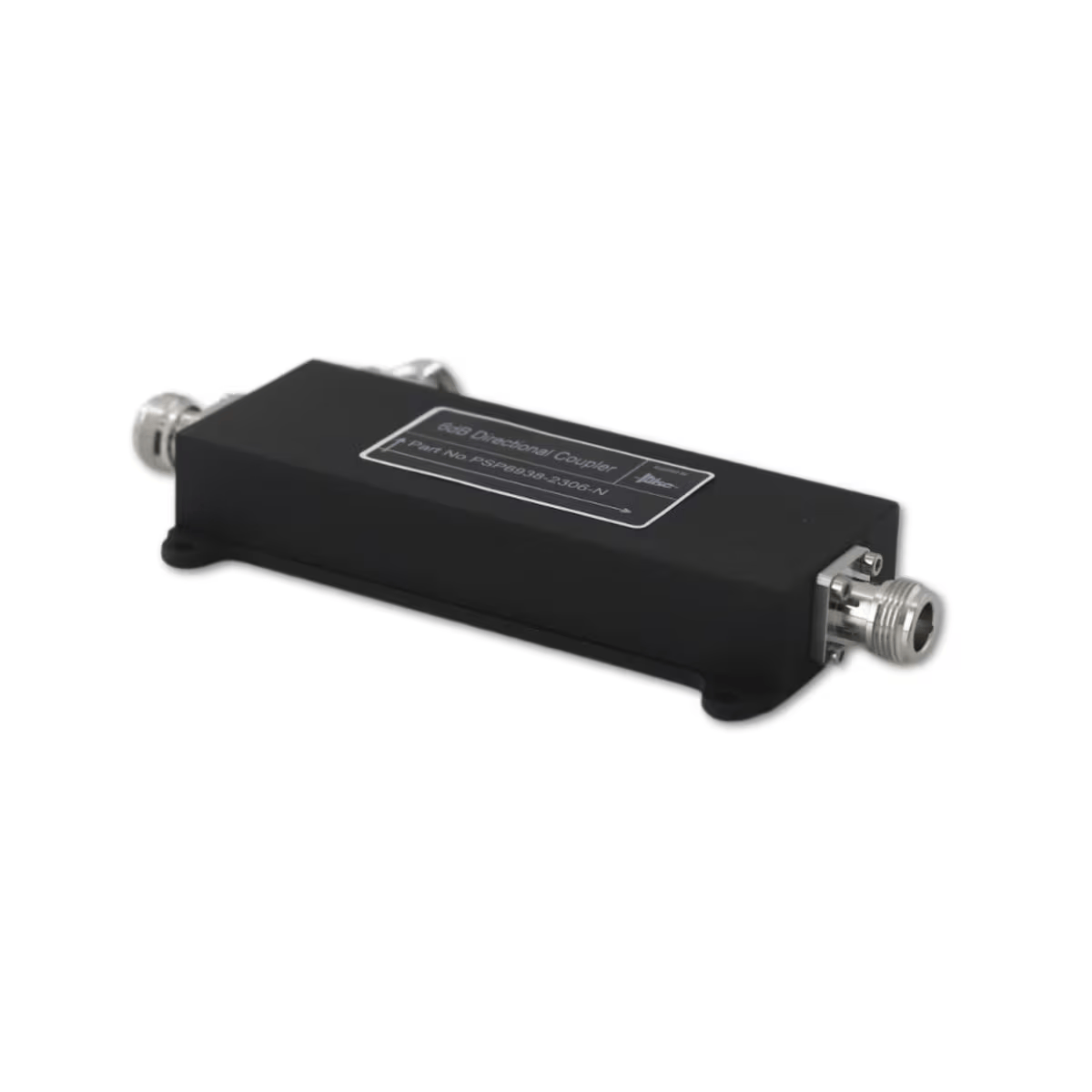

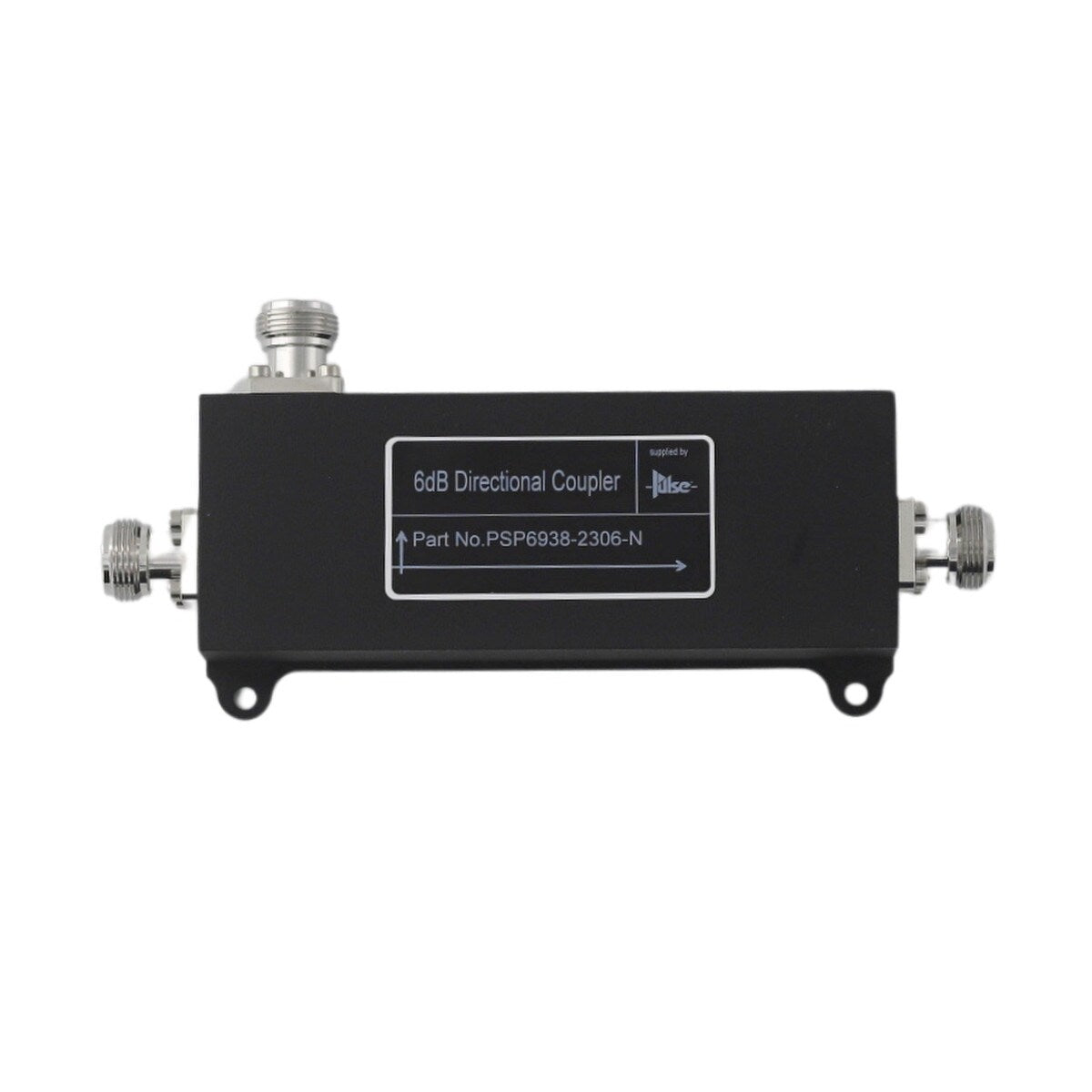

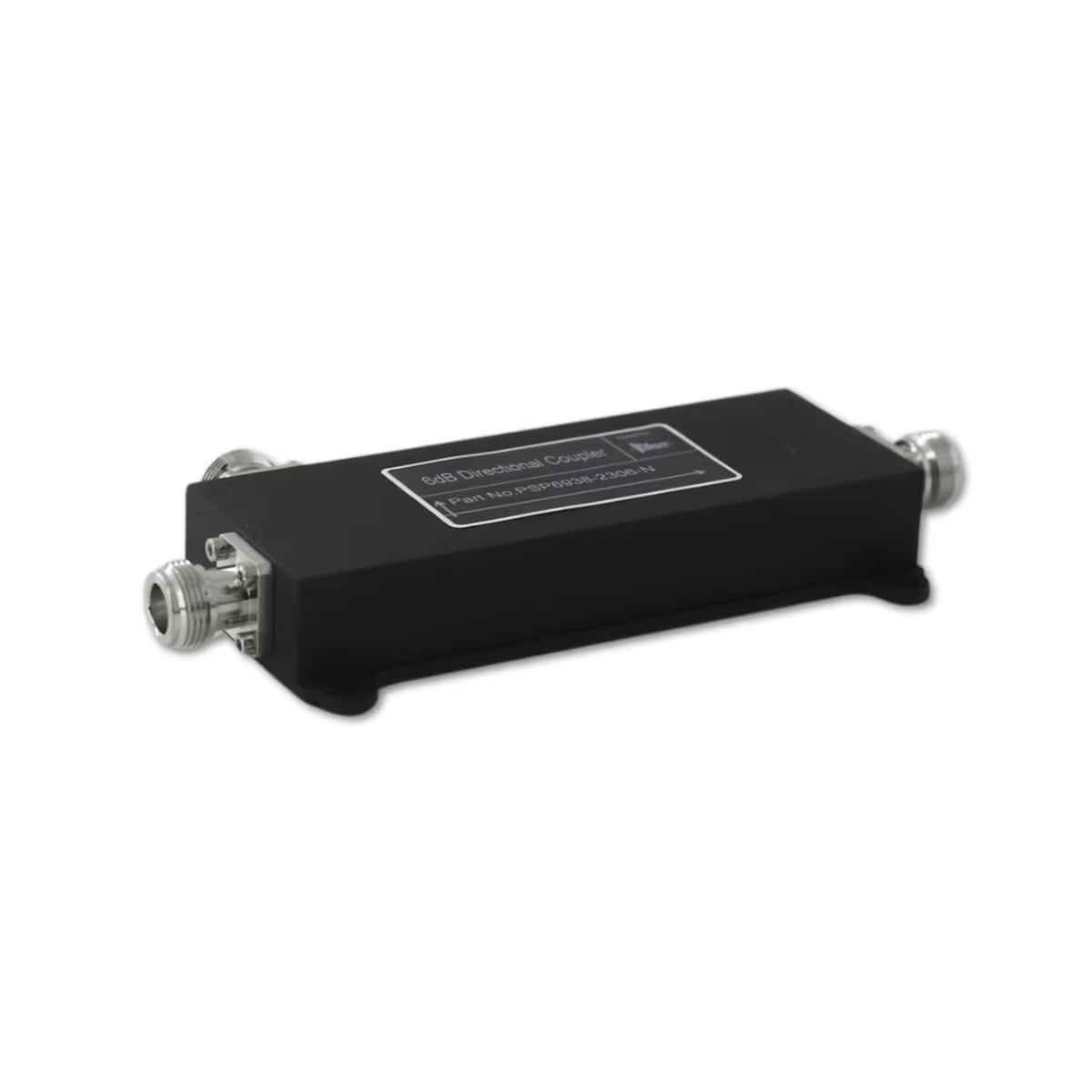

Pulse PSP6938-2306-N Wideband 3-Port Directional Coupler, 6dB, 698-3800 MHz, N-Female

Pulse PSP6938-2306-N Wideband 3-Port Directional Coupler, 6dB, 698-3800 MHz, N-Female

Available

Brand:
Item ID:
168073244
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
PSP6938-2306-N
Send Request for Quote (RFQ) Discount Offers
Pulse PSP6938-2306-N is a wideband 6dB 3-port directional coupler designed for the 698–3800 MHz frequency range, featuring N-female connectors.
Regular price $72.70
Regular price $0.00 Sale price $72.70
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse PSP6938-2306-N wideband 3-port directional coupler designed for the 698–3800 MHz frequency range, featuring N-female connectors. This coupler allows a controlled portion of RF signals to be coupled from the main transmission line to a secondary output while maintaining minimal loss and high isolation, making it ideal for RF monitoring, signal distribution, and DAS applications.

Product Features:

  • 6dB directional coupler for controlled signal tapping.
  • Wideband frequency range (698–3800 MHz) for versatile applications.
  • N-female connectors for secure and reliable connections.
  • High isolation between input and output to reduce interference.
  • Low insertion loss for efficient signal distribution.
  • Durable design with high power handling capability.

Application Areas:

  • Distributed Antenna Systems (DAS) for in-building coverage.
  • Public safety and emergency communication networks.
  • 5G, LTE, and Wi-Fi network infrastructure.
  • RF signal monitoring and power measurement.
  • Network optimization and signal distribution.

In the Box:

  • 1 x Pulse PSP6938-2306-N 3-port Directional Coupler.

Documents:

Pulse PSP6938-2306-N Directional Coupler - Datasheet

Product Specifications

MPN PSP6938-2306-N
Brands Pulse
Component type Directional Coupler
Connector N(F)
Coupled loss db 6
Frequency range mhz 698 - 3800

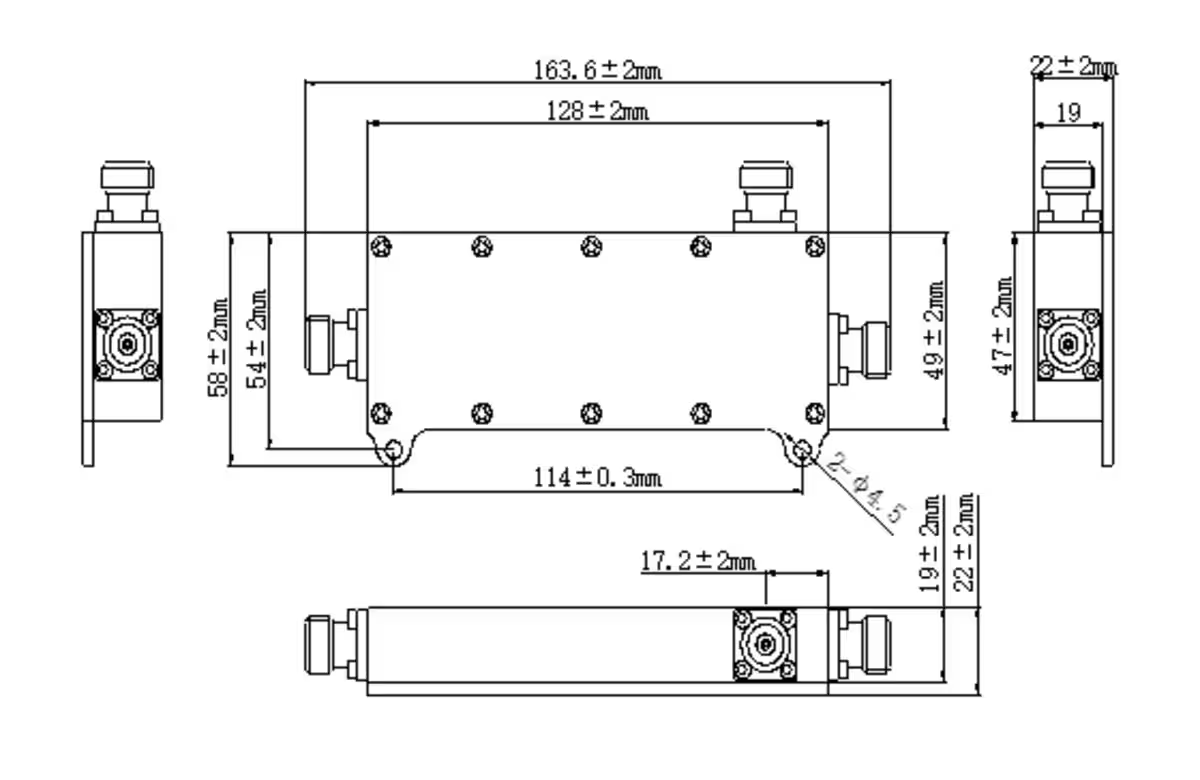

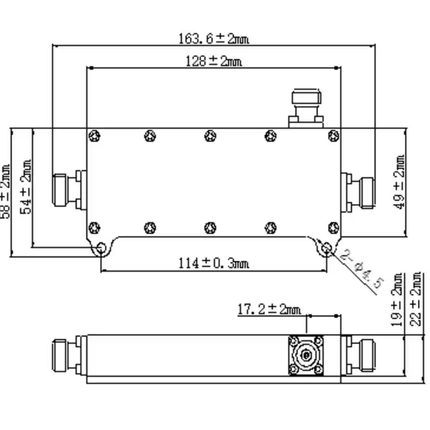

Height 10
Impedance 50 Ohm
Ip rating IP65
Length 5
Operating temperature c -25 to +65
Power w 300
Return loss db > 19
Vswr ≤ 1.25
Width 15
