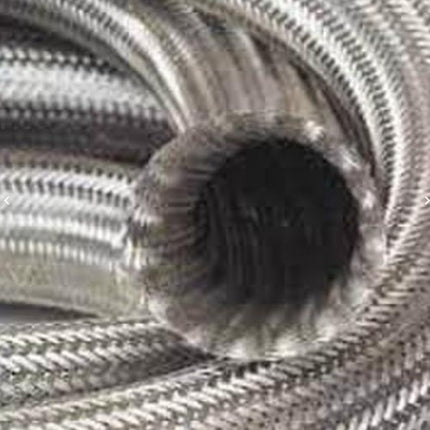

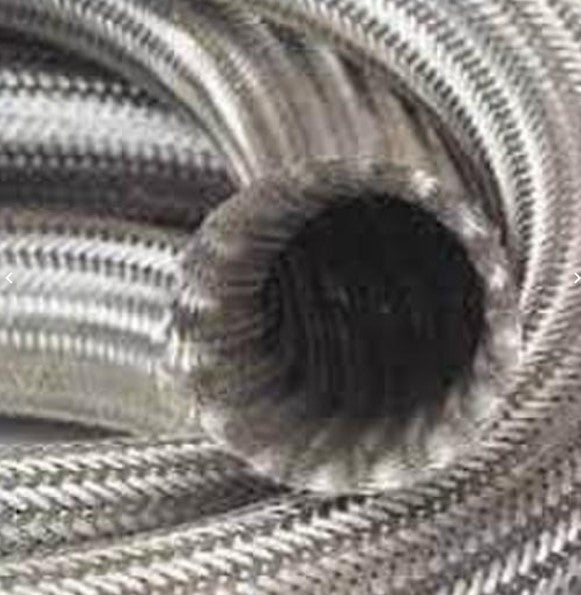

The Radcoflex CPB-16 Cable Protect is a high-performance stainless-steel braid designed to safeguard cables and hoses in industrial environments. Constructed from interwoven stainless-steel wire, this thatched hose stocking offers a flexible yet strong solution for protecting cables from abrasion, impact, and environmental exposure. Manufactured to ISO 10380 standards, this braid adapts to the shape of the cable while maintaining its structural integrity under compression or elongation. It provides a robust layer of defense without significantly affecting the bend radius of the underlying cable.
Product Features:
- Nominal bore of 16 mm fits snugly on cables of similar diameter when at rest.
- Inner diameter adjusts when compressed or stretched, enabling flexible applications.
- Available in custom lengths up to 20 meters for tailored installations.
- Manufactured to ISO 10380 standards, ensuring high quality and reliability.
- Suitable for pressure enhancement when applied directly to hose during production.
- Available in AISI 304 and 316 stainless steel wire materials.
- 16 mm Nominal Bore SS304 BA Wire Braid.
- Wire thickness options include 0.32 mm, 0.50 mm, and 0.60 mm.
Application Areas:
- Industrial cable protection and reinforcement.
- Power generation and materials handling systems.
- Mining and smelting operations.
- Defense and marine sector cable shielding.
- Telecommunications and chemical processing lines.
- Ventilation and road-making equipment applications.
In the Box:

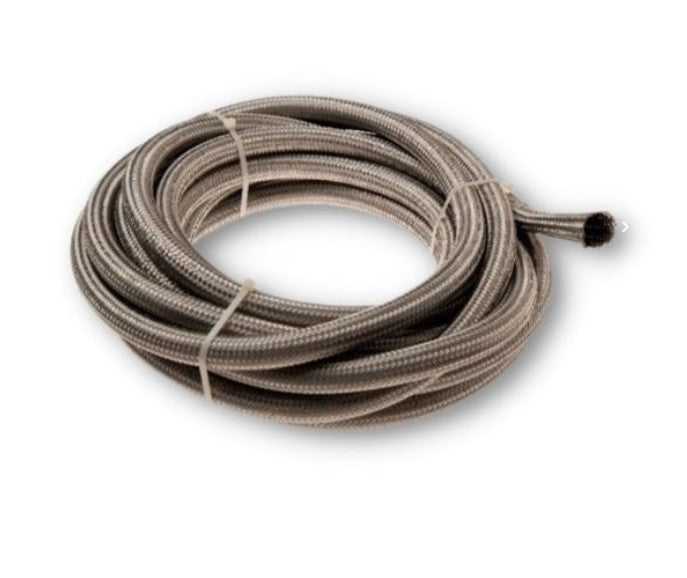

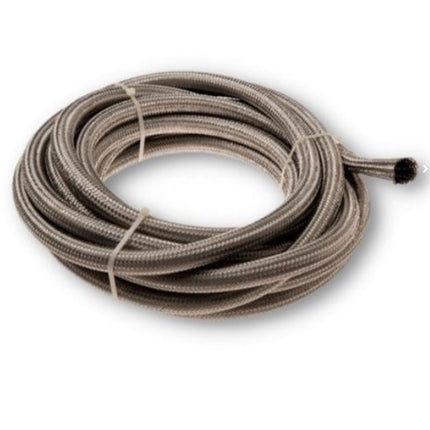

- 1 x Radcoflex CPB-16 Cable Protect Stainless Steel Braid (16 mm ID) – Custom cut to required length (up to 20m).
Note: 100m and over - available on special order (depending upon the braid diameter)
Documents:
Radcoflex Wire Braiding - Datasheet
