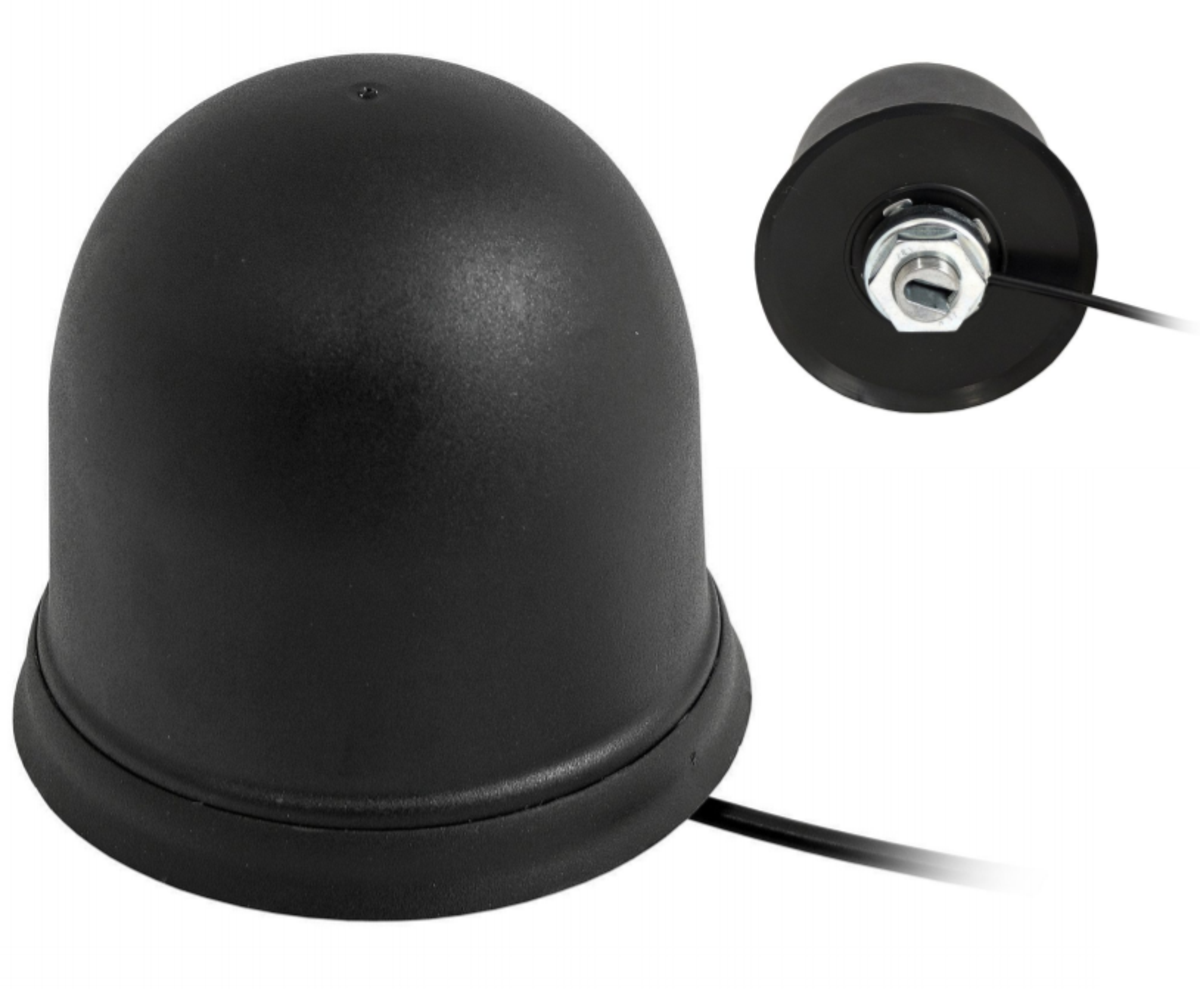

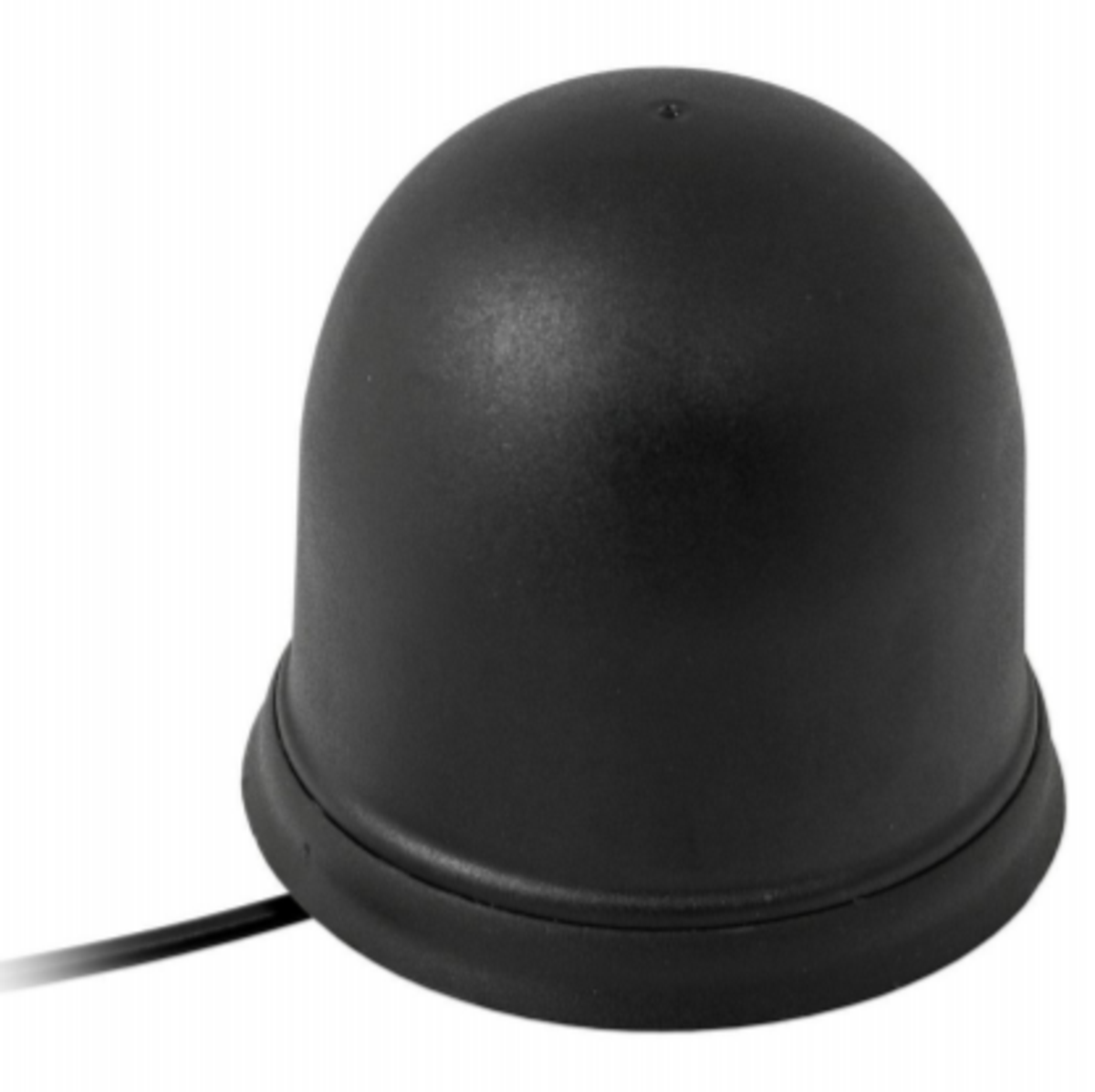

RFI's Wi-Fi dome antenna supports dual-band Wi-Fi operation on 2.4 GHz and 5 GHz bands. The antenna has an excellent gain of 4.4 dBi, 1.5m low loss LMR195 cable and SMA(M) connector termination. This antenna is ground independent and can radiate on any mounting surface like metals or plastic.

Product Features:

• Supports both 2.4 GHz and 5.0 GHz, ensuring flexible and reliable wireless connectivity across different networks.
• Can radiate effectively on any mounting surface, including metal and plastic, without performance degradation.
• Enables secure and straightforward installation with a threaded stud mount, ensuring stability in various mounting environments.
• Rated IP67, IK09, and IP69K, making it resistant to dust, water, impact, and high-pressure cleaning for reliable operation in harsh conditions.
• Engineered for longevity, its rugged construction makes it suitable for outdoor and industrial applications.
• Provides strong and stable signal transmission with Single Input Single Output (SISO) technology, enhancing connectivity performance.

Application Areas:

This Wi-Fi dome antenna is an excellent choice for using with Wi-Fi routers to provide connectivity via Wi-Fi.

In the Box:

• RFI WF-SDA-1.5M-SMA Wi-Fi Dome Antenna
• 1.5m cable
• SMA-Male connector

Documents:

RFI WF-SDA-1.5M-SMA Antenna - Datasheet
