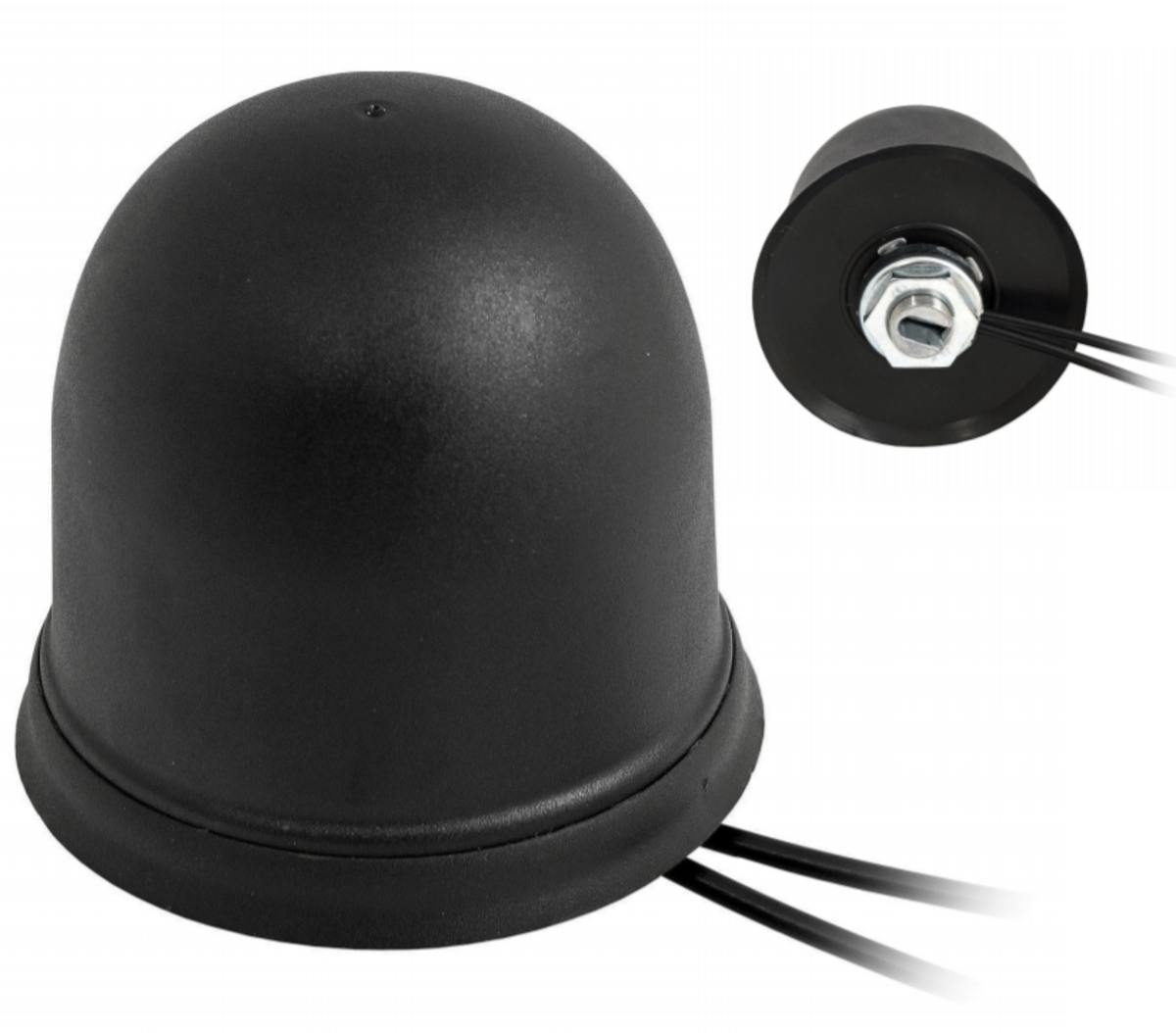

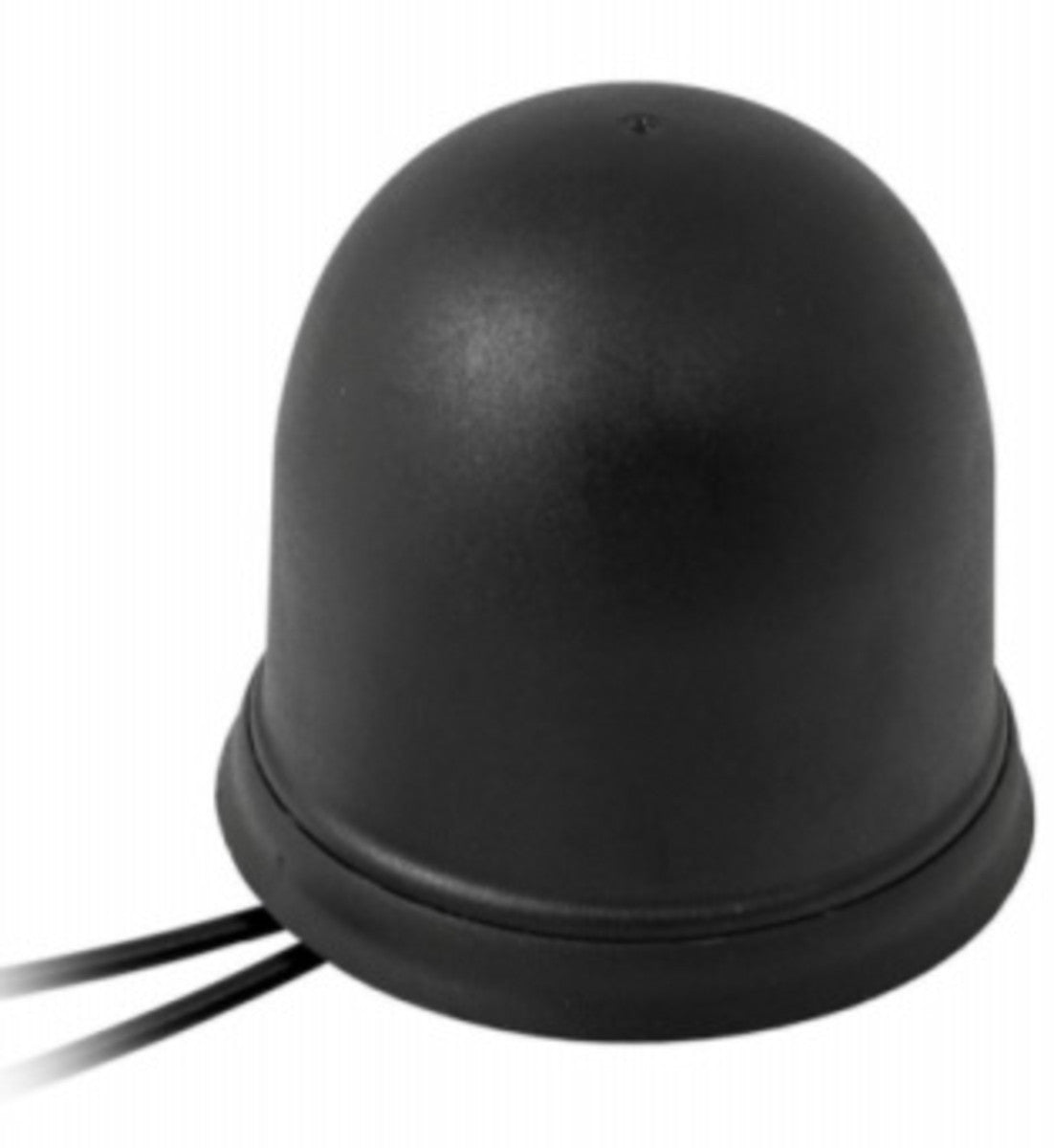

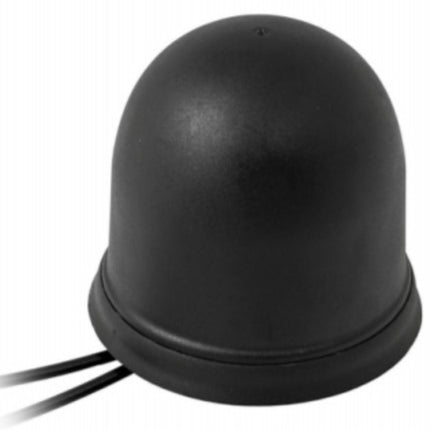

RFI 2.4/5.0 GHz WiFi MIMO Dome Antenna; 2 X 1.5m LL195 SMA(M), features a ruggedized, compact design with powerful MIMO technology. It ensures seamless performance in WiFi, Bluetooth®, ZigBee, or ISM band applications.
Features:
-
Dual-Frequency Capability: Operates efficiently at both 2.4 GHz and 5.0 GHz frequencies, delivering versatile wireless connectivity.
-
Ground-Independent: Can radiate on any mounting surface, whether metal or plastic, without compromising performance.
-
Threaded Stud Mount: Facilitates secure and easy installation, providing stability in various environments.
-
IP67, IK09, IP69K: Built to withstand challenging conditions, ensuring reliable performance even in wet or harsh environments.
-
Ruggedized Compact Design: Designed for durability and longevity, making it suitable for external applications.
-
MIMO Antenna Technology: Delivers powerful MIMO technology for enhanced signal strength and reliability.
Electrical Specifications:
Cable 1
- Band GHz: 2.4 and 5.0
- Frequency MHz: 2410-2490 and 4920-5925
- Gain dBi (Peak): 2.6 and 4.4
- VSWR: <2.0:1*
- Impedance Ω: 50
- Polarisation: Vertical
- Radiation Pattern: Omni-Directional
- Power W (max.): 25
Cable 2
- Band GHz: 2.4 and 5.0
- Frequency MHz: 2410-2490 and 4920-5925
- Gain dBi (peak): 2.4 and 4.4
- VSWR: <2.0:1
- Impedance Ω: 50
- Polarisation: Vertical
- Radiation Pattern: Omni-Directional
- Power W (max.): 25

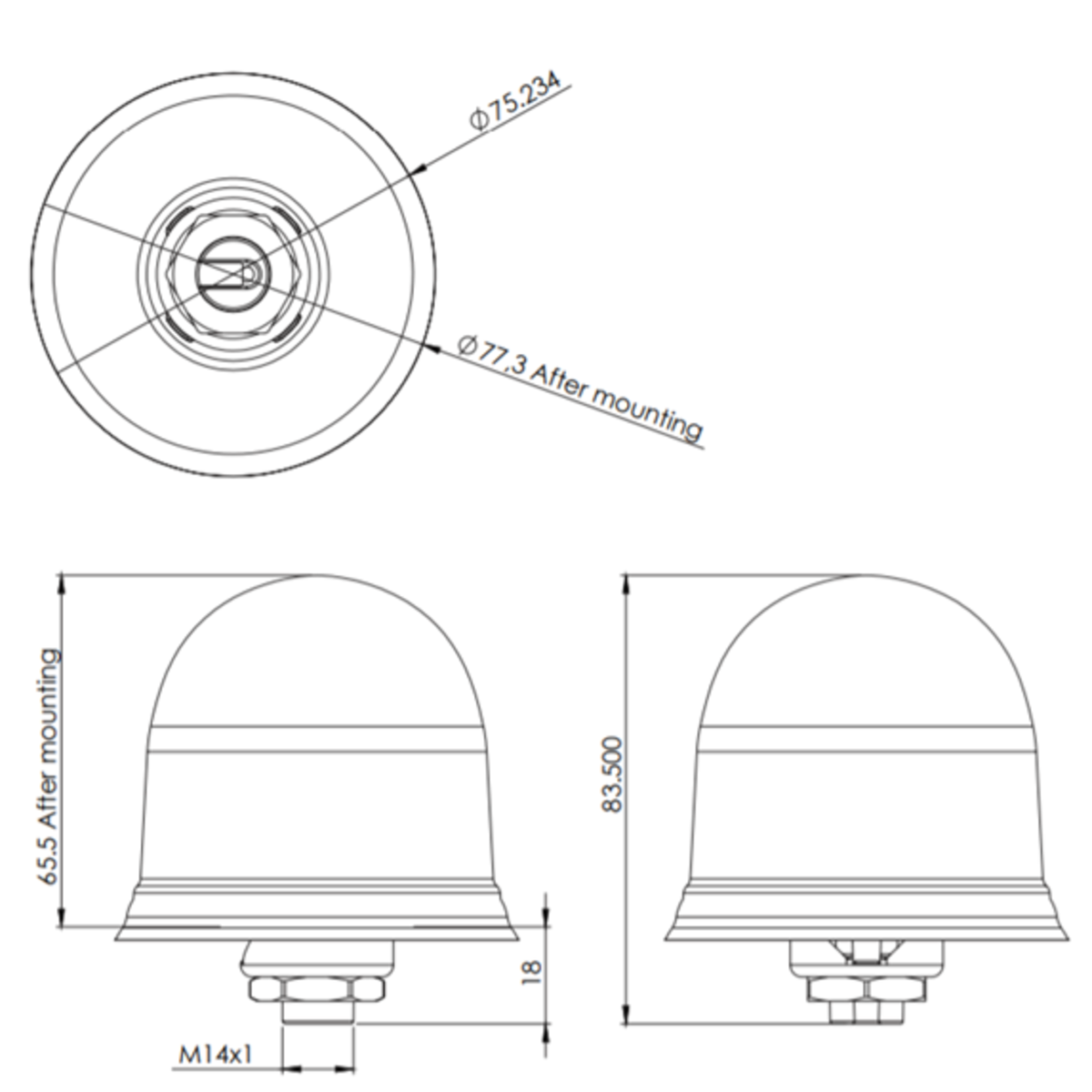

Mechanical Specifications:
- Mounting: Threaded Stud
- Dimensions mm: Ø 77.3 x 65.5
- Radome: ASA
- Radome Colour: Black
- Antenna Base: Zamak
- Gasket: TPE
- Operating Temperature °C: -40 to +85
- Certificates: IP67, IK09, IP69K
- Cable: 2 x 1.5m LMR195
- Connectors: 2 x SMA male
Documents:
RFI WF-MDA-1.5M-SMA Antenna - Datasheet
