RFI LPDA7038-11-10SMA 5G Directional Antenna, 700-3800 MHz, 11 dBi, 10m, SMA-Male

    RFI LPDA7038-11-10SMA 5G Directional Antenna, 700-3800 MHz, 11 dBi, 10m, SMA-Male

      Product form

      RFI 5G LTE 11dBi LPDA Directional Antenna (700-3800 MHz); 10m SMA(M). This wide-band log periodic antenna offers high gain directional coverage.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167029651
      MPN
      LPDA7038-11-10SMA
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $266.04

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay
        Designing an IoT network around a 4G/5G router: Teltonika, Robustel, Grandstream and the antennas that make them work Design guide Designing an IoT network around a 4G/5G router: Teltonika, Robustel, Grandstream and the antennas that make them workA designer's guide to cellular IoT networks in Australia: choosing Teltonika and Robustel routers and gateways by job, bands, I/O and failover; putting Grandstream...Read the guide

        Product Description

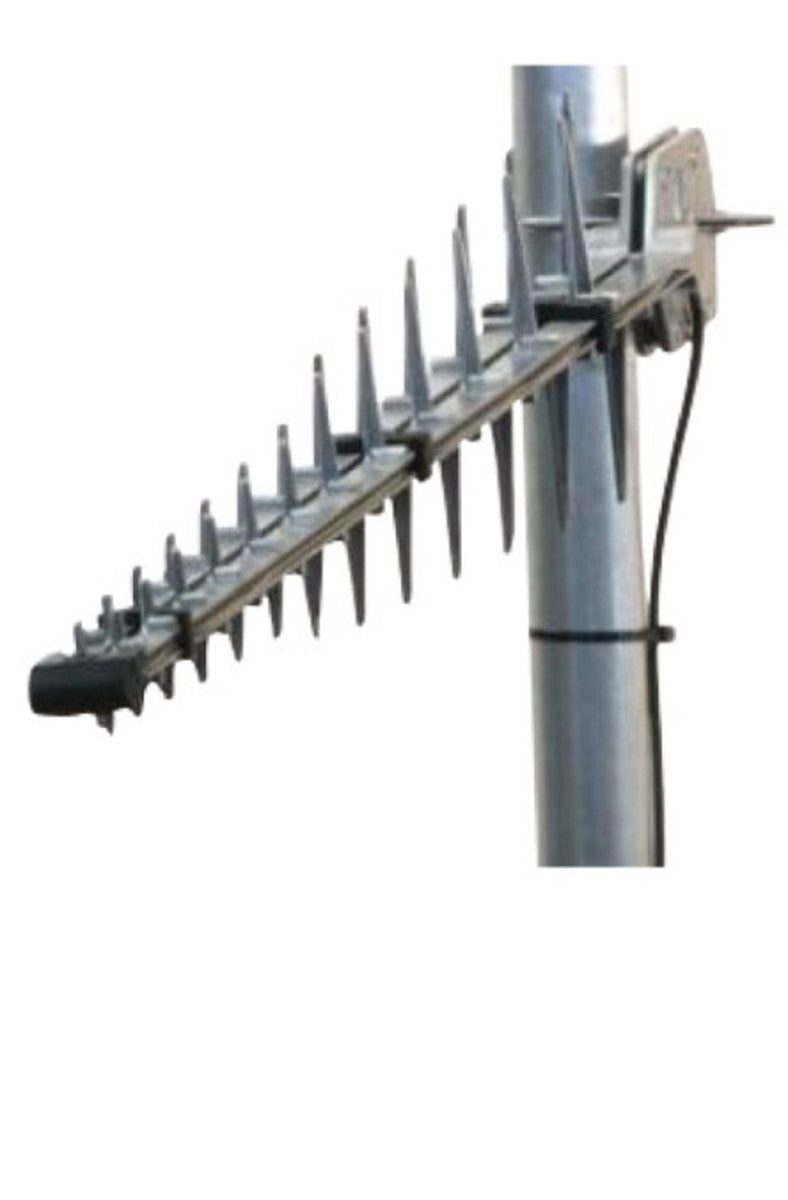

        The RFI LPDA7038-11-10SMA 5G Directional Antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60mm and includes 10. metres of HDF 195 cable terminated with SMA male connector.

        Product Features:

        • Wide band frequency range
        • Excellent front-to-back ratio
        • Easy installation using supplied hardware

        Documents:

        RFI LPDA7038-11-10SMA Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length (cm) 111.2
        Width (cm) 20
        Height (cm) 4.7
        Antenna Application Terminal Antenna
        Antenna Cable Type HDF-195
        Antenna Configuration SISO
        Antenna Port Connectors SMA (M)
        Antenna Type Directional LPDA
        Cable And Connector 10 meters cable terminated with male SMA connector
        Cable Length (m) 10
        Connector SMA(M)
        Coverage Type Directional
        Frequency [MHz] 698-960 / 1710-2700 / 3400-3800 MHz
        Frequency Band Multi-Band 700 to 3800
        Frequency Range [MHz] 1710 - 2170, 2300 - 2700, 698 - 960, 3400 - 3800
        Front Back Ratio dB 20 dB
        Horizontal Beamwidth 55
        Ingress Protection (IP) IP65
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 3800
        Max Gain (dBd/dBi) 11
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 2.3
        Mount Supported Pole mount
        Mount Supported - Detailed Pole mount
        No. of Antenna Ports 1
        Nominal Gain [dBi] 10.8 / 11 / 2.3
        Polarisation Vertical
        Power [W] 10
        Technologies Supported 4G, 5G
        Tuned Bandwidth Full
        Vertical Beamwidth 50
        VSWR <1.5:1
        Wind Gust (km/h) ?160
        Wind Gust Rating KMH 160
