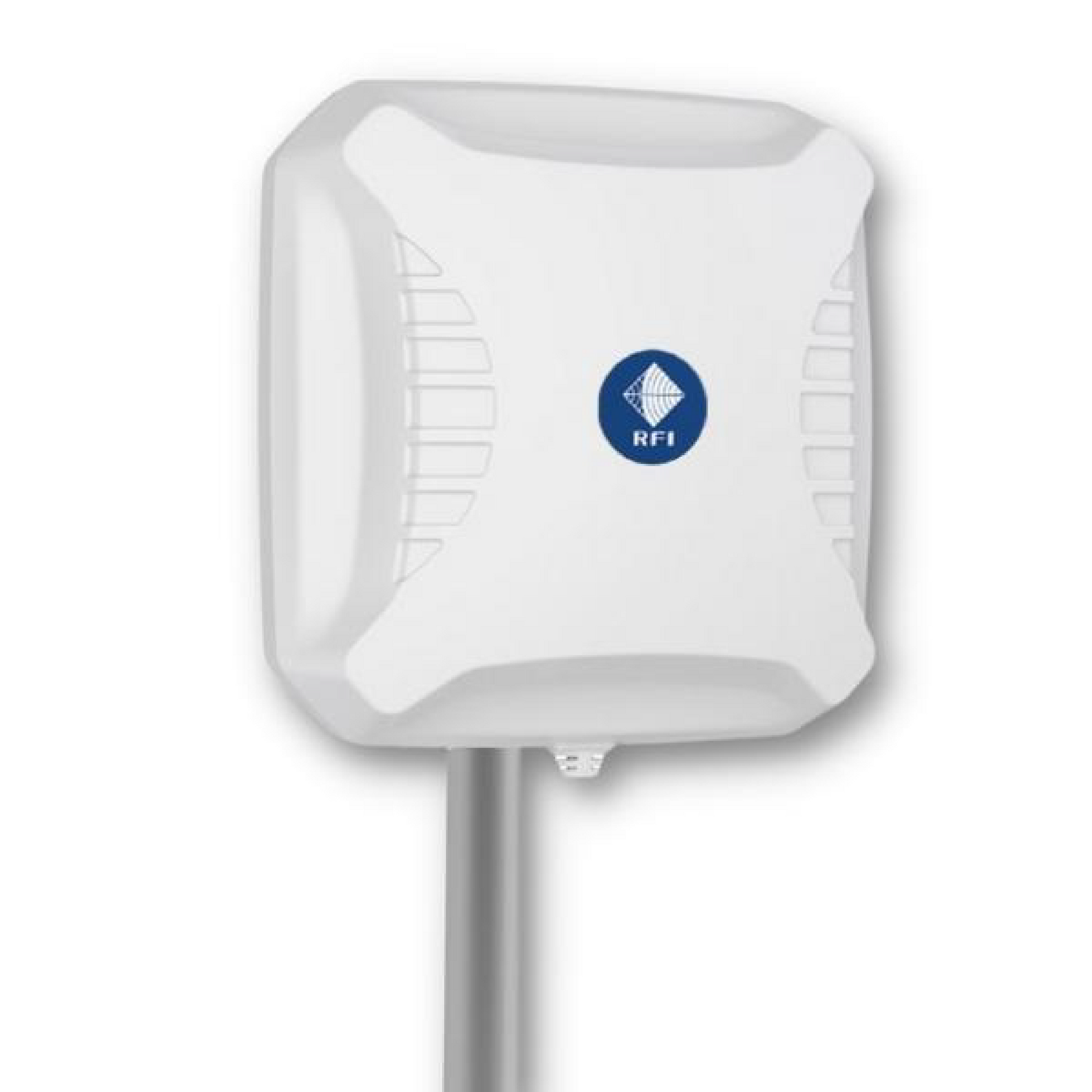

RFI LTE-XPOL-002-5G MIMO Directional Panel Antenna, 698-3800 MHz, 10m, SMA-Male

RFI LTE-XPOL-002-5G MIMO Directional Panel Antenna, 698-3800 MHz, 10m, SMA-Male

Available

Brand:
Item ID:
168014277
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LTE-XPOL-002-5G
Send Request for Quote (RFQ) Discount Offers
RFI 5G LTE 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin HFT195 SMA(M) is the 3rd generation of this popular Cross Polarised (LTE-XPOL-002-V2)
Regular price $419.00
Regular price $0.00 Sale price $419.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss RG58 cable terminated with SMA male connectors.

Features:

- 2-3dB higher gain over all the bands compared to “V2”  - New 3400MHz-3800MHz, 5G band with 11dBi gain  - Consistent broadband performance  - X-Polarised 2x2 MIMO antenna  - Wall or pole mountable  - Lightweight & rugged  - Weatherproof & waterproof (IP65)  - High pattern consistency across bands for 4G/5G carrier aggregation

Documents:

RFI XPOL2 5G Antenna - Datasheet RFI XPOL2 5G Antenna - Installation Guide

Product Specifications

MPN LTE-XPOL-002-5G
Antenna application Base Station Antenna
Antenna cable type HDF-195
Antenna port connectors SMA (M)
Antenna type Directional MIMO
Brands RFI
Cable length m 10
Connector SMA(M)
Construction Cream ABS
Coverage type Omni-directional
Frequency band Multi-Band 700-2700 MHz
Height 9.5
Ingress protection ip IP65
Installation type External mounting
Length 26
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 11
Mimo support Yes
Min frequency mhz 698
Min gain dbd dbi 9
Mount supported Wall mount, Pole mount
Mount supported detailed Wall mount, Pole mount
No of antenna ports 2
Nominal gain dbi 9 dBi @ 698-960MHz, 10 dBi @ 1710-2700MHz, 11 dBi @ 3400-3800MHz
Power w 20
Technologies supported 2G, 3G, 4G, 5G
Termination 10m of RG58 fitted with SMA (M) connector per feed
Tuned bandwidth Full. No tuning required
Vswr < 1.5:1 (over 95% of the band)
Width 15
