RFI CDQ8199-W 5G Vehicle Antenna, 8.5 dBi, 5m, SMA-Male - White

    RFI CDQ8199-W 5G Vehicle Antenna, 8.5 dBi, 5m, SMA-Male - White

      Product form
      Brand:
      RFI
      Item ID:
      167028522
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      CDQ8199-W
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI 5G LTE 8.5 dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - White. It is ideal for use with cellular modems & active repeaters, when signal is poor.

      Available

      $238.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

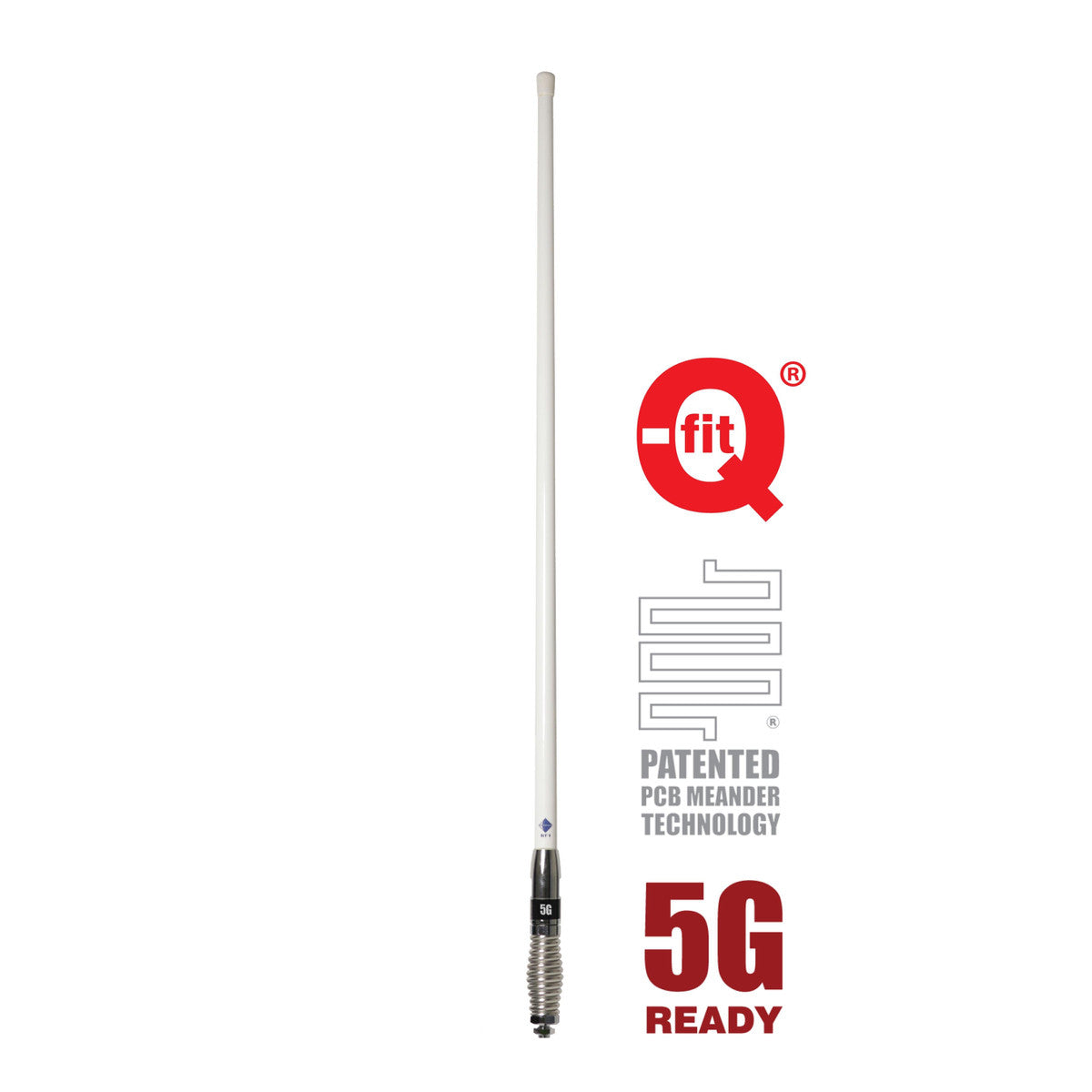

        RFI 5G LTE 8.5 dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - White

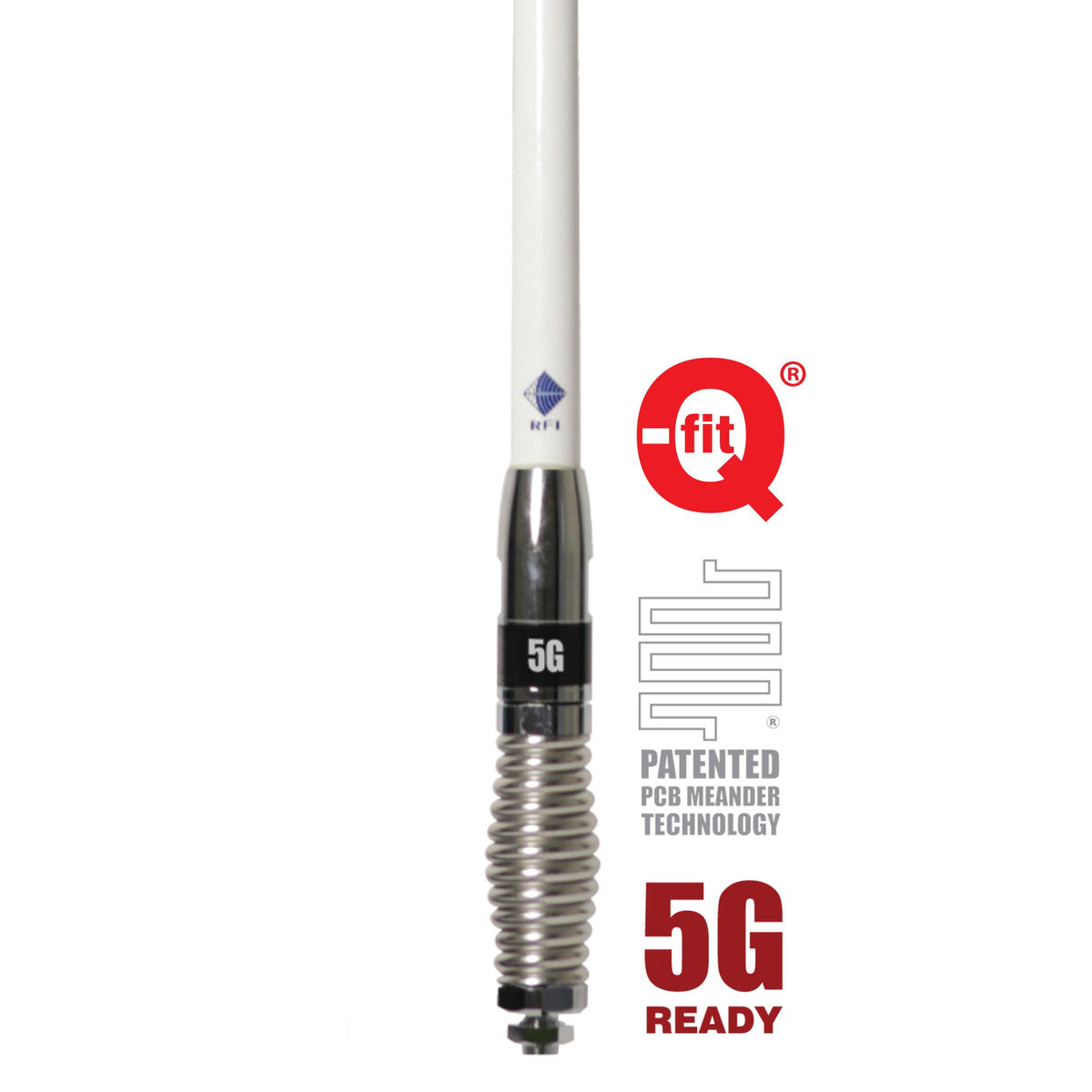

        It is our flagship product and is designed for the harsh Australian conditions. Includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.

        Key Features:

        • Patented PCB based collinear design offering the ultimate in pattern and gain stability.
        • Ideal for new 5G/LTE networks with true multi-band coverage.
        • High gain across all bands making it suiting fringe and rural applications.
        • Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.

        Documents:

        RFI CDQ8199-W Antenna - Datasheet
        RFI CDQ8199-W Antenna - Specifications
        RFI CDQ8199-W Antenna - Installation Guide

        Product Specifications

        MPN CDQ8199-W
        Antenna application Vehicle Antenna
        Antenna cable type RG58
        Antenna port connectors SMA (M)
        Antenna type Ground Independent
        Brands RFI
        Cable and connector 5m of 9006 low loss cable terminated with SMA male connector
        Cable length m 5
        Coverage type Omni-directional
        Frequency band Multi-Band 700 to 2700
        Frequency mhz 698-960, 1710-2170 & 2300-2700MHz
        Frequency range mhz 1710 - 2170, 2300 - 2700, 698 - 960
        Height 3
        Installation type Vehicle mounting
        Length 99
        Low pim No
        Max frequency mhz 3800
        Max gain dbd dbi 8.5
        Mimo support No
        Min frequency mhz 698
        Min gain dbd dbi 4.5
        Mount supported Spring base
        Mount supported detailed Spring base
        Mounting 16mm mounting hole
        No of antenna ports 1
        Nominal gain dbi 8.5 / 4.5 / 5.5
        Packaging Retail Hang Sell
        Power w 10
        Radome diameter mm 22.5 - 15.6 Tapered
        Technologies supported 4G, 5G
        Tuned bandwidth Full
        Vswr <2.5:1
        Whip material Fibreglass radome
        Width 3
