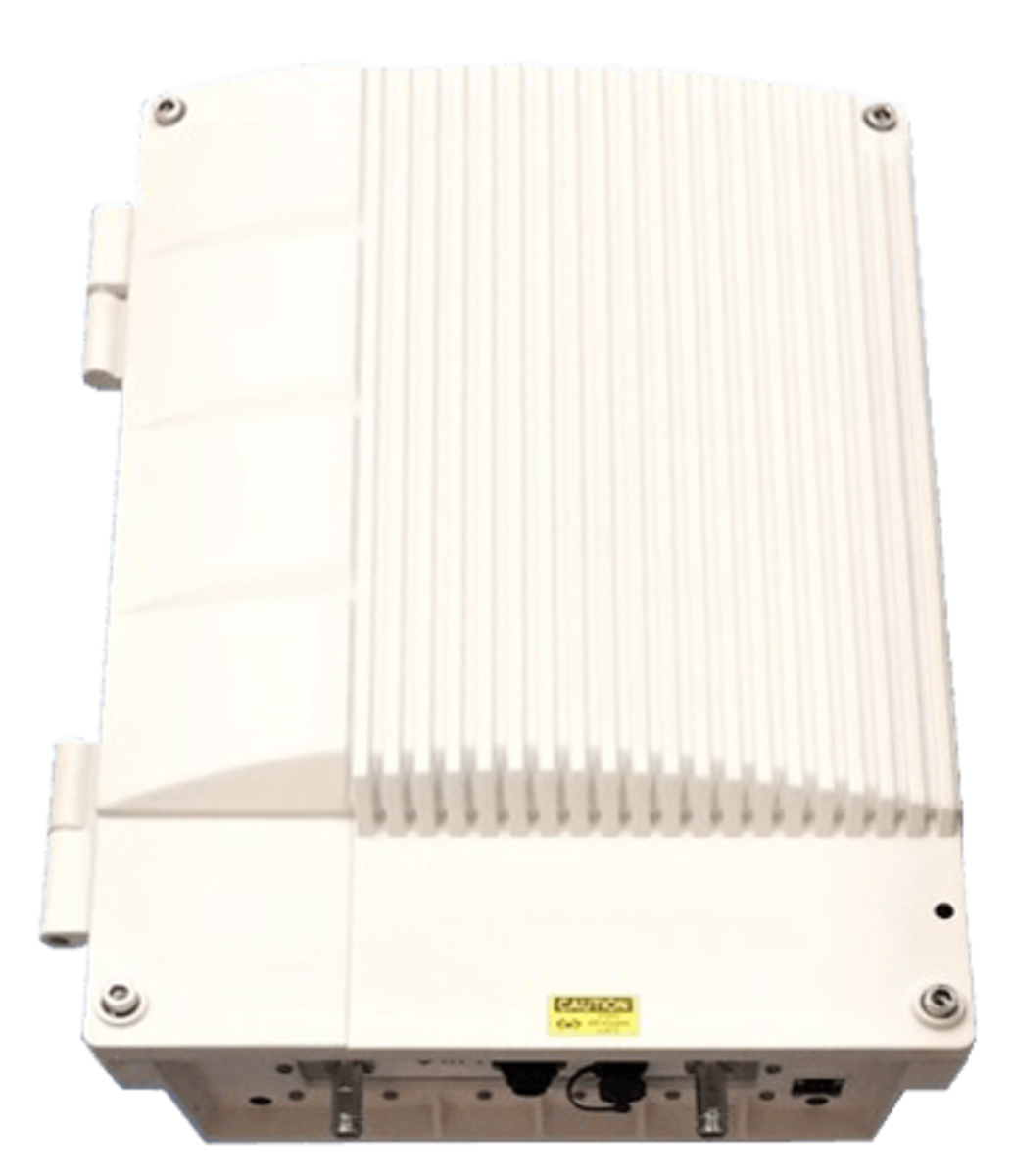

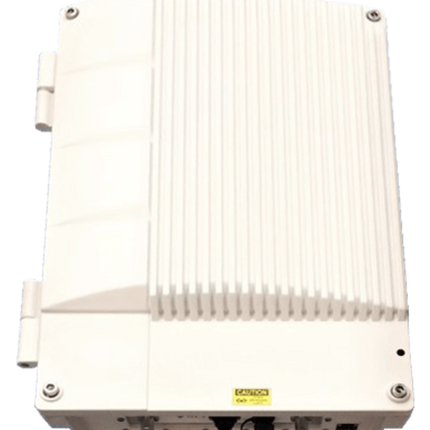

RFI 800 MHz Bi-Directional Amplifiers (BDAs)
The standard model can pass a 5MHz window in each. The BDA’s RF-transparent operation is compatible with most analogue and digital technologies. Communications content is passed without demodulation and network protocol features such as encryption and over-the-air-rekeying are also passed securely. The standard architecture of this BDA provides user-friendly, convenient and efficient in-field maintenance.The BDA is available in standard and high-power variants with optional RF over Fibre interface and multiple power supply and battery backup options.
Features:
- Analogue and Digital compatible – supports most network technologies
- Maximum +40 dBm output power (1 carrier, high power models)
- Adjustable Gain of up to 80 dB* (High power models)
- 5 MHz Pass Bandwidth and 25-40 MHz Minimum Tx/Rx Separation*
- Compact IP-rated wall/pole mountable enclosure
- Multiple Power Supply Options (12 VDC, 24 VDC, 48 VDC and 90-264 VAC)
- Available in Off-Air and Fibre-Fed models
- Optional Battery Backup
- Communications port for configuration and monitoring
*Alternative frequencies, passbands, Minimum Tx/Rx separations and higher gains are available.
Documents:
RFI 800MHz Bi-Directional Amplifier - Datasheet
