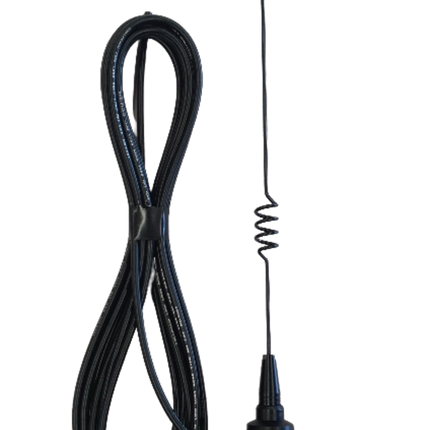

RFI SW1685 Roof Mount Antenna, 890-960 MHz, 3 dB, MB14, 5m, No Connector

    RFI SW1685 Roof Mount Antenna, 890-960 MHz, 3 dB, MB14, 5m, No Connector

      Product form
      Brand:
      RFI
      Item ID:
      168014334
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      SW1685
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI 900 MHz 3dB Roof Mount Antenna (890-960 MHz); MB14 5m No Connector provide strongest reception and reliable performance of any cellular mobile antenna.

      Available

      $115.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        At the heart of each RFI roof mount antenna is the MB14 base. The base (SW1685) is intricately constructed, much like a coaxial connector. The precisely controlled termination is reliable electrically and mechanically provides a superb match resulting in a broad bandwidth.

        Features:

        • Roof mounting for optimum performance
        • Black finish will not scratch or peel
        • Limited lifetime warranty
        • SW1495 (CDMA only) offers 5 dB gain for maximum range in country or fringe areas
        • SW1486/1686 Magnetic base versions available for portable applications complete with protective rubber boot

        Documents:

        RFI SW1685 Antenna - Datasheet RFI SW1685 Antenna - Installation Guide

        Product Specifications

        MPN SW1685
        Antenna application Vehicle Antenna
        Antenna cable type Cellfoam
        Antenna port connectors No connector
        Antenna type Ground Dependent
        Band 890 - 960MHz
        Brands RFI
        Cable and connector FME or TNC connector, Supplied with 5.0m Cellfoam? cable. Please specify mini UHF
        Cable length m 5
        Coverage type Omni-directional
        Frequency band ISM Bands 300 MHz & 400 MHz & 8900 MHz
        Frequency mhz 890-960
        Height 5
        Installation type External mounting
        Length 36
        Low pim No
        Max frequency mhz 960
        Max gain dbd dbi 3
        Mimo support No
        Min frequency mhz 890
        Min gain dbd dbi 3
        Mount supported Wall mount, Roof mount
        Mount supported detailed MB14 base
        No of antenna ports 1
        Nominal gain dbq 3
        Power w 50
        Technologies supported UHF
        Tuned bandwidth Entire specified band @ <1.9:1 VSWR
        Tuning Supplied pre-tuned
        Vswr <1.9:1
        Whip length mm 340
        Whip material 17-7 PH stainless steel with brass ferrule, black finish
        Width 5
