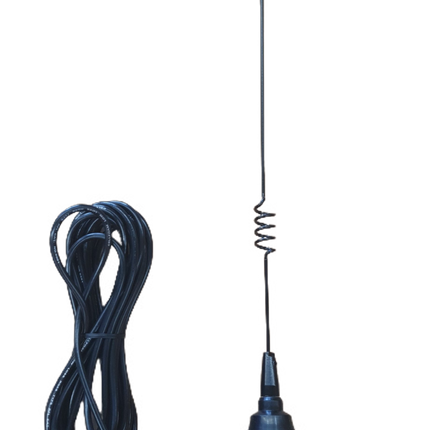

RFI SW1686 Magnetic Base Antenna, 890-960 MHz, 3 dB, 5m, No Connector

    RFI SW1686 Magnetic Base Antenna, 890-960 MHz, 3 dB, 5m, No Connector

      Product form
      Brand:
      RFI
      Item ID:
      168014335
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      SW1686
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI 900 MHz 3dB Magnetic Base Antenna (890-960 MHz); 5m No Connector provide strongest reception and reliable performance of any cellular mobile antenna.

      $195.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      At the heart of each RFI roof mount antenna is the MB14 base. The base (SW1686) is intricately constructed, much like a coaxial connector. The precisely controlled termination is reliable electrically and mechanically provides a superb match resulting in a broad bandwidth.

      Features:

      • Roof mounting for optimum performance
      • Black finish will not scratch or peel
      • Limited lifetime warranty
      • SW1495 (CDMA only) offers 5 dB gain for maximum range in country or fringe areas
      • SW1486/1686 Magnetic base versions available for portable applications complete with protective rubber boot

      Documents:

      RFI SW1686 Antenna - Datasheet

      Product Specifications

      MPN SW1686
      Antenna application Vehicle Antenna
      Antenna cable type Cellfoam
      Antenna port connectors No connector
      Antenna type Ground Dependent
      Band 824 - 896MHz
      Brands RFI
      Cable and connector FME or TNC connector, Supplied with 5.0m Cellfoam? cable. Please specify mini UHF
      Cable length m 5
      Coverage type Omni-directional
      Frequency band ISM Bands 300 MHz & 400 MHz & 8900 MHz
      Frequency mhz 890-960
      Height 5
      Installation type Vehicle mounting
      Length 40
      Low pim No
      Max frequency mhz 960
      Max gain dbd dbi 3
      Mimo support No
      Min frequency mhz 890
      Min gain dbd dbi 3
      Mount supported Magnetic base
      Mount supported detailed Magnetic base
      No of antenna ports 1
      Nominal gain dbq 5
      Power w 50
      Technologies supported UHF
      Tuned bandwidth Entire specified band @ <1.9:1 VSWR
      Tuning Supplied pre-tuned
      Vswr <1.9:1
      Whip length mm 370
      Whip material 17-7 PH stainless steel with brass ferrule, black finish
      Width 5
