RFI SW1605 Roof Mount Antenna, 890-970 MHz, 2 dBi, MB14, 5m, No Connector

    RFI SW1605 Roof Mount Antenna, 890-970 MHz, 2 dBi, MB14, 5m, No Connector

      Product form
      Brand:
      RFI
      Item ID:
      168014333
      MPN:
      SW1605
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

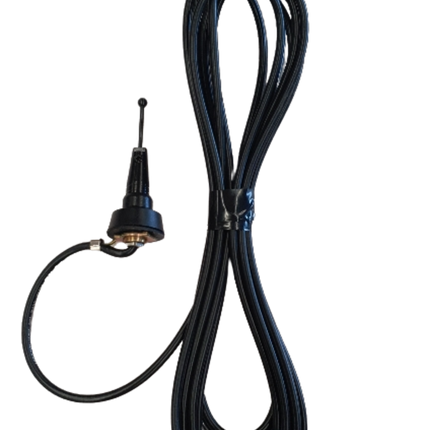

      RFI 900 MHz Unity Roof Mount Antenna (890-970 MHz); MB14 5m No Connector provide strongest reception and reliable performance of any cellular mobile antenna

      Available

      $112.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

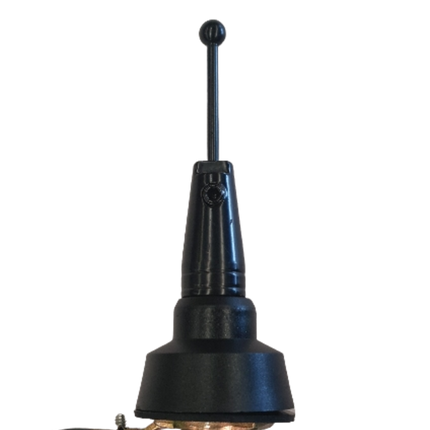

        At the heart of each RFI roof mount antenna is the MB14 base. The base (SW1605) is intricately constructed, much like a coaxial connector. The precisely controlled termination is reliable electrically and mechanically provides a superb match resulting in a broad bandwidth.

        Features:

        • Roof mounting for optimum performance
        • Black finish will not scratch or peel
        • Limited lifetime warranty
        • SW1495 (CDMA only) offers 5 dB gain for maximum range in country or fringe areas
        • SW1486/1686 Magnetic base versions available for portable applications complete with protective rubber boot

        Documents:

        RFI SW1605 Antenna - Datasheet RFI SW1605 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 10
        Width 5
        Height 5
        Antenna Application Vehicle Antenna
        Antenna Cable Type Cellfoam
        Antenna Port Connectors No connector
        Antenna Type Ground Dependent
        Band 890 - 960MHz
        Cable And Connector FME or TNC connector, Supplied with 5.0m Cellfoam? cable. Please specify mini UHF
        Cable Length (m) 5
        Coverage Type Omni-directional
        Frequency [MHz] 890-960
        Frequency Band ISM Bands 300 MHz & 400 MHz & 8900 MHz
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 960
        Max Gain (dBd/dBi) 1
        MIMO Support No
        Min Frequency (MHz) 890
        Min Gain (dBd/dBi) 1
        Mount Supported Wall mount, Roof mount
        Mount Supported - Detailed MB14 base
        No. of Antenna Ports 1
        Nominal Gain [dBq] Unity
        Power [W] 50
        Technologies Supported UHF
        Tuned Bandwidth Entire specified band @ <1.9:1 VSWR
        Tuning Supplied pre-tuned
        VSWR <1.9:1
        Whip Length mm 65
        Whip Material 17-7 PH stainless steel with brass ferrule, black finish
