RFI AM Receiver Multicoupler (DC Inj.) 6-Port

This product is designed for use with RFI’s HF-COL active receive-only antenna and includes an integral DC power injector for supplying power to the HF-COL via its coaxial feeder cable.  An integral common mode noise filter is also included for induced noise rejection and an internal divider provides separate AM outputs for distributing received signals to multiple AM rebroadcast head-end units, AM and HF radio receivers, or for use as test port(s).

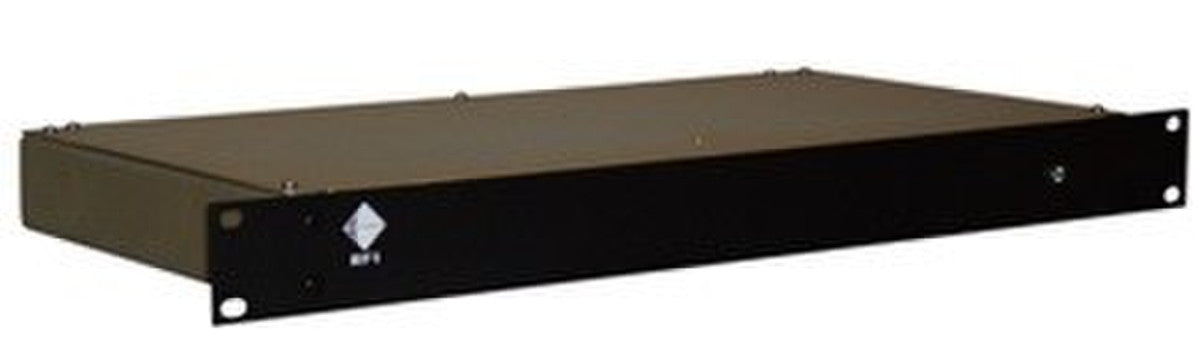

 The AM-RMC-1-6-NDC model may also be cascaded with AM-RMC-1 or AM-RMC-1-6 to provide a larger number of output ports when required. The AM-RMC products are supplied in a 1RU 19inch rack mount enclosure for convenient system integration.

Features:

• Biased 12 VDC antenna port for a single active AM antenna
• N(f) connectors
• Compact 1RU 19-inch rack mountable enclosure
• Available in 2 and 6 output port models
• Dry contact relay alarm outputs
• Optional receiver preamplifier
