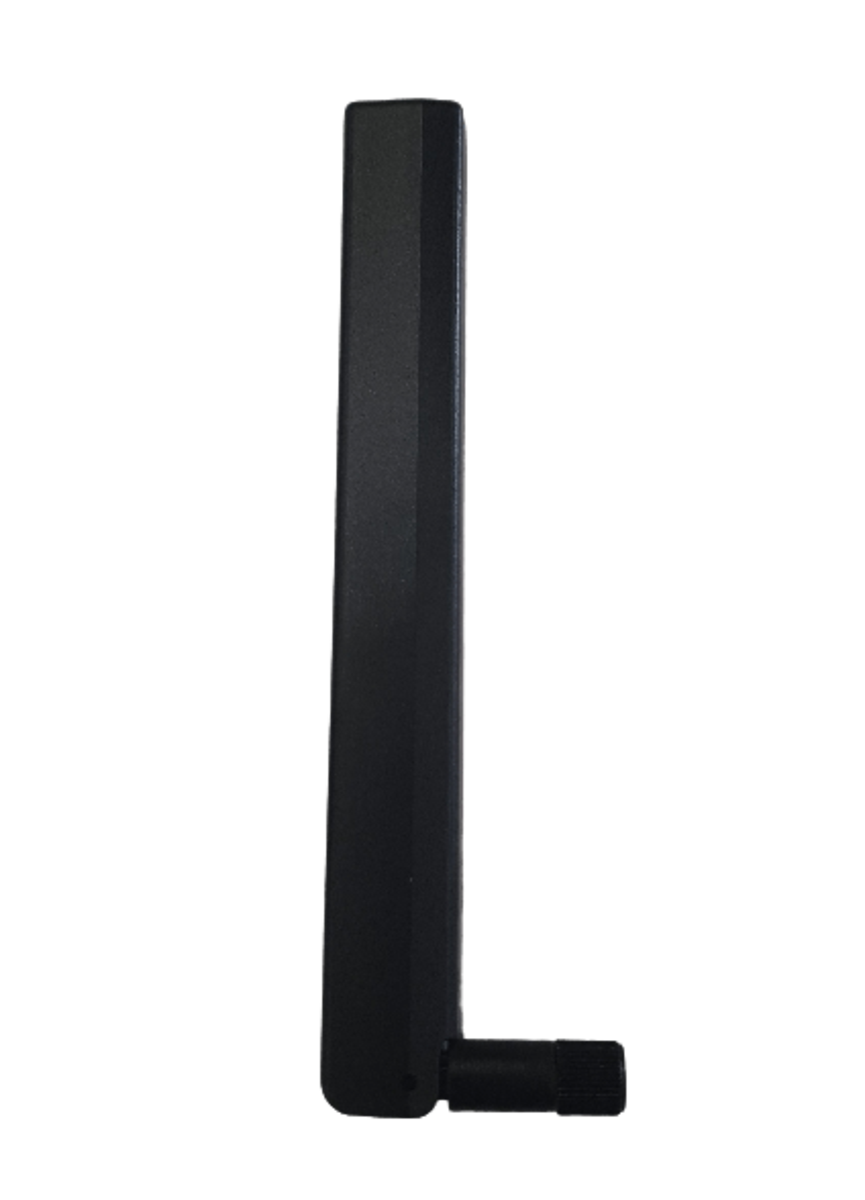

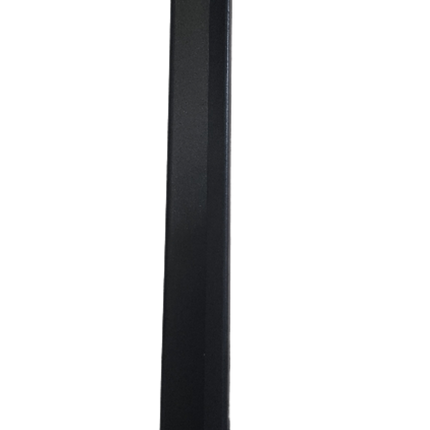

RFI ANT-5G-SMA-B Hinged 5G Terminal Antenna, 617-5925 MHz, SMA-Male - Black

RFI ANT-5G-SMA-B Hinged 5G Terminal Antenna, 617-5925 MHz, SMA-Male - Black

Available

Brand:
Item ID:
168061979
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
ANT-5G-SMA-B
Send Request for Quote (RFQ) Discount Offers
RFI ANT-5G-SMA-B WiFi Antenna is a versatile antenna combines high performance with full bandwidth coverage for 5G NR and 4G LTE.
Regular price $24.60
Regular price $0.00 Sale price $24.60
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The antenna can freely swivel 360 degrees and features a hinged connector up to 90 degrees, having flexibility in orientation with respect to the device for easier installation or multiple antennas mounting. Peak gain ranges between 2.2 dBi and 4.2 dBi across all frequencies in 617-5925 MHz range. This hinged terminal antenna supports cellular technologies like 5G and 4G as well as Wi-Fi 2.4 GHz and 5 GHz.

Product Features:

  • Connector mount, high performance, ultra-wideband antenna
  • Ground plane independent
  • Hinged connector

Application Areas:

  • Terminals, Base Stations and Routers
  • High Traffic MIMO Device Connectivity
  • Industrial, Commercial and Residential IoT
  • Industrial, Commercial and Residential Smart Home / Office
  • ATM Machines
  • IoT Dispensers
  • Vending Machines
  • Electrical Metering

In The Box:

  • 1x RFI Hinged Terminal Antenna, MPN ANT-5G-SMA-B

Documents:

RFI ANT-5G-SMA-B Hinged Terminal Antenna - Datasheet

Product Specifications

MPN ANT-5G-SMA-B
Antenna application Terminal Antenna
Antenna features Omnidirectional, Multi Band Capable
Antenna port connectors SMA (M)
Brands RFI
Coverage type Omni-directional
Frequency band Multi-Band 617 to 4200
Frequency mhz 698-960 / 1710-2170 / 2500-2700
Frequency range mhz 617 - 960
Height 2
Installation type Device mounting
Length 18
Low pim No
Max frequency mhz 5925
Max gain dbd dbi 4.2
Mimo support No
Min frequency mhz 617
Min gain dbd dbi 2.2
Mount supported Connector mount
Mount supported detailed Connector
No of antenna ports 1
Polarisation Linear
Power w 25
Technologies supported 4G, 5G
Termination SMA(M)
Tuned bandwidth Full
Vswr <1.7:1
Width 2
