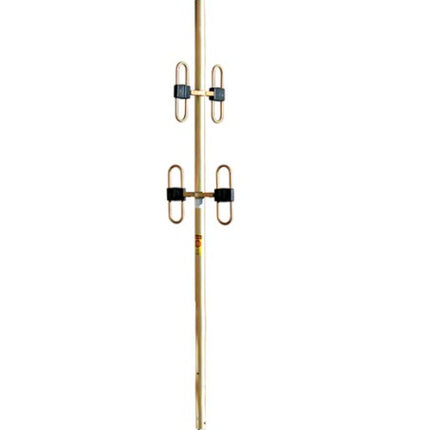

The RFI BA40-67-P is a UHF binary dipole array antenna terminated with 4.3-10(F) and 0.5m RG142 Cable tail. It operates within the 400-520 MHz frequency range, offering a 3 dBd gain. These high performance UHF dipole arrays are ideal for highly populated radio sites requiring long haul omnidirectional coverage. They operate over entire bands and offer gains of 3, 6 or 9dBd (depending on model) exhibiting a VSWR of <1.5:1 across the band. The BA40-67 arrays utilise an internal phasing harness using PIM rated PTFE based coaxial cable as well as custom dipole design to improve weatherproofing and resist bird attack. The use of a unique phasing arrangement provides extensive side lobe suppression and null fill characteristics. The arrays will accept an input power level of 500 watts continuous, making them ideal for high power multiple transmitter applications.  The BA80 series are offered with 3°, 5° or 8° downtilt, to further enhance close-in coverage characteristics. All welded alodined aluminium construction and new fabrication techniques in both the harness and dipole sections have proven to minimise intermodulation and noise generated within the antennas. The entire array rests at ground potential and offers the ultimate in lightning resistant antennas.

Product Features:

• New 4.3-10 high performance connector
• Ideal for highly populated sites requiring omnidirectional coverage
• Operate over entire 330-420 or 400-520 MHz bands
• 3, 6 or 9 dBd gain versions available
• Inverted mounting version available
• Versions with 0°, 3°, 5° or 8° of downtilt available in the BA80-67-P
• Extensive side lobe suppression and null fill
• Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum performance

Application Areas:

• Radio communication networks requiring stable omnidirectional coverage.
• High-density transmission sites where low intermodulation is critical.
• Systems needing high power handling with low VSWR.
• Environments where extended side-lobe suppression and signal integrity are essential.

Further Options:

• Factory pre-set downtilt (3°, 5°, or 8°) available in BA80-67-P models.
• Ruggedized black powder coat finish for enhanced ice shedding in extreme conditions.
• Optional all-welded 316 Marine Grade Stainless Steel construction for superior corrosion resistance.

In the Box:

• 1 x RFI BA40-67-P UHF Binary Dipole Array, 400–520 MHz, 3 dBd

Documents:

RFI BA40-67-P Dipole Array - Datasheet RFI BA40-67-P Dipole Array - Installation Guide
