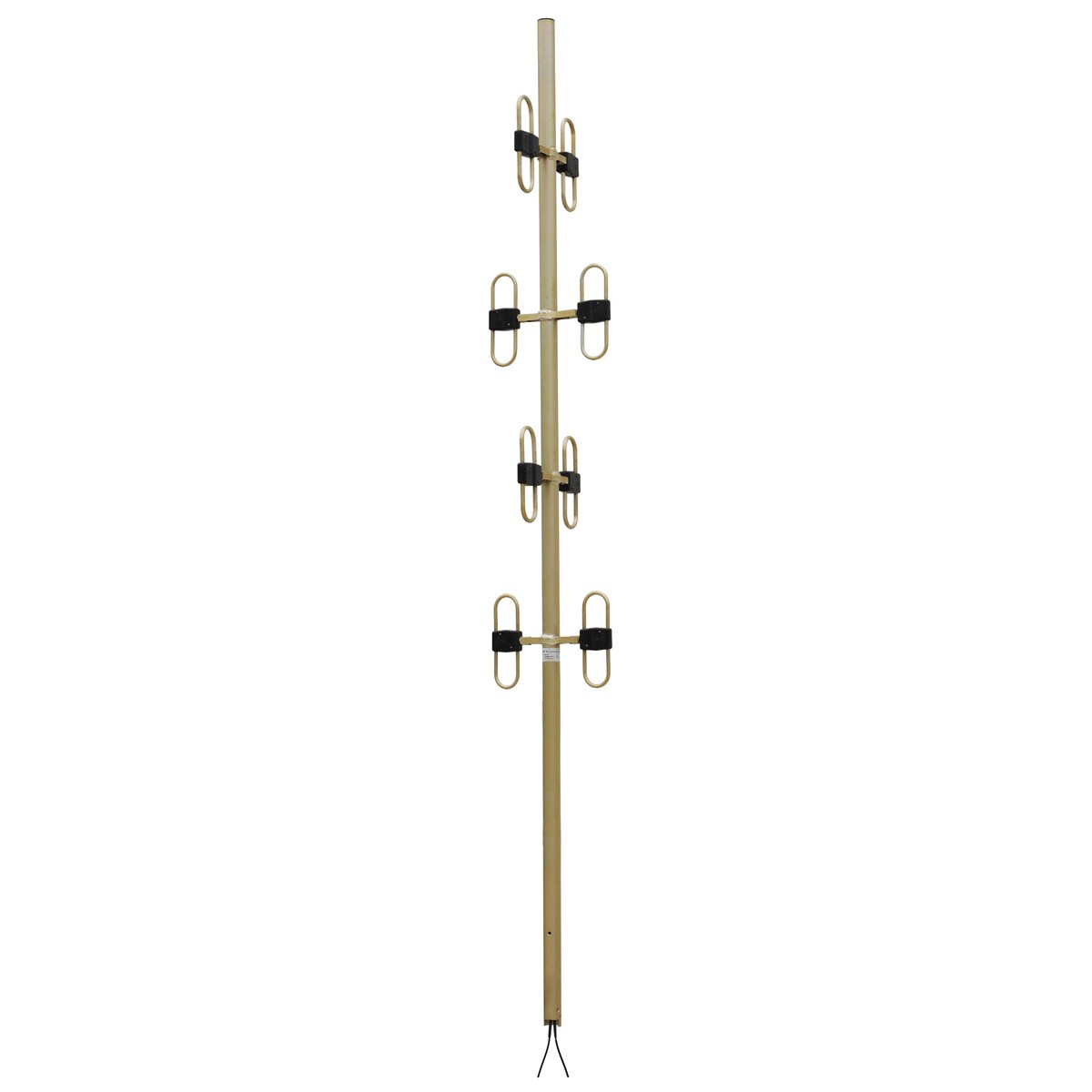

The RFI BA4040-67-P is a single-section dual binary array antenna terminated with 4.3-10(F) and 0.5m RG142 Cable tail. It operates within the 400-520 MHz frequency range. This antenna provides reliable performance for UHF applications, offering enhanced signal reception and transmission. The RFI range of UHF dipole arrays provide expanded bandwidth, high power ratings and unequalled performance in gain, pattern and intermodulation performance. The arrays will accept an input power level of 500 watts continuous, making them ideal for high power multiple transmitter applications. Ever increasing costs and site density requirements are reducing availability of antenna positions on prime sites. In order to reduce the overall number of antennas the RFI dipole array series provides system engineers and site owners with a flexible solution to reduce antenna numbers. The BA4040-67 Single Section Dual Array - A combination of two arrays mounted upon a single 48mm dia boom. These arrays are common where medium gain UHF omni-directional coverage is required via separate transmit and receive antennas conveniently located on a single boom. The feeding of each of the antennas is via separate coaxial cable tails at the base of the array.

Product Features:

• 4.3-10 high performance connector
• Ideal for highly populated sites requiring medium omnidirectional coverage
• Operate over entire 400-520 MHz band
• Available in stainless Steel variants also
• Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum performance

Application Areas:

• Highly populated radio sites requiring efficient medium omnidirectional coverage.
• Ideal for setups with separate transmit and receive antennas on a single boom.
• High-power transmission sites looking to minimize antenna count while maintaining performance.

In the Box:

• 1 x RFI BA4040-67-P Single Section Dual Binary Array, 400-520 MHz

Documents:

RFI BA4040-67-P Array - Datasheet RFI BA4040-67-P Array - Installation Guide
