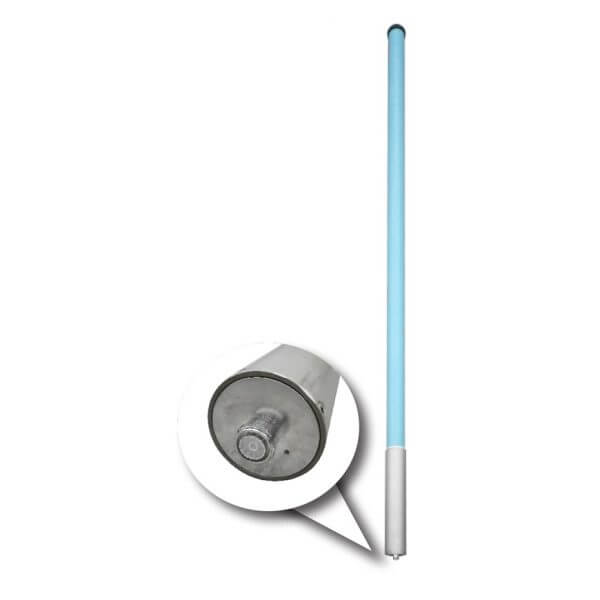

RFI CC807 2 Deg Tilt Collinear Antenna, 800 MHz, 10.5 dBd, 4.3-10-Female

RFI CC807 2 Deg Tilt Collinear Antenna, 800 MHz, 10.5 dBd, 4.3-10-Female

On backorder

Brand:
Item ID:
167015475
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CC807-11-T2-P
Discount Offers
RFI CC807 2 Deg Tilt Collinear Antenna redefines broadband antenna performance by integrating a true corporate feed into a fully enclosed fiberglass radome, delivering pattern integrity and high-gain output.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

RFI CC807 2 Deg Tilt Collinear Antenna redefines broadband antenna performance by integrating a true corporate feed into a fully enclosed fiberglass radome, delivering pattern integrity and high-gain output. Utilizing a patented design, each dipole element and matching network is constructed on a flexible circuit board, precisely phased and soldered onto a central brass support tube. This architecture ensures phase purity, reduced side lobes, and exceptional electrical performance over an ultra-wide operating bandwidth. Designed for professional-grade RF installations, these antennas are ideal for mission-critical networks that demand consistent high-power performance and minimal interference.

Product Features:

  • The precision phasing system controls element placement, delivering optimal gain and significantly reduced side lobes.
  • The 500 W continuous power rating supports demanding broadcast and communication applications.
  • It is rated to –150 dBc Passive Intermodulation (PIM) to ensure superior signal purity in co-located environments.
  • It withstands up to 25 kW Peak Instantaneous Power (PIP), making it suitable for high-energy signal bursts.
  • The dipole elements and matching network are built from flexible PCB, providing durability and uniform performance.
  • The direct brass-to-mount grounding system with a lightning spike delivers excellent lightning protection and static dissipation.
  • This model is available with fixed electrical downtilt options of 1°, 3°, and 5° for precise coverage control (models CC807-08 & CC807-11; tilt versions are not field invertible).
  • An optional –5° inverted downtilt is available on the CC807-08 model to meet upward coverage requirements.

Application Areas:

  • These antennas are ideal for high-performance base station deployments in public-safety, cellular, and broadcast networks.
  • They are suitable for situations requiring ultra-clean RF output with minimal passive intermodulation.
  • They perform reliably in outdoor installations located in areas prone to lightning or requiring strict environmental resistance.
  • They are beneficial for deployments needing controlled coverage shaping through downtilt configuration options.

In the Box:

  • 1 x RFI 2 Deg Tilt Collinear Antenna - CC807-11-T2-P
  • 1 x Integrated Lightning Spike
  • Mounting Hardware Kit

Documents:

RFI CC807 Collinear Antenna - Datasheet RFI CC Series Antenna - Installation Guide

Product Specifications

Add length 5.3 m
MPN CC807-11-T2-P
Antenna application Base Station Antenna
Antenna features Multi Band Capable, PIM Rated, High Power Multi Channel, PIP Rated
Antenna port connectors 4.3-10 (F)
Antenna type Collinears
Brands RFI
Construction aluminum mounting tube, Composite fiberglass sky, blue radome
Coverage type Omni-directional
Frequency band 900 MHz, 700 MHz, 800 MHz
Height 3
Horizontal beamwidth Omni +/- 0.5dB
Installation type External mounting
Length 99
Low pim Yes
Max frequency mhz 870
Max gain dbd dbi 10.5
Mimo support No
Min frequency mhz 746
Min gain dbd dbi 10.5
Mount supported Clamp mount
Mount supported detailed UC-114
Mounting area 750 x 89 mm
No of antenna ports 1
Peak instantaneous power kw 25
Pim 3rd 2x20 w dbc -150
Power w 500
Radome diameter mm 76
Technologies supported UHF
Termination 4.3-10 fixed female
Torque nm 1038
Tuned bandwidth Full band
Vertical beamwidth 4.5?
Vswr <1.5:1
Width 3
Wind gust km h >240
Wind thrust 540
