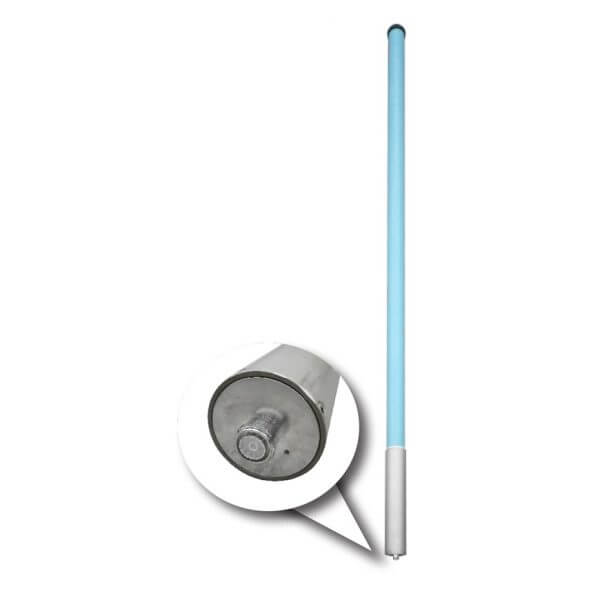

RFI CC807 4 Deg Tilt Collinear Antenna redefines broadband antenna performance by integrating a true corporate feed into a fully enclosed fiberglass radome, delivering pattern integrity and high-gain output. Utilizing a patented design, each dipole element and matching network is constructed on a flexible circuit board, precisely phased and soldered onto a central brass support tube. This architecture ensures phase purity, reduced side lobes, and exceptional electrical performance over an ultra-wide operating bandwidth. Designed for professional-grade RF installations, these antennas are ideal for mission-critical networks that demand consistent high-power performance and minimal interference.
Product Features:
- The precision phasing system controls element placement, delivering optimal gain and significantly reduced side lobes.
- The 500 W continuous power rating supports demanding broadcast and communication applications.
- It is rated to –150 dBc Passive Intermodulation (PIM) to ensure superior signal purity in co-located environments.
- It withstands up to 25 kW Peak Instantaneous Power (PIP), making it suitable for high-energy signal bursts.
- The dipole elements and matching network are built from flexible PCB, providing durability and uniform performance.
- The direct brass-to-mount grounding system with a lightning spike provides excellent lightning protection and static dissipation.
- It is available with fixed electrical downtilt options of 1°, 3°, and 5° for precise coverage control on models CC807-08 and CC807-11.
- An optional –5° inverted downtilt is available on the CC807-08 model to meet upward coverage requirements.
Application Areas:
- These antennas are ideal for high-performance base station deployments in public-safety, cellular, and broadcast networks.
- They are suitable for situations requiring ultra-clean RF output with minimal passive intermodulation.
- They perform reliably in outdoor installations located in areas prone to lightning or requiring strict environmental resistance.
- They are beneficial for deployments that need controlled coverage shaping through downtilt configuration options.
In the Box:
- 1 x RFI 4 Deg Tilt Collinear Antenna - CC807-11-T4-P
- 1 x Integrated Lightning Spike
- Mounting Hardware Kit
Documents:
RFI CC807 Collinear Antenna - Datasheet
RFI CC Series Antenna - Installation Guide
