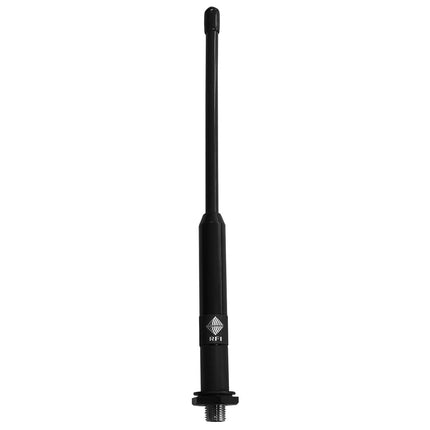

The RFI CD1140 Mopole Antenna is a 1.5 dB gain elevated feed antenna designed for installations where height, aesthetics, and performance are essential. Its elevated feed design raises the radiating element above the vehicle roofline, providing a strong omnidirectional signal pattern. With a ground-independent design, it has reliable performance regardless of the mounting location.

Product Features:

• The stud-mounted design allows for straightforward installation on gutter or mirror mounts.
• A flexible PVC-enclosed radiator provides durability and resilience in demanding conditions.
• The antenna delivers 1.5 dB gain over a ¼ wave for dependable signal enhancement.
• It operates within the 806-870 MHz frequency band, covering a broad communication range.
• The unit handles up to 40 watts of power with a tuned bandwidth across the entire band at less than 1.5:1 VSWR.
• The antenna is supplied pre-tuned and ready for immediate installation.
• The whip is made of brass and enclosed in flexible PVC tubing for added protection and flexibility.
• A threaded stud and nut assembly requires only a 16 mm clearance hole for secure mounting.

Application Areas:

• Perfect for vehicles where height and appearance are important without compromising performance.
• Ideal for commercial transport fleets requiring cost-effective mobile connectivity.
• Suitable for installation on trucks, vans, and utility vehicles with gutter or mirror mounts.
• Useful in both urban and rural environments where consistent mobile signal is needed.

In the Box:

• 1 x RFI CD1140 Mopole Antenna
• 1 x 5.0m Cellfoam® cable
• No connector

Documents:

RFI CD1140 Antenna - Datasheet
