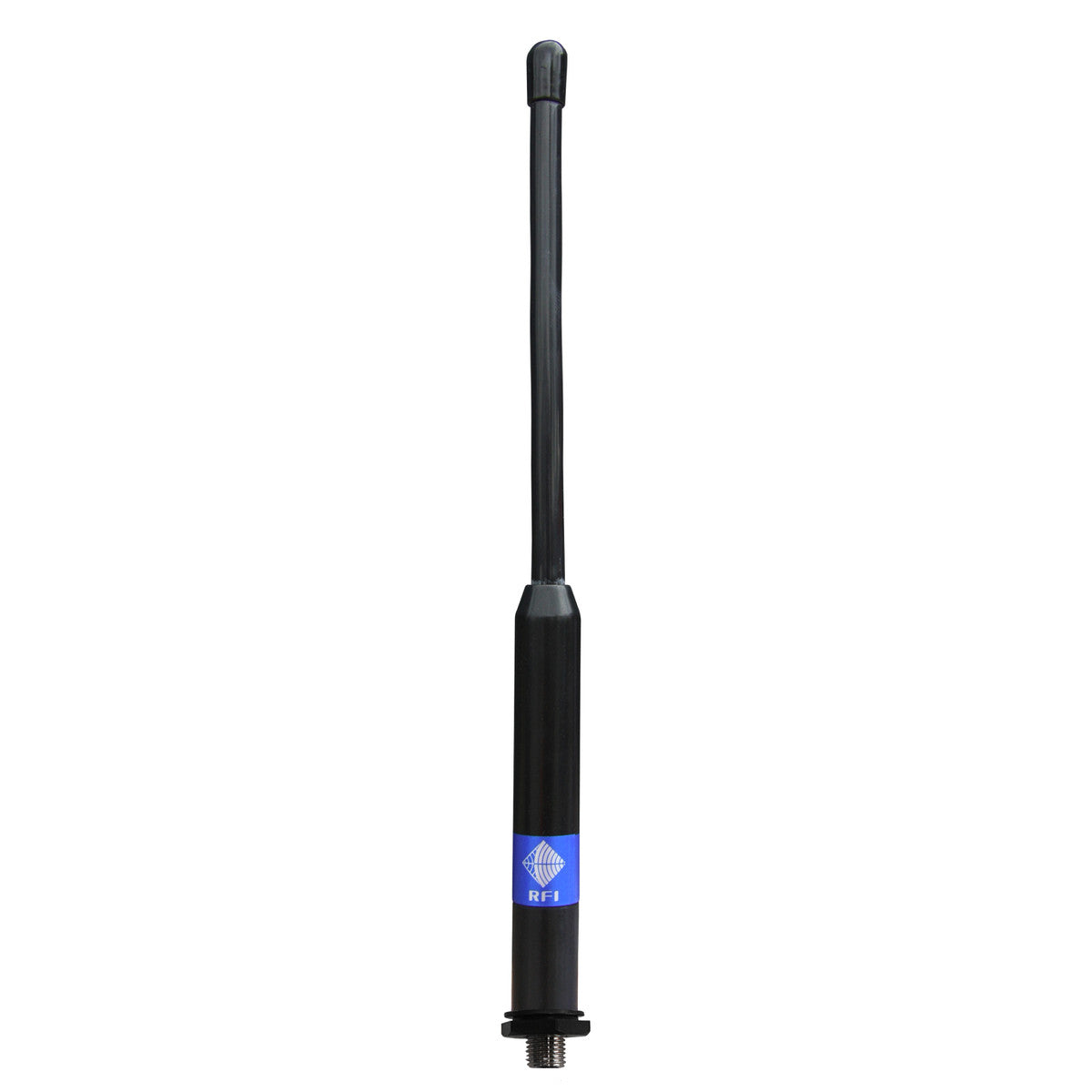

RFI CD1160 Mopole Antenna, E/Feed, 890-960 MHz, 1.5 dB, 5m, No Connector

RFI CD1160 Mopole Antenna, E/Feed, 890-960 MHz, 1.5 dB, 5m, No Connector

On backorder

Brand:
Item ID:
168014028
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CD1160
Send Request for Quote (RFQ) Discount Offers
RFI CD1160 Mopole Antenna is an efficient, affordable and reliable solution. Its elevated feed structure positions the radiating element above the vehicle’s roofline, creating a strong omnidirectional radiation pattern and delivering reliable coverage.
Regular price $121.50
Regular price $0.00 Sale price $121.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI CD1160 Mopole Antenna is a 1.5 dB gain elevated feed antenna designed for applications where height, visual profile, and consistent signal performance matter. Its elevated feed structure positions the radiating element above the vehicle’s roofline, creating a strong omnidirectional radiation pattern and delivering reliable coverage. Its ground-independent design gives effective performance regardless of mounting position.

Product Features:

  • Its stud-mounted design enables quick and secure installation on mirror or gutter mounts.
  • The PVC-enclosed radiator enhances flexibility and protects the antenna in demanding environments.
  • It offers 1.5 dB gain over a ¼ wave antenna, delivering stable and efficient coverage.
  • The antenna operates in the 890–960 MHz frequency range, ideal for cellular communication needs.
  • It handles up to 50 watts of power with a wide tuned bandwidth of 70 MHz @ <2:1 VSWR for optimal performance.
  • Pre-tuned at the factory, the antenna is ready for immediate installation with no tuning required on site.
  • The whip is crafted from brass with an elevated feed, fully enclosed in flexible PVC tubing for durability.
  • Mounting is easy with the threaded stud and nut assembly, requiring a 16 mm clearance hole.

Application Areas:

  • Ideal for use on vehicles where antenna height and streamlined design are important.
  • Suitable for budget-conscious mobile and fixed cellular installations.
  • Effective in both urban and remote environments where signal reliability is critical.
  • Compatible with gutter or mirror-mounted setups on fleet vehicles, trucks, or service vans.

In the Box:

  • 1 x RFI CD1160 Mopole Antenna
  • 1 x 5.0m Cellfoam® cable
  • No connector

Documents:

RFI CD1160 Antenna - Datasheet

Product Specifications

MPN CD1160
Antenna application Vehicle Antenna
Antenna cable type Cellfoam
Antenna configuration SISO
Antenna port connectors No connector
Antenna type Ground Independent
Band 890 - 960MHz
Brands RFI
Cable and connector 5.0m Cellfoam? cable. Please specify connector
Cable length m 1.5
Coverage type Omni-directional
Frequency band ISM Bands 300 MHz & 400 MHz & 8900 MHz
Frequency mhz 890-960
Height 5
Installation type Vehicle mounting
Length 25
Low pim No
Max frequency mhz 960
Max gain dbd dbi 1.4
Mimo support No
Min frequency mhz 890
Min gain dbd dbi 1.4
Mount supported Stud mount
Mount supported detailed Stud mount
Mounting Threaded Stud
No of antenna ports 1
Nominal gain dbq 1.5
Power w 50
Technologies supported UHF
Tuned bandwidth Full. No tuning required
Tuning Supplied pre-tuned, ready for installation
Vswr <2.1:1
Whip length mm 195 (including elevated feed section)
Whip material Brass elevated feed, radiator enclosed in flexible PVC tubing
Width 5
