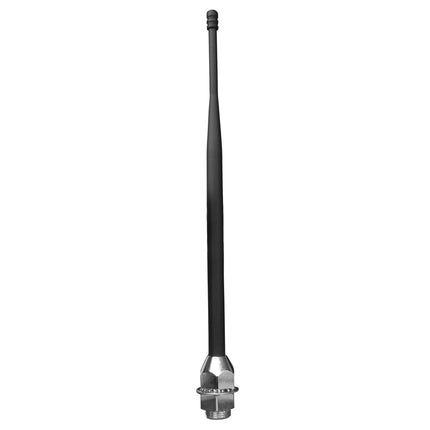

The RFI CD1169 is a ground-independent, center-fed dipole vehicle antenna designed for reliable performance across the 820-890 MHz frequency range. With a slimline design and flexible mounting options, it is ideal for telemetry, remote metering, and mobile communication applications across ISM900, Next G, and 800 MHz trunking bands.
Product Features:
- The antenna features a ground-independent design, delivering unity gain and consistent performance across the full 820-890 MHz band.
- It provides 2.1 dBi gain, ensuring stable signal strength for mobile and fixed wireless applications.
- The antenna supports multiple bands including GSM, ISM900, Next G, and 800 MHz trunking.
- It includes versatile mounting options: stud mount or the supplied stainless-steel right-angle bracket for easy installation.
- The slimline black TPU radome offers a durable and low-profile aesthetic suitable for vehicle and industrial use.
- The antenna is terminated with a 1-meter RG174 cable and SMA male connector for direct integration with communication devices.
- It is rated for up to 10 W input power and maintains a VSWR of 2.0:1 for efficient signal transmission.
Application Areas:
- The antenna is ideal for vehicle-mounted telemetry and remote metering systems.
- It is suitable for mobile communication devices operating in the 820-890 MHz range.
- It supports fleet management, wireless monitoring, and industrial IoT applications.
- The design is optimized for use in environments where ground plane independence and compact form factor are essential.
In the Box:
- 1x RFI CD1169 Vehicle Antenna
Documents:
RFI CD1169 Antenna - Datasheet
