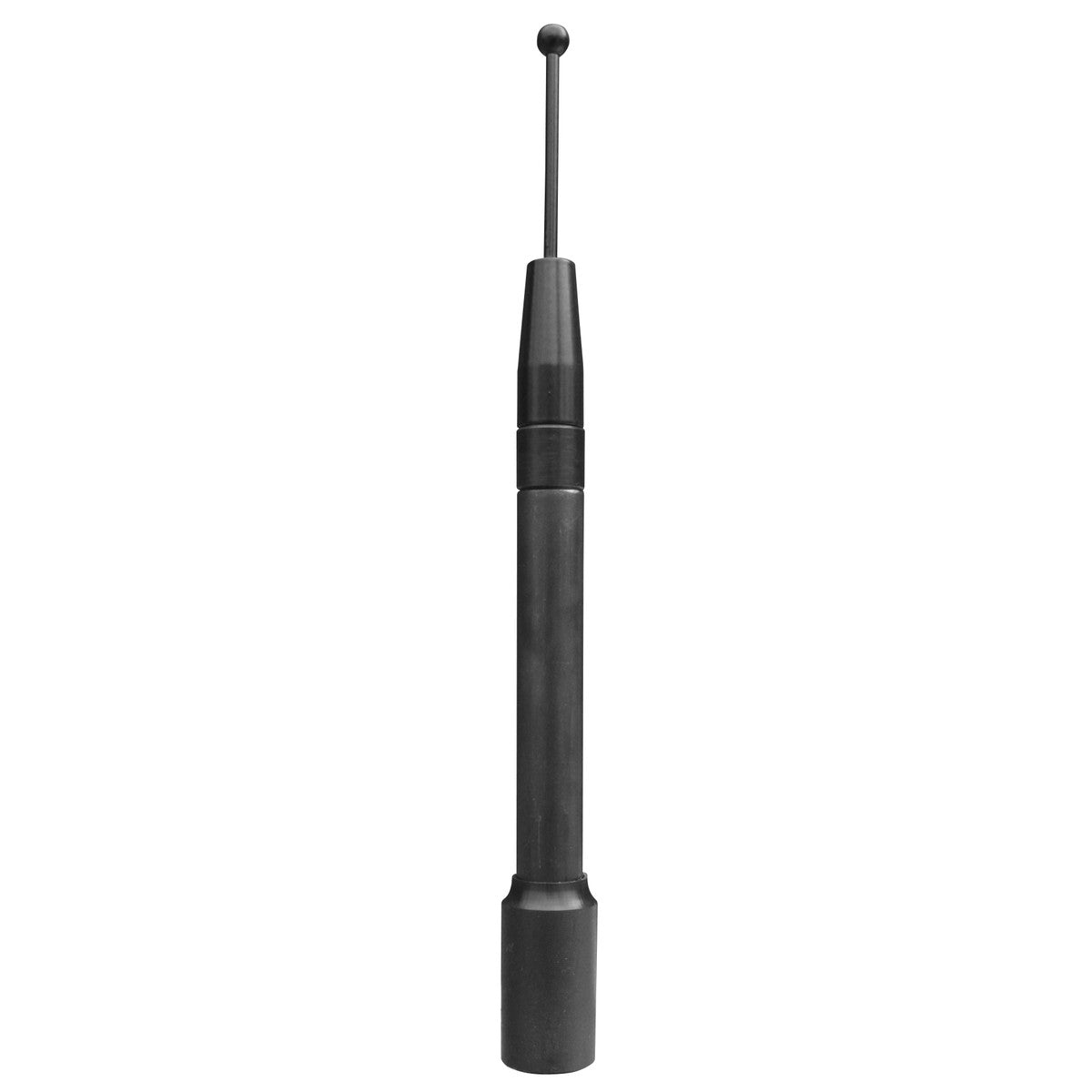

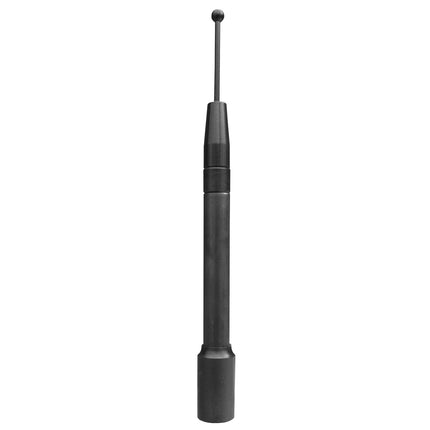

The RFI CD1210 Mopole Antenna delivers high performance through its elevated feed design, making it suitable for a wide range of mounting locations and communication applications. Designed for use across CDMA, GSM, and PTMP bands, it maintains an omnidirectional pattern by keeping the radiating element above roof level.

Product Features:

• The elevated feed design provides omnidirectional coverage with 1.5 dB of gain to enhance signal strength.
• The antenna can be installed with or without the optional mounting kits, offering maximum installation flexibility.
• It is compatible with a wide range of mounting options, including vehicle gutter mounts, fender mounts, and boot mounts.
• The device operates efficiently across the 820-896 MHz frequency band, making it ideal for CDMA, GSM, and PTMP systems.
• The antenna can handle up to 40 watts of power while maintaining a VSWR of less than 1.9:1 across the entire frequency band.
• It comes factory pre-tuned for quick installation and reliable performance immediately upon deployment.
• The stainless-steel whip, finished in black, provides durability and a professional appearance.
• The stud-mount design, including a 14 mm clearance hole, ensures secure attachment in various installation settings.

Application Areas:

• This antenna is ideal for CDMA, GSM, and PTMP applications in both mobile and fixed environments.
• It is well suited for vehicles with limited or unconventional mounting surfaces.
• The device is perfect for fleet, emergency services, utility, and transport vehicles that require consistent cellular coverage.
• It performs effectively in suburban, rural, and remote areas where reliable reception is essential.

In the Box:

• 1 x RFI CD1210 Mopole Antenna
• 1 x 5.0m Cellfoam® cable
• No connector

Documents:

RFI CD1210 Antenna - Datasheet RFI CD1210 Antenna - Installation Guide
