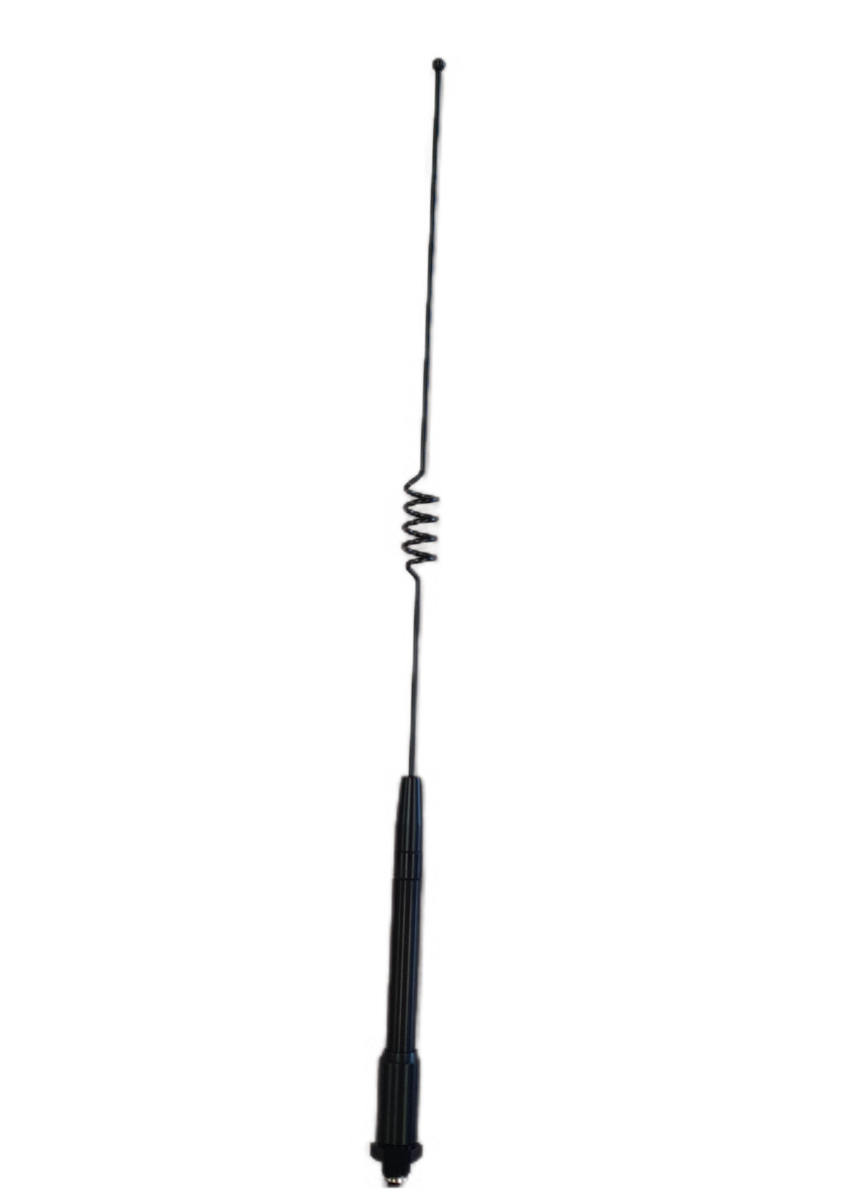

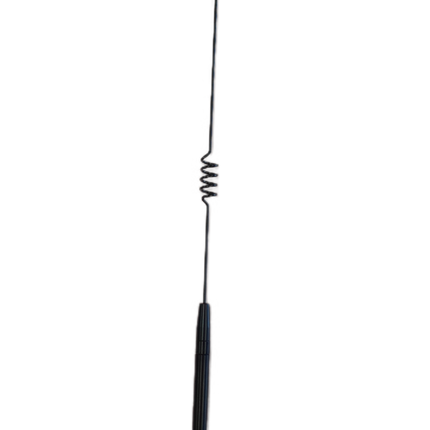

The RFI CD1225 Mopole Antenna (824-896 MHz) delivers high-performance omnidirectional gain, making it an excellent choice for mobile and fixed installations. Its elevated feed design eliminates the need for a ground plane, allowing flexible mounting on a range of vehicle surfaces.

Product Features:

• The elevated feed design raises the radiating element above potential obstructions to maximize line-of-sight reception.
• It delivers 3 dB of gain over a standard quarter-wave antenna, enhancing signal strength and reception quality.
• Its versatile mounting options accommodate vehicle gutter mounts, fender mounts, boot mounts, or magnetic mounts for flexible installation.
• The ground-plane-independent design allows installation on a variety of surfaces without needing a dedicated ground plane, simplifying placement.
• The 17-7PH stainless-steel whip, finished in black, provides durability and scratch resistance for long-lasting use.
• It comes pre-tuned across the entire 824-896 MHz frequency band with a VSWR below 2.0:1 to ensure optimal out-of-the-box performance.
• The antenna is supplied with a 5.0 m Cellfoam® coaxial cable, ready for immediate installation without additional tuning.

Application Areas:

• This antenna is perfect for mobile communication systems operating in the 824-896 MHz frequency range.
• It is well-suited for vehicles with limited or unconventional mounting options, such as utility trucks or service vans.
• The device is ideal for utility, transport, and emergency service vehicles that require reliable and durable antenna solutions.
• It performs effectively in remote, rural, or urban environments where consistent omnidirectional coverage is essential.

In the Box:

• 1 x RFI CD1225 Mopole Antenna
• 1 x 5.0m Cellfoam® cable
• No connector

Documents:

RFI CD1225 Antenna - Datasheet RFI CD1225 Antenna - Installation Guide
