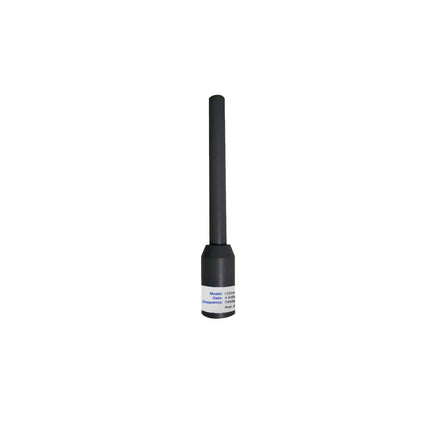

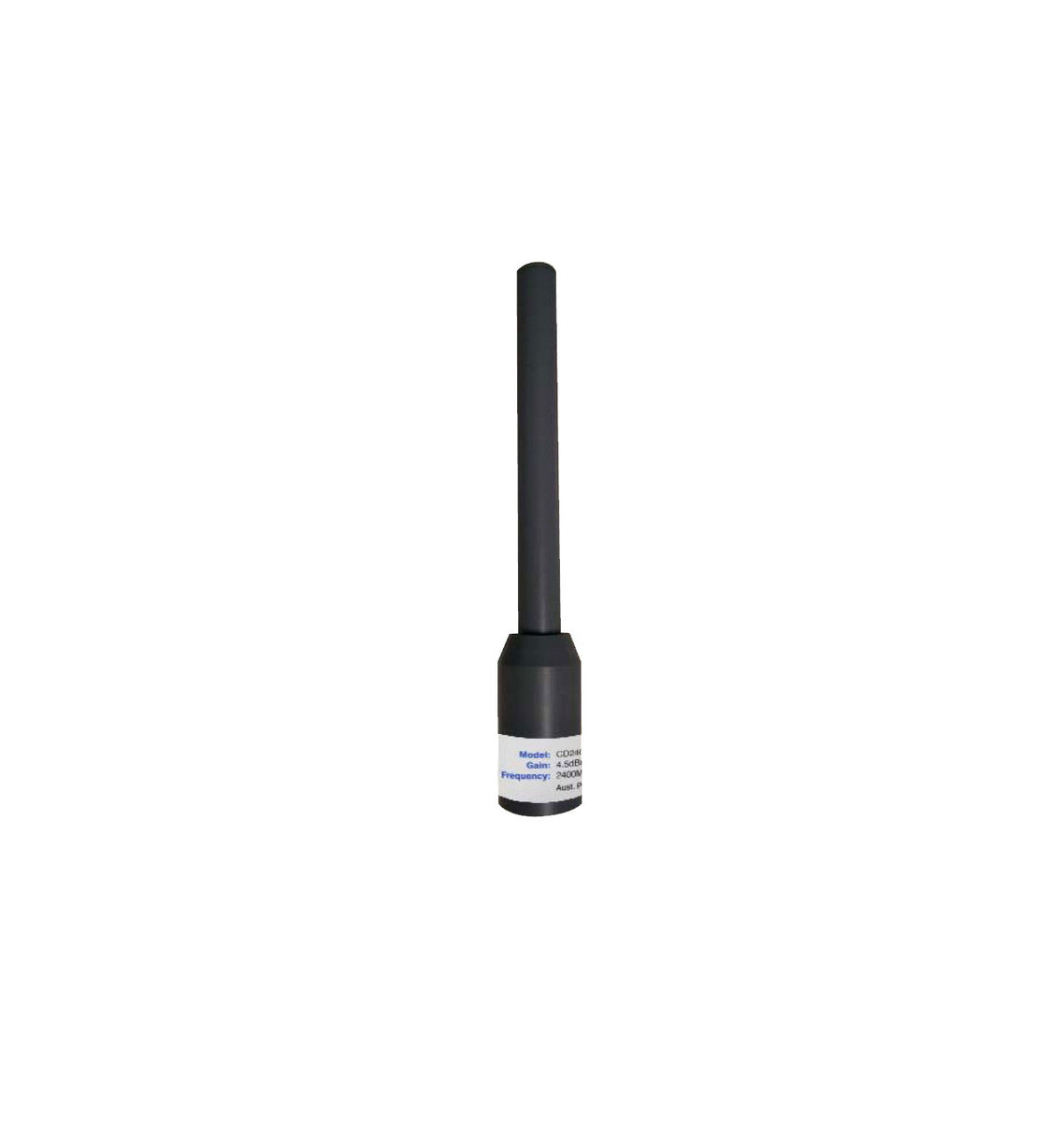

The RFI CD2405 is a high-performance WiFi terminal antenna designed for 2.4 GHz wireless networks. Featuring a patented PCB design and integrated N male connector, this antenna delivers superior pattern stability and consistent omni-directional coverage, making it ideal for enhancing network performance in both indoor and outdoor environments.
Product Features:
- The antenna operates across the 2400–2500 MHz frequency range, providing full-band coverage for 2.4 GHz WiFi applications.
- It delivers 4.5 dBi gain with a 360° horizontal beamwidth and 33° vertical beamwidth, ensuring broad and stable signal distribution.
- The patented PCB design eliminates common tilting issues, offering superior pattern stability throughout the band.
- It features an integrated N male connector for direct mounting and seamless connectivity.
- The antenna is housed in a black fiberglass radome with a black Delrin connector housing for durability and weather resistance.
- It supports vertical polarization and maintains a low VSWR of <1.5:1 for efficient signal transmission.
- The compact 205 mm length makes it suitable for space-constrained installations.
Application Areas:
- The antenna is ideal for WiFi access points, repeaters, and wireless bridges operating in the 2.4 GHz band.
- It is suitable for both indoor and outdoor deployments requiring stable omni-directional coverage.
- It supports industrial, commercial, and enterprise wireless networking environments.
- The design is optimized for installations requiring integrated mounting and minimal visual impact.
In the Box:
- 1x RFI CD2405 WiFi Terminal Antenna with Integrated N Male Connector
Documents:
RFI CD2405 WiFi Antenna - Datasheet
