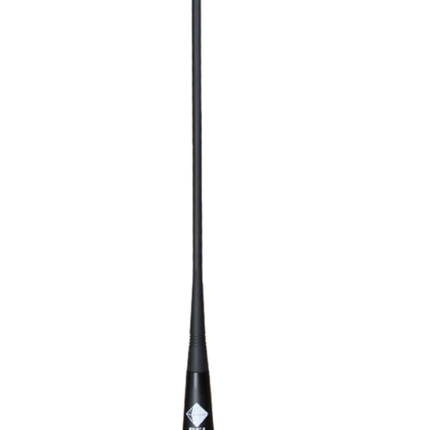

RFI CD34-71-00 CB Antenna Whip designed for CD34 UHF CB Mopole Antennas that are suitable for various mounting positions like vehicle mirrors, gutters, or roof racks. CD34 can be mounted in these alternative positions with ease unlike antennas that require mounting in the center of a metal roof for optimal efficiency. This antenna features an end-fed dipole (1/2 wave) design with a tuned circuit incorporated into the base and a fully molded radiating element. The result is a rugged antenna suitable for a wide range of applications. The CD34 antenna is available in two versions: a stud-mounted version or an MBC base with a removable whip. Both versions come with a 5-meter RG58 C/U cable factory-terminated with an FME female connector for easy installation. Additionally, an FME male to UHF male adaptor is included for connection to all UHF CB radios.

Features:

• Versatile Mounting: Suitable for mounting on vehicle mirrors, gutters, or roof racks.
• End-Fed Dipole Design: Features a tuned circuit in the base and a fully molded radiating element for ruggedness and durability.
• Whip Only: This CD34-71-00 model is the whip only and screws onto UHF/MBC/SO239 connectors/base.
• Ground Plane Independent: Allows installation in almost any location.
• Robust Construction: Features a robust UV stable base and flexible whip.

Electrical Specifications:

• Frequency MHz: 476-478
• Nominal Gain dBi: 4
• Power W: 25
• VSWR (Return Loss): 1.5:1 (14dB)
• Pattern: Omni-directional
• Impedance Ohm: 50

Mechanical Specifications:

• Whip Construction: Carbon Steel with UV Stable Over Mould
• Length mm: 345

Documents:

RFI CD34 Antenna - Datasheet RFI CD34 Antenna - Installation Guide RFI CD34 Antenna Whip - Specifications
