RFI CD34-71-53 UHF CB Mopole Antenna 477 MHz, 4 dBi, MBC Base, 5m, FME-Female and UHF(A)

    RFI CD34-71-53 UHF CB Mopole Antenna 477 MHz, 4 dBi, MBC Base, 5m, FME-Female and UHF(A)

      Product form
      Brand:
      RFI
      Item ID:
      168015558
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      CD34-71-53
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI CD34 CB Antenna is a UHF CB Mopole with a gain of 4 dBi and operates at 477 MHz. It is supplied with MBC 5m cable FME(F) connector and UHF(A) adaptor.

      Available

      $91.30

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

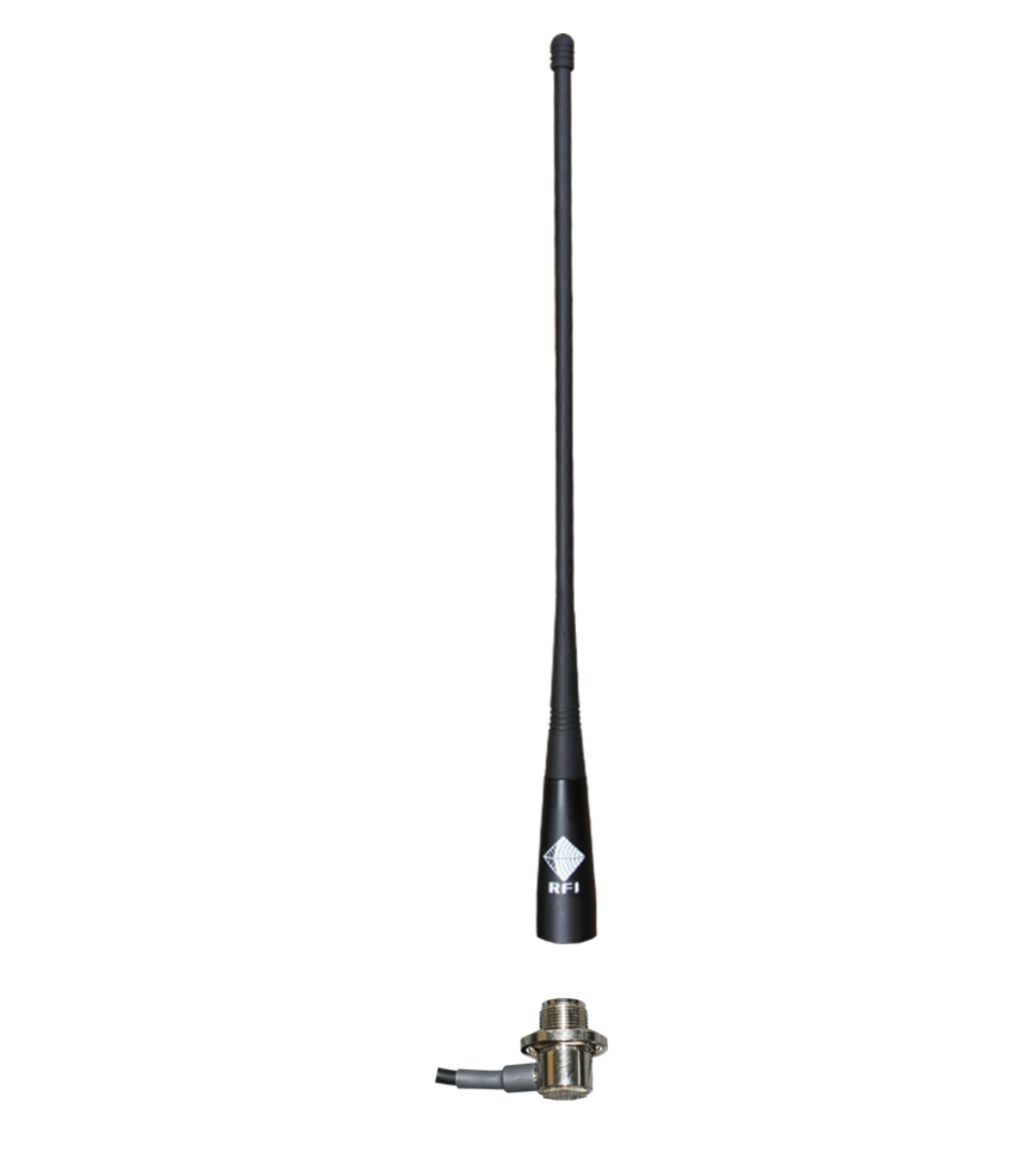

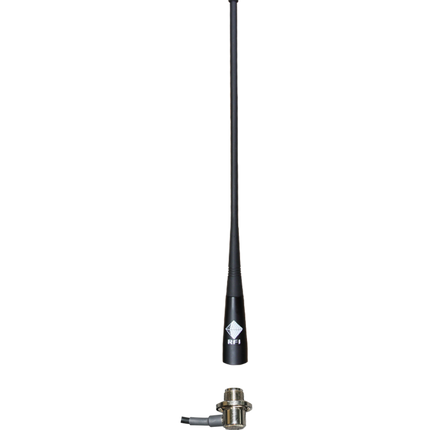

        The RFI CD34-71-53 CB UHF CB 4 dBi Mopole Antenna (477 MHz) is designed for various mounting positions like vehicle mirrors, gutters, or roof racks. CD34 can be mounted in these alternative positions with ease unlike antennas that require mounting in the center of a metal roof for optimal efficiency. This antenna features an end-fed dipole (1/2 wave) design with a tuned circuit incorporated into the base and a fully molded radiating element. The result is a rugged antenna suitable for a wide range of applications. The CD34 antenna is available in two versions: a stud-mounted version or an MBC base with a removable whip. Both versions come with a 5-meter RG58 C/U cable factory-terminated with an FME female connector for easy installation. Additionally, an FME male to UHF male adaptor is included for connection to all UHF CB radios.

        Features:

        • End-Fed Dipole Design: Incorporates a tuned circuit in the base and a fully molded radiating element.
        • Stud or MBC Mount: Available in stud-mounted version or MBC base with removable whip.
        • Easy Installation: Comes with a 5-meter RG58 C/U cable factory terminated with an FME female connector.
        • Versatile Compatibility: Includes an FME male to UHF male adaptor for connection to all UHF CB radios.
        • Ground Plane Independent: Allows installation in almost any location.
        • Robust Construction: Features a robust UV stable base and flexible whip.

        Electrical Specifications:

        • Gain max dBq: 4
        • Frequency MHz: 476-478
        • Power W: 25
        • VSWR (Return Loss): 1.5:1 (14dB)
        • Pattern: Omni-directional
        • Impedance Ohm: 50

        Mechanical Specifications:

        • Whip Material: Stainless steel whip over moulded with UV stable TPU
        • Base Material: UV stable ABS with integrated UHF connector
        • Cable Type: RG58 Low Loss
        • Cable Length / Connector: 5 metres cable & factory terminated with a FME female connector and supplied with a FME male to UHF male adaptor
        • Mounting: MBC (UHF) base
        • Length mm: 310
        • Weight kg: 0.3

        Documents:

        RFI CD34 Antenna - Datasheet RFI CD34 Antenna - Installation Guide RFI CD34 Antenna Whip - Specifications

        Product Specifications

        MPN CD34-71-53
        Antenna application Vehicle Antenna
        Antenna cable type RG58
        Antenna configuration SISO
        Antenna port connectors FME (F), UHF (M)
        Antenna type Ground Independent
        Band 477MHz
        Brands RFI
        Cable and connector 5.0m RG58C/U cable fitted with FME female connector plus supplied with an FME male to UHF male adaptor.
        Cable length m 5
        Coverage type Omni-directional
        Frequency band UHF 380-520 MHz
        Frequency mhz 476-477
        Height 3
        Installation type Vehicle mounting
        Length 34.5
        Low pim No
        Max frequency mhz 478
        Max gain dbd dbi 4
        Mimo support No
        Min frequency mhz 476
        Min gain dbd dbi 4
        Mount supported MBC base
        Mount supported detailed MBC base
        No of antenna ports 1
        Nominal gain dbi 4
        Power w 50
        Technologies supported UHF CB
        Tuned bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        Vswr <1.5:1
        Whip length mm 330
        Whip material Stainless Steel braid over moulded with UV resistant TPU
        Width 3
