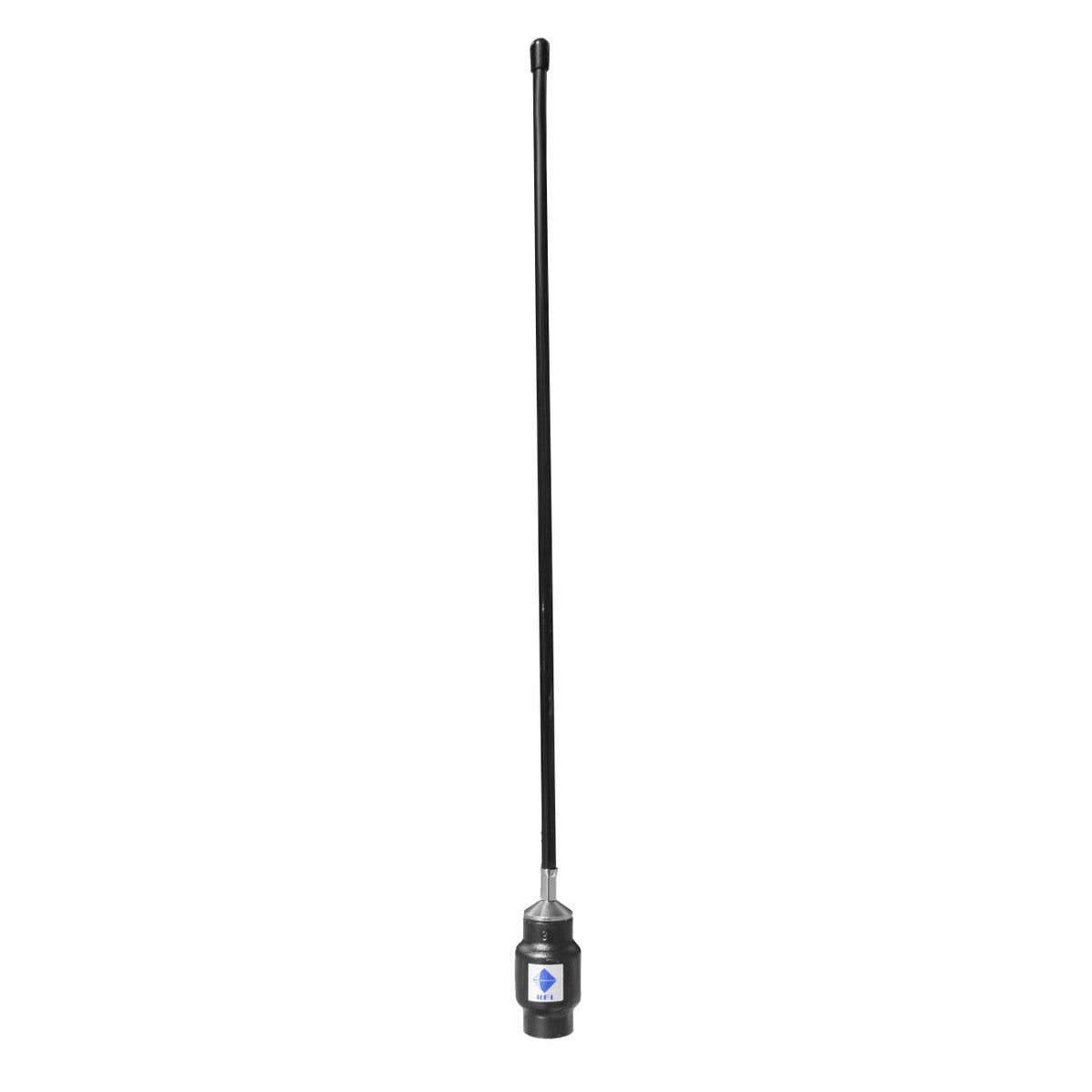

RFI CD51-65-73 UHF Mopole Antenna, 380-440 MHz, 4 dB, Stud Mount, 5m, No Connector

RFI CD51-65-73 UHF Mopole Antenna, 380-440 MHz, 4 dB, Stud Mount, 5m, No Connector

Available

Brand:
Item ID:
168015590
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CD51-65-73
Send Request for Quote (RFQ) Discount Offers
RFI CD51-65-73 UHF 4 dB Mopole Antenna is a versatile and high-performance solution designed for reliable UHF communications between 380 and 440 MHz.
Regular price $68.50
Regular price $0.00 Sale price $68.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI CD51-65-73 UHF 4 dB Mopole Antenna (380-440 MHz) with Stud mount, 5m cable and no connector is a versatile and popular antenna The CD50/CD51 antennas provide performance with a largely omni-directional pattern when they are mounted on a vehicle gutter or similar position. This is due to the low angle of radiation inherent in the dipole antenna pattern, resulting in a typical 4.0 dB improvement in performance compared to a 3-wave whip in the center of a metal roof.

Product Features:

  • This antenna uses a patented feed system that requires trimming the coaxial cable’s dielectric to a set length for precise impedance matching.
  • Its ground-plane-independent design enables flexible installation locations beyond vehicle roof centers.
  • It delivers largely omnidirectional coverage with high performance even when not center-roof mounted.
  • Its patented design allows quick and easy re-termination in the field without specialized tools.
  • The flexible nylon whip construction provides durability and resilience in harsh conditions.
  • The virtually indestructible base coil ensures reliable long-term operation in mobile or industrial environments.
  • The proprietary transformer design enhances RF stability and maintains consistent gain.
  • This antenna is protected under Australian Patents #596830 and #656793 for its innovative technology.

Application Areas:

  • This antenna is ideal for emergency services and commercial fleet communication systems.
  • It is well suited for utility and infrastructure vehicles operating across UHF bands.
  • It performs reliably in industrial and mining environments that demand rugged antenna performance.
  • It excels in installations where a stud-mounted, flexible, ground-plane-independent antenna is essential.

In the Box:

  • 1 x RFI CD51-65-73 UHF 4 dB Mopole Antenna
  • 1 x 5-meter cable (no connector)
  • 1 x Stud mount assembly (pre-installed)

Mounting Arrangements:

  • CD50-xx-73 and CD51-xx-73: Mount via a threaded stud and nut assembly, allowing easy termination, tuning, and re-termination in the field.
  • CD50-xx-53 and CD51-xx-53: Mate with the MBC coaxial base, providing an internal, permanent connection in a completely sealed unit.

Documents:

RFI CD51 UHF Antenna - Datasheet RFI CD51 UHF Antenna - Installation Guide

Product Specifications

MPN CD51-65-73
Antenna application Vehicle Antenna
Antenna cable type RG58C/U
Antenna configuration SISO
Antenna port connectors No connector
Antenna type Ground Independent, Omni
Band 380 - 440 MHz
Brands RFI
Cable length m 5
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Frequency mhz 380-440
Height 5
Installation type Vehicle mounting
Length 50
Low pim No
Max frequency mhz 440
Max gain dbd dbi 4
Mimo support No
Min frequency mhz 380
Min gain dbd dbi 4
Mount supported Stud mount
Mount supported detailed Stud mount
Mounting Stud Mount
No of antenna ports 1
Nominal gain dbi 4
Power w 50
Technologies supported UHF
Tuned bandwidth 13 MHz @ <1.5:1 VSWR
Tuning Field tune to minimum VSWR using supplied tuning chart
Vswr 13 MHz @ <1.5:1 VSWR
Whip length mm 360
Whip material Copper braid element in flexible nylon tubing
Width 5
