RFI CD61-3847-50 UHF Mopole Antenna, 380-470 MHz, 4 dB, MBC Base, No Cable

RFI CD61-3847-50 UHF Mopole Antenna, 380-470 MHz, 4 dB, MBC Base, No Cable

Available

Brand:
Item ID:
168015600
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CD61-3847-50CD61-3847-50
Send Request for Quote (RFQ) Discount Offers
RFI CD61-3847-50 UHF Mopole Antenna is a 4 dB broadband Mopole designed for the 380-470 MHz frequency range. It features an MBC base and does not include a cable.
Regular price $110.00
Regular price $0.00 Sale price $110.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

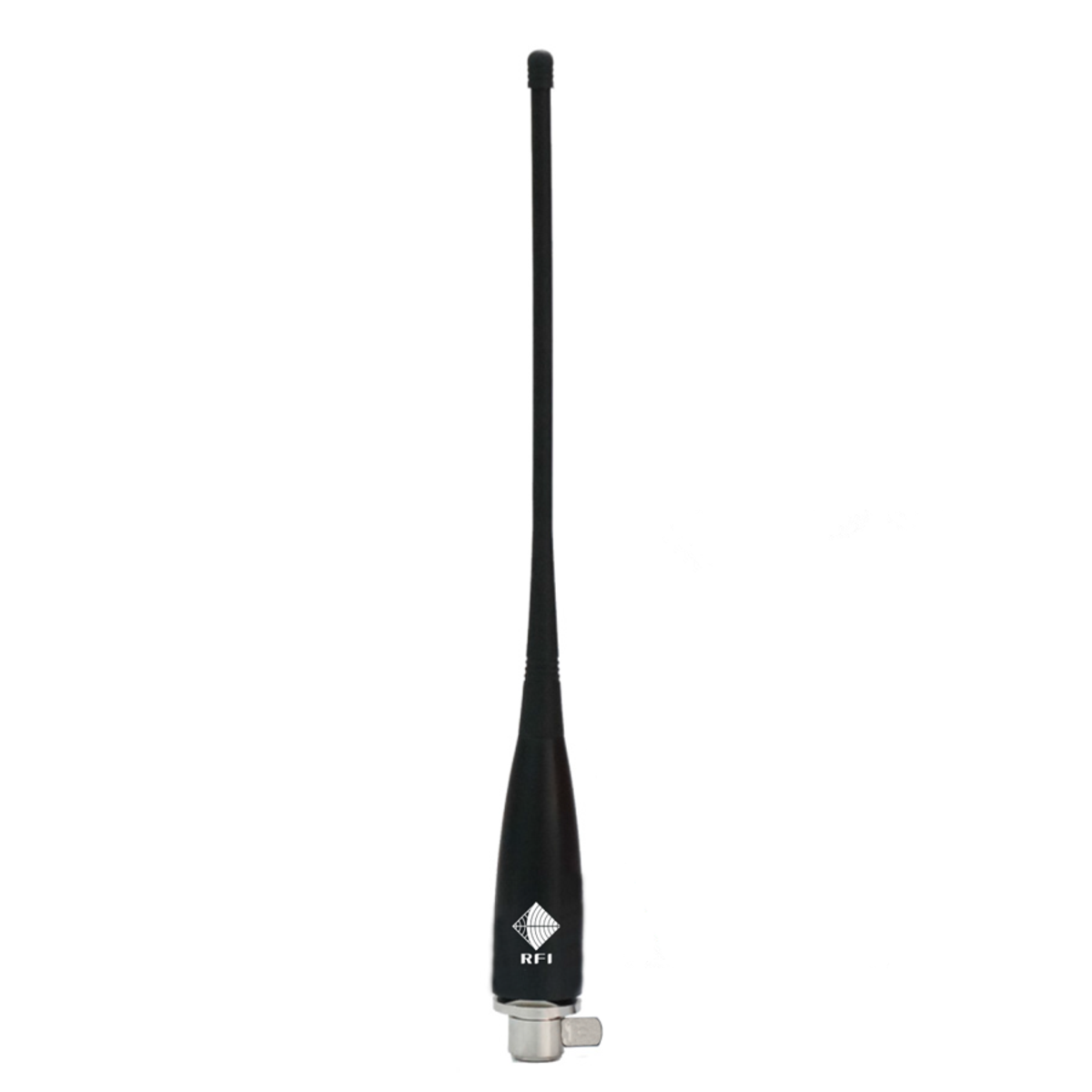

The RFI CD61-3847-50 UHF Mopole Antenna is a 4 dB broadband Mopole designed for the 380-470 MHz frequency range. RFI CD61 UHF Antenna features an integrated matching circuit housed in a rugged and impact-resistant base. Designed to interface effortlessly with standard PL259 (MBC) mobile mounts, the CD61 antenna simplifies existing installation upgrades on public safety vehicles and other vehicles requiring reliable communication. Whether used in emergency response vehicles or commercial fleets, the CD61 Series broadband antenna delivers reliable and efficient communication across UHF frequency bands.

Product Features:

  • This antenna is designed to cover the 380–470 MHz UHF band with no tuning required, offering plug-and-play installation.
  • Its ground-plane-independent design enables mounting flexibility on various surfaces and vehicle types.
  • The integrated matching circuit within a rugged base ensures optimal electrical performance and long-term durability.
  • The highly flexible TPU over-moulded whip enhances resilience in high-vibration or impact-prone conditions.
  • It is fully compatible with standard PL-259 (MBC) mobile mounts, simplifying fleet upgrades and retrofits.
  • This antenna is engineered and manufactured in Australia to meet strict quality and reliability standards.

Application Areas:

  • This antenna is ideal for emergency-response vehicles, including police, fire, and ambulance fleets operating on UHF networks.
  • It is well suited for commercial and industrial vehicle communications that require robust UHF connectivity.
  • It serves as the perfect retrofit solution for public-safety vehicles equipped with MBC mount systems.
  • It provides reliable performance for mining, construction, and utility service fleets working in demanding environments.

In the Box:

  • 1 x RFI CD61-3847-50 UHF Broadband Mopole Antenna
  • 1 x MBC Base with Integrated Matching Circuit
  • Cable and connector not included

Documents:

RFI CD61 Antenna - Datasheet RFI CD61 Antenna - Installation Guide RFI CD61 Antenna - Patterns

Product Specifications

MPN CD61-3847-50, CD61-3847-50
Antenna application Vehicle Antenna
Antenna features Omnidirectional
Antenna port connectors Not included, order separately
Antenna type Ground Independent
Brands RFI
Cable and connector No included
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Frequency mhz 380-470
Height 3
Installation type Vehicle mounting
Length 37
Low pim No
Max frequency mhz 470
Max gain dbd dbi 4
Mimo support No
Min frequency mhz 380
Min gain dbd dbi 4
Mount supported MBC base
Mount supported detailed MBC base
No of antenna ports 1
Nominal gain dbq 4
Polarisation Vertical
Power w 25
Technologies supported UHF
Tuned bandwidth Full

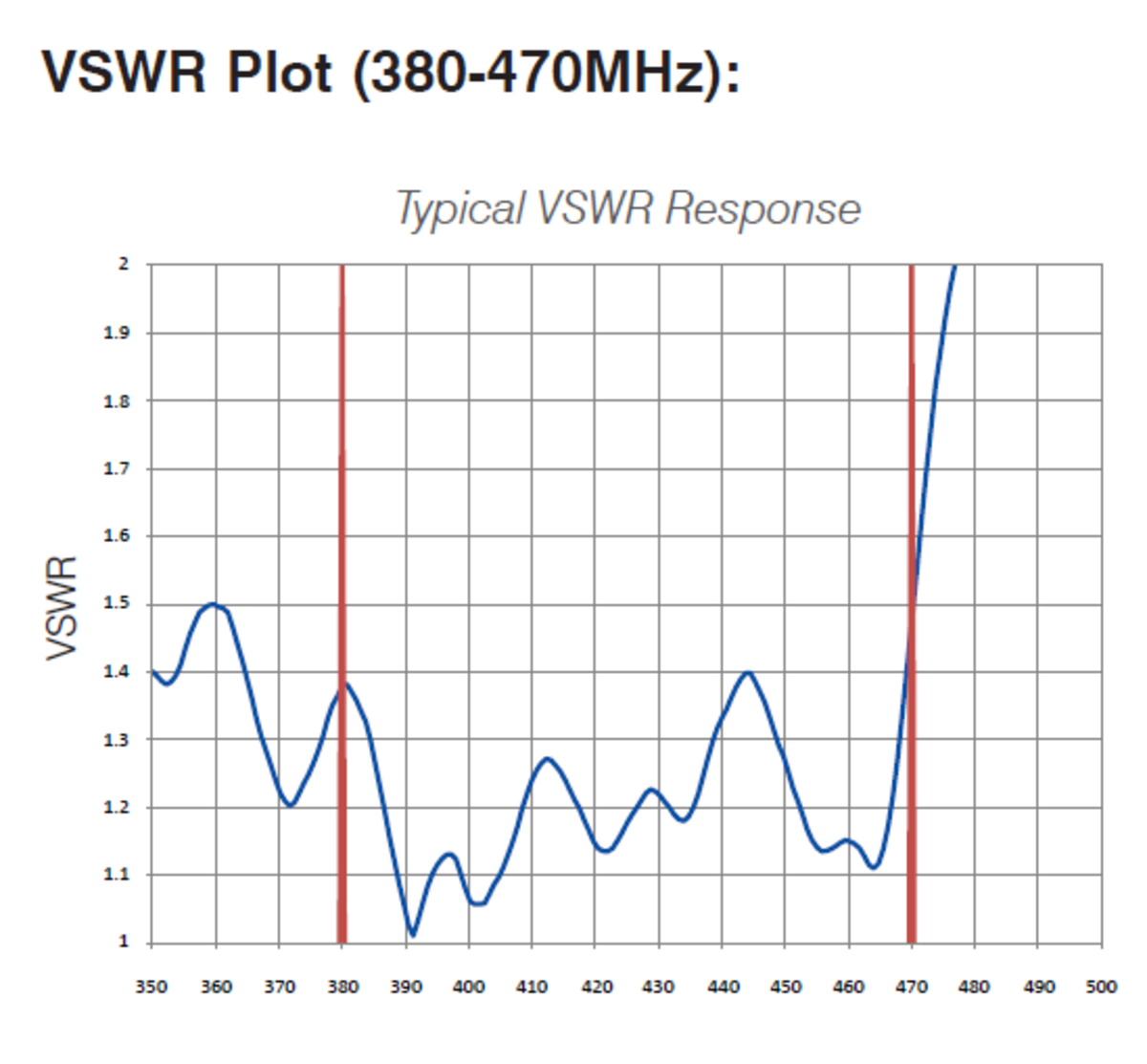

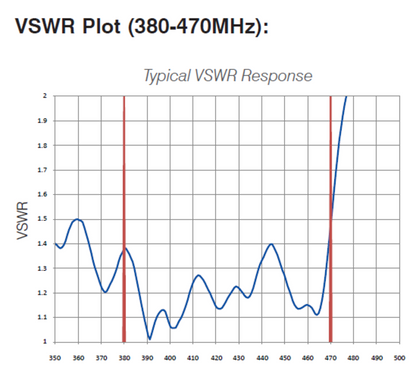

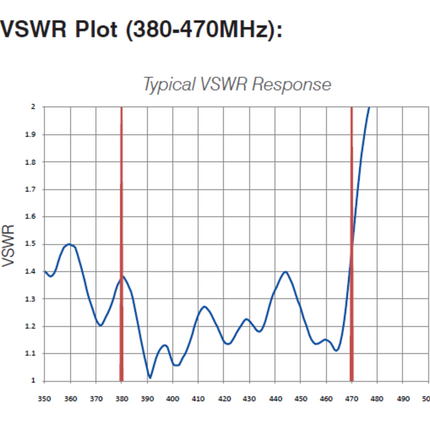

Vswr <1.7:1
Whip length mm 370
Whip material Highly flexible over-moulded whip
Width 3
