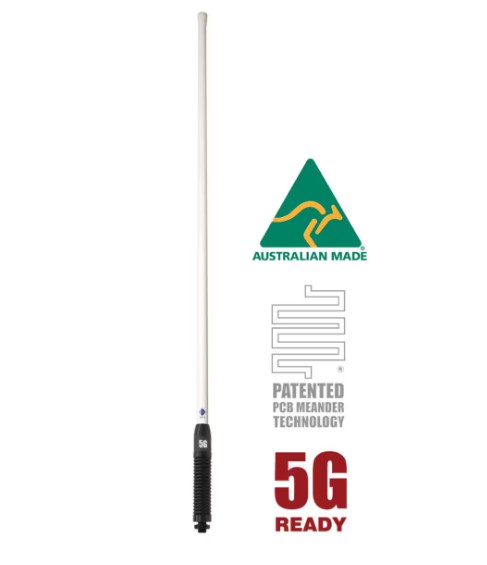

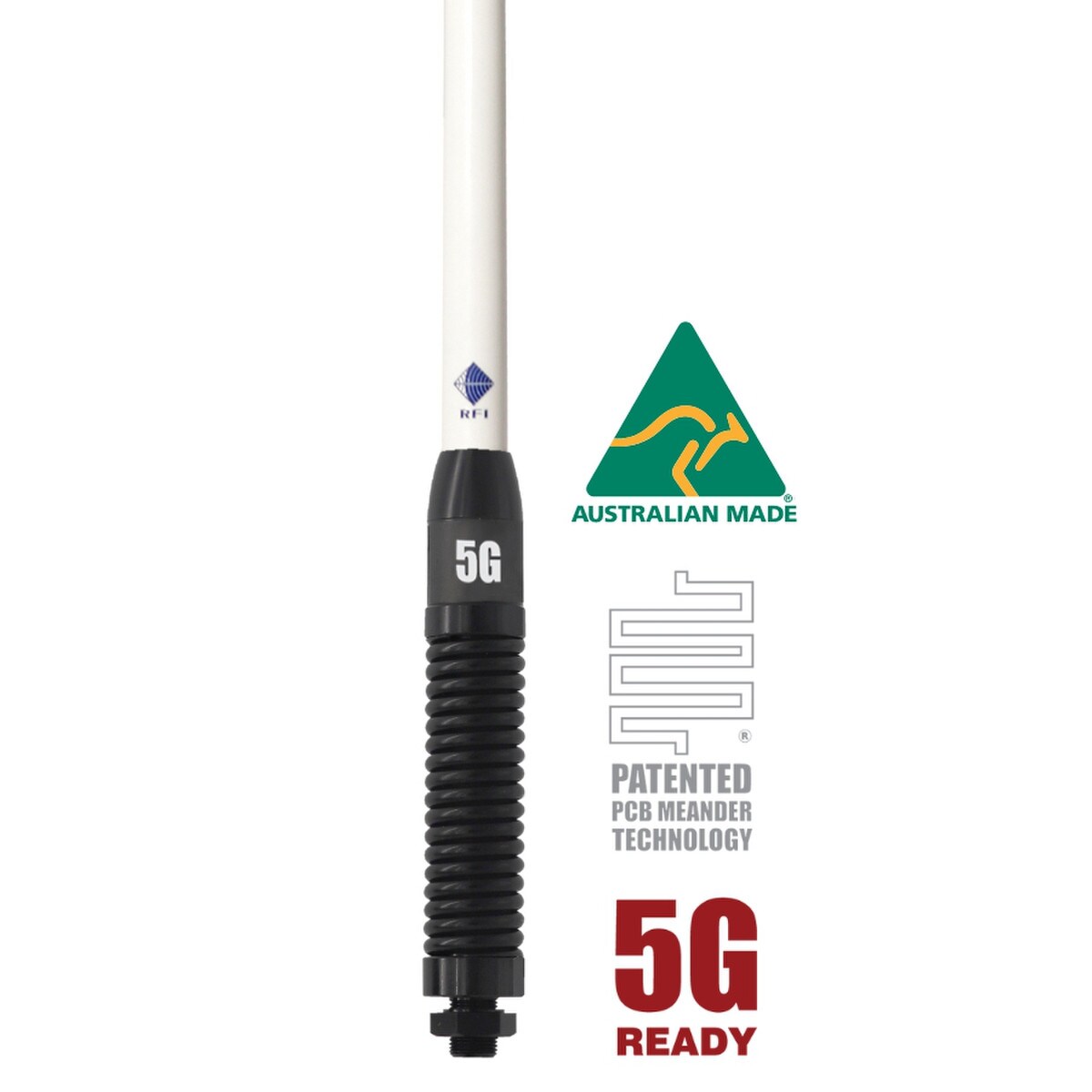

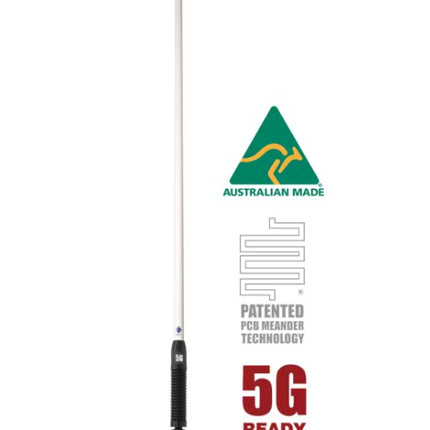

The RFI CD8195-WB is a 5G LTE collinear antenna, operates on frequencies from 698 to 3800 MHz with a 6.5 dBi gain. It comes with a 5-meter cable and an SMA(M) connector. The antenna features a white radome and a black spring.
The newCD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of theCD8100 Series lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. TheCD8100 SeriesIncludes an integrated spring with threaded stud/nut for easy installation on vehicles.
Product Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suitable for fringe and rural applications.
Application Areas:
- Designed for use with 5G and 4G LTE networks, covering frequencies from 698 to 3800 MHz.
- Ideal for enhancing signal reception in rural, remote, and low-signal areas.
- Compatible with cellular modems and active repeaters for improved connectivity.
- Perfect for vehicle installations, ensuring stable mobile communication.
- Built to withstand harsh environmental conditions for reliable outdoor performance.
In the Box:
- RFI CD8195-WB 5G LTE Collinear Antenna
- White Radome
- Black Heavy-Duty Spring Assembly
- 5m Cable with SMA(M) Connector
Documents:
RFI CD8195-WB Antenna - Datasheet
RFI CD8195-WB Antenna - Specifications
RFI CD8195-WB Antenna - Installation Guide
