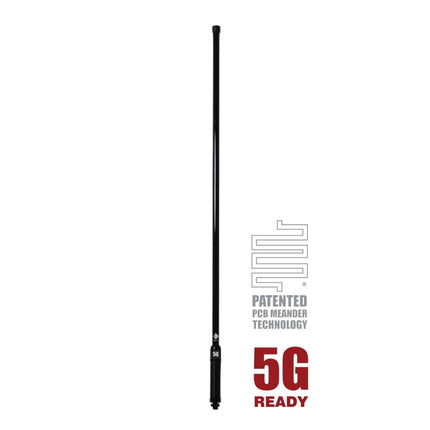

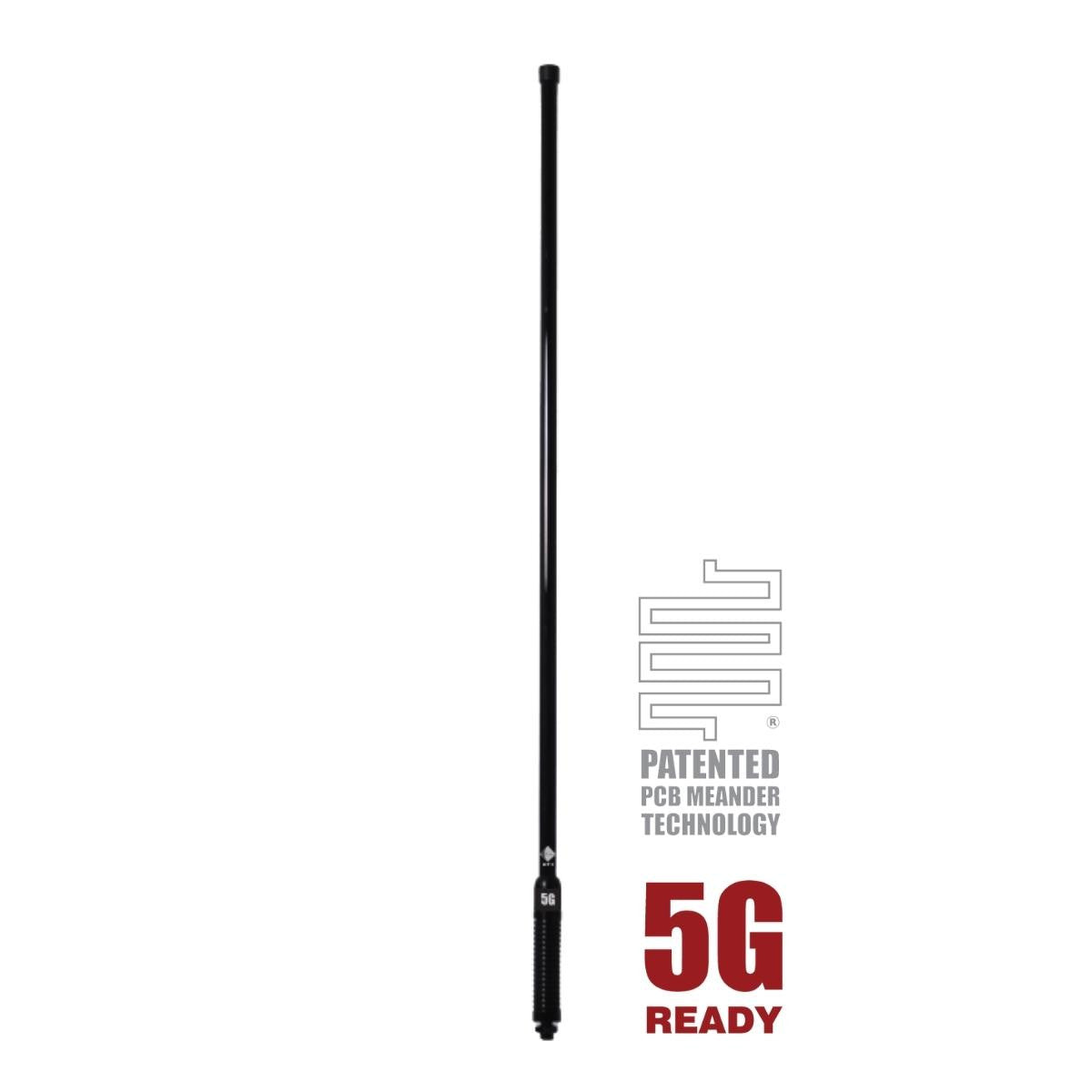

RFI CD8197-B Vehicle Antenna, 698-3800 MHz, 7.5 dBi, 5m, SMA-Male - Black

    RFI CD8197-B Vehicle Antenna, 698-3800 MHz, 7.5 dBi, 5m, SMA-Male - Black

      Product form
      Brand:
      RFI
      Item ID:
      167059495
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      CD8197-B
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The RFI CD8197-B collinear antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz) and are ideal for use with cellular modems & active repeaters, especially when signal is poor.

      Available

      $191.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

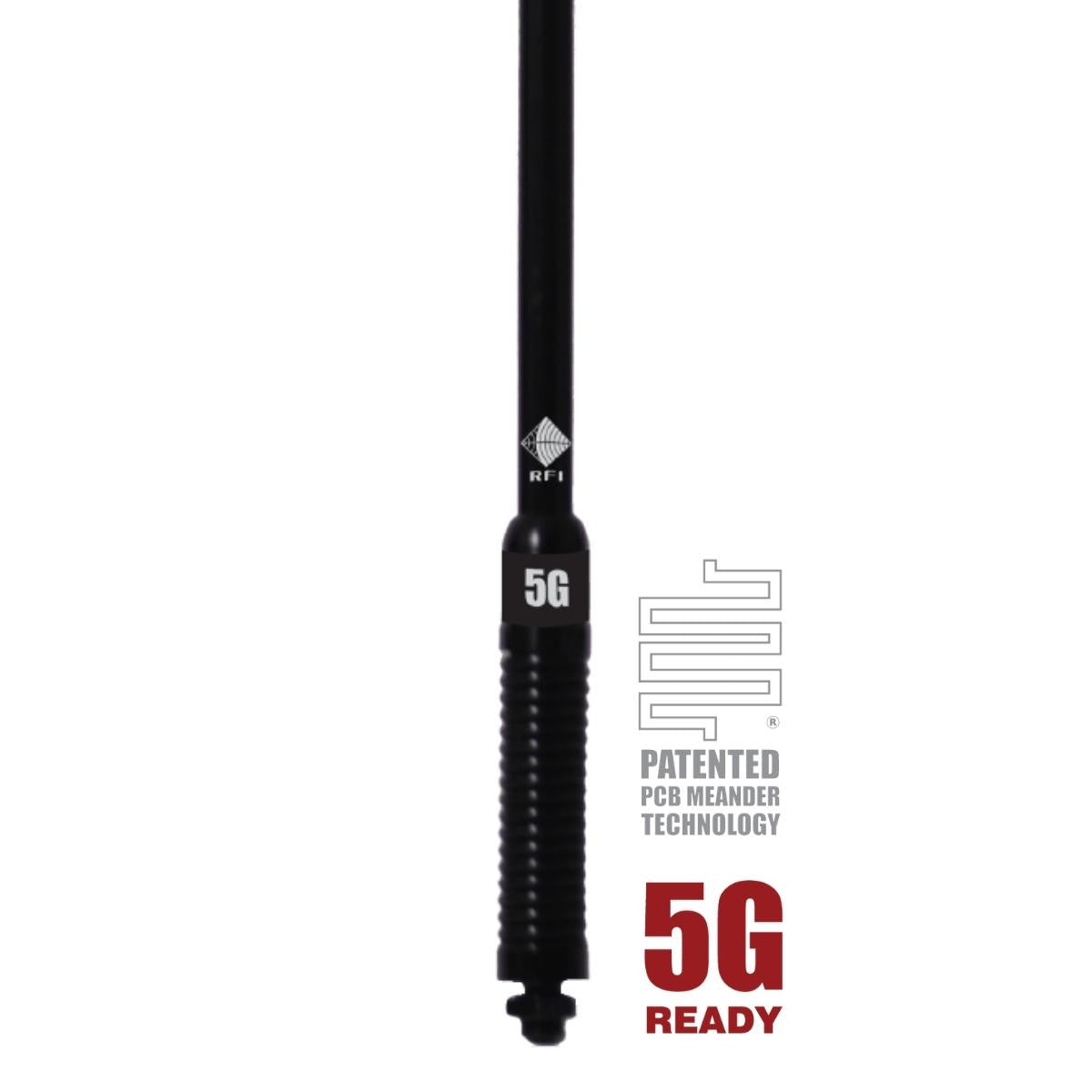

        The RFI CD8197-B collinear antennas (698-3800 MHz), featuring an integrated spring with threaded stud/nut for effortless vehicle installation. It is engineered with patented Meanderâ„¢ radiating elements that delivers unparalleled consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

        Features:

        • Integrated Spring: Facilitates easy installation on vehicles for hassle-free setup.
        • Comprehensive Coverage: Supports 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) and the new 5G LTE band (3400-3800 MHz) for enhanced connectivity.
        • Patented Meanderâ„¢ Radiating Elements: Ensures extraordinary gain stability and coverage pattern consistency.
        • Multi-band Compatibility: Ideal for use with new 5G/LTE networks, offering true multi-band coverage.
        • High Gain Performance: Provides high gain across all bands, making it suitable for fringe and rural applications.

        Documents:

        RFI CD8197-B Antenna - Datasheet RFI CD8197-B Antenna - Specifications RFI CD8197-B Antenna - Installation Guide

        Product Specifications

        MPN CD8197-B
        Antenna application Vehicle Antenna
        Antenna cable type RG58
        Antenna configuration SISO
        Antenna port connectors SMA (M)
        Antenna type Omni
        Brands RFI
        Cable and connector 5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector
        Cable length m 5
        Colour Black
        Connector SMA(M)
        Coverage type Omni-directional
        Frequency band Multi-Band 700 to 2700
        Frequency mhz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
        Frequency range mhz 1710 - 2170, 2300 - 2700, 698 - 960, 3400 - 3800
        Height 5
        Horizontal beamwidth Omni-directional
        Installation type Vehicle mounting
        Length 100
        Low pim No
        Max frequency mhz 3800
        Max gain dbd dbi 7.5
        Mimo support No
        Min frequency mhz 698
        Min gain dbd dbi 4.5
        Mount supported Stud mount
        Mount supported detailed Stud mount
        No of antenna ports 1
        Nominal gain dbi 7.5 / 4.5 / 5.5 / 6.5
        Packaging Retail Hanh Sell Bag
        Polarisation Linear
        Power w 10
        Technologies supported 4G, 5G
        Tuned bandwidth Full
        Vswr <2.5:1
        Whip material Fibreglass
        Width 5
