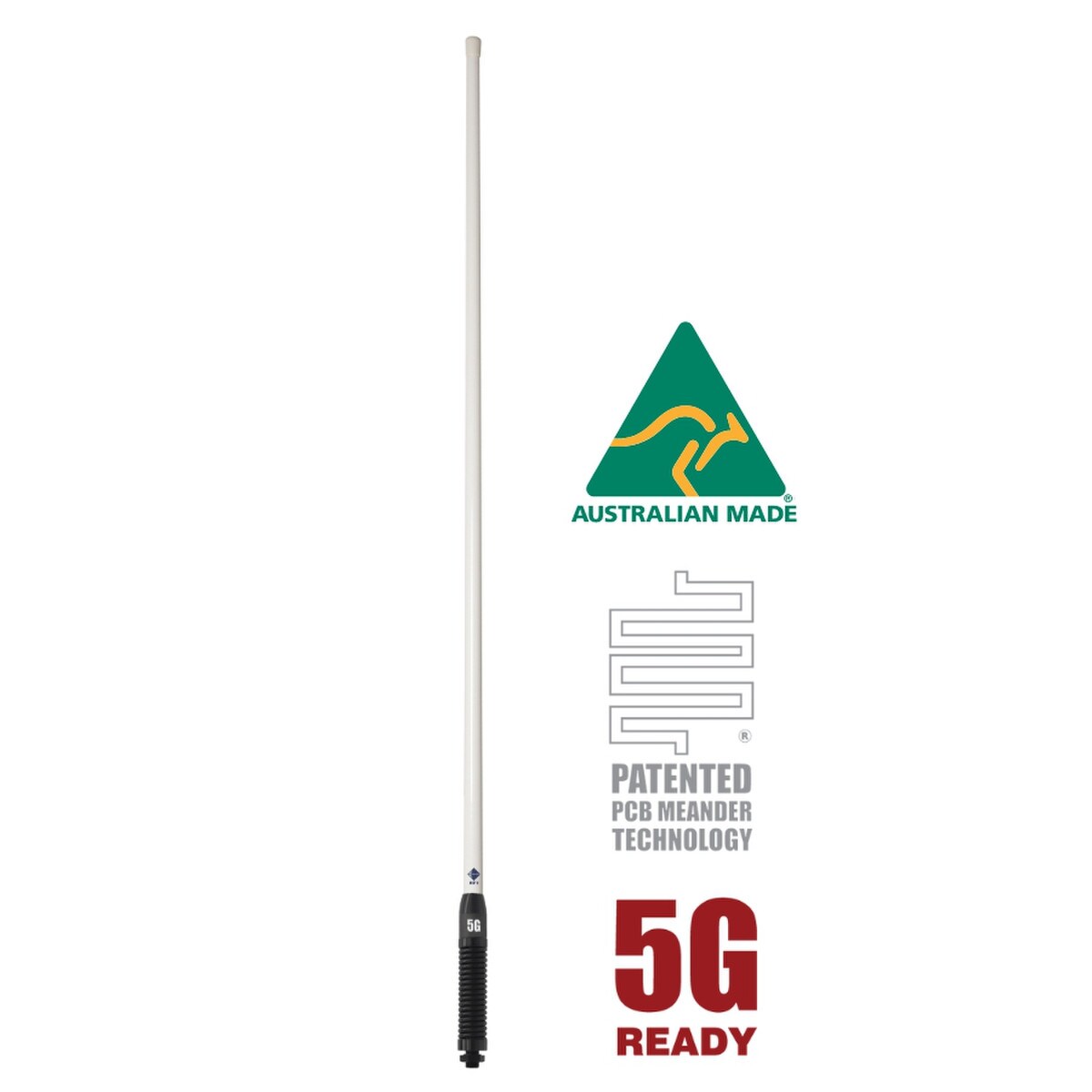

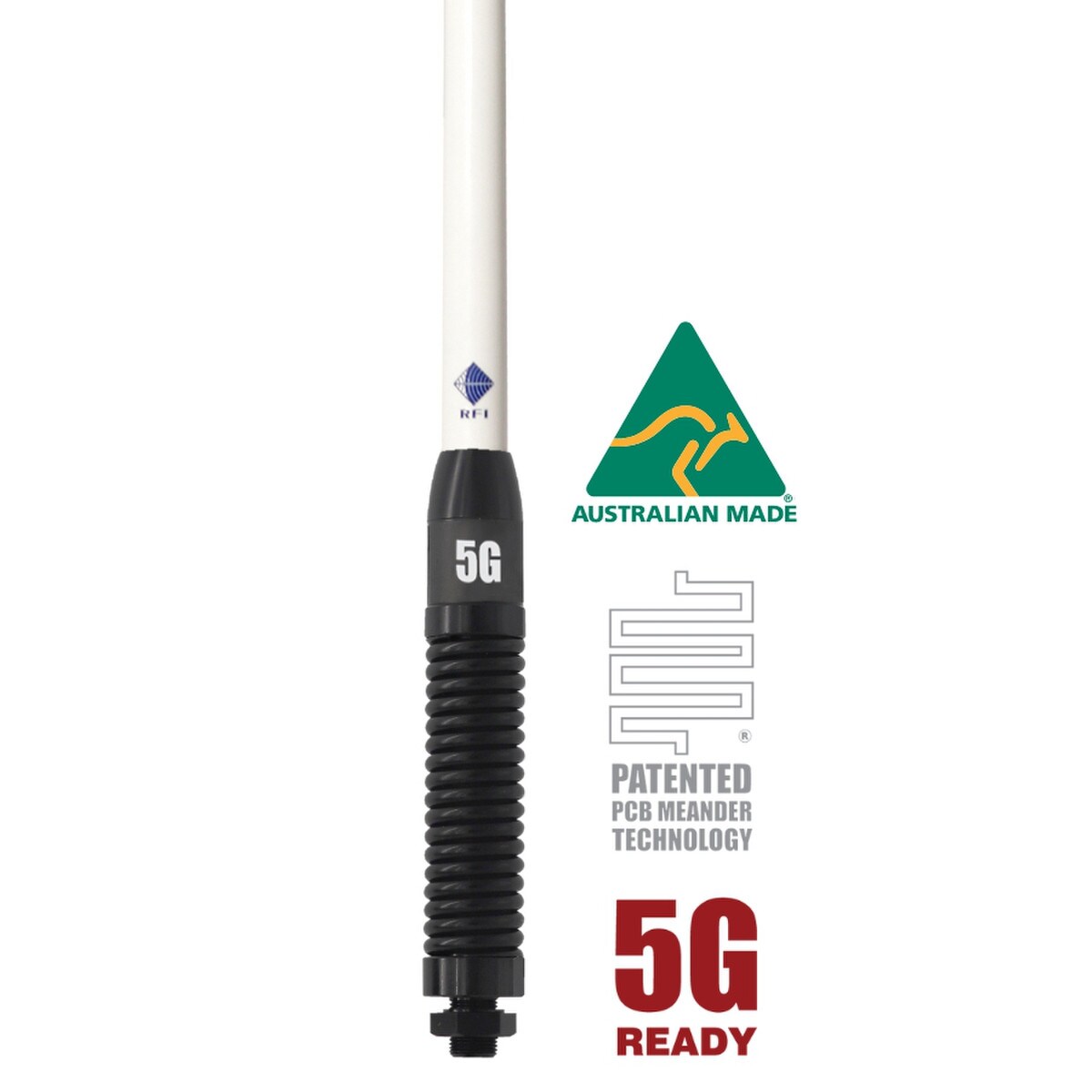

The RFI CD8197-WB is a 5G LTE collinear antenna that operates on frequencies from 698 to 3800 MHz with a 7.5 dBi gain. It comes with a 5m cable and an SMA(M) connector. The antenna features a white radome and a black spring. The CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz). It is ideal for use with cellular modems & active repeaters, especially when signal is poor. The outstanding performance of the CD8100 Series lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. TheCD8100 SeriesIncludes an integrated spring with threaded stud/nut for easy installation on vehicles.

Product Features:

• Patented PCB based collinear design offering the ultimate in pattern and gain stability.
• Ideal for new 5G/LTE networks with true multi-band coverage.
• High gain across all bands making it suiting fringe and rural applications.

Application Areas:

• Perfect for cellular modems, routers, and active repeaters, especially in areas with weak or poor signal reception.
• Suitable for mobile phone networks globally, offering reliable performance across different cellular bands.
• Perfect for outdoor and vehicle installations, providing durable and easy mounting options with the black spring assembly.
• Designed to operate effectively in challenging environmental conditions.

In the Box:

• RFI 5G LTE 7.5 dBi Collinear Antenna
• White Radome
• Black Spring Assembly
• 5m SMA(M) cable

Documents:

RFI CD8197-WB Antenna - Datasheet RFI CD8197-WB Antenna - Specifications RFI CD8197-WB Antenna - Installation Guide
