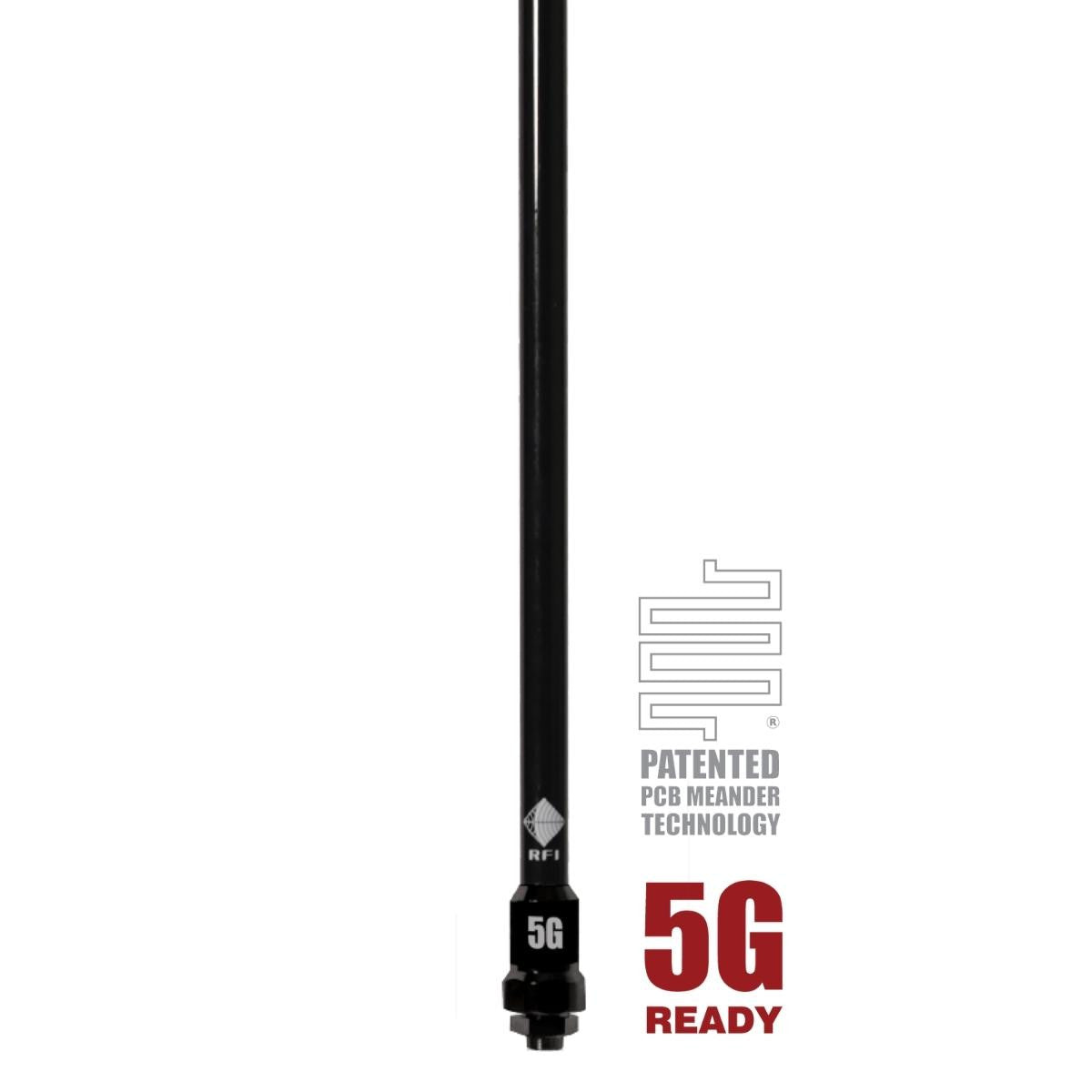

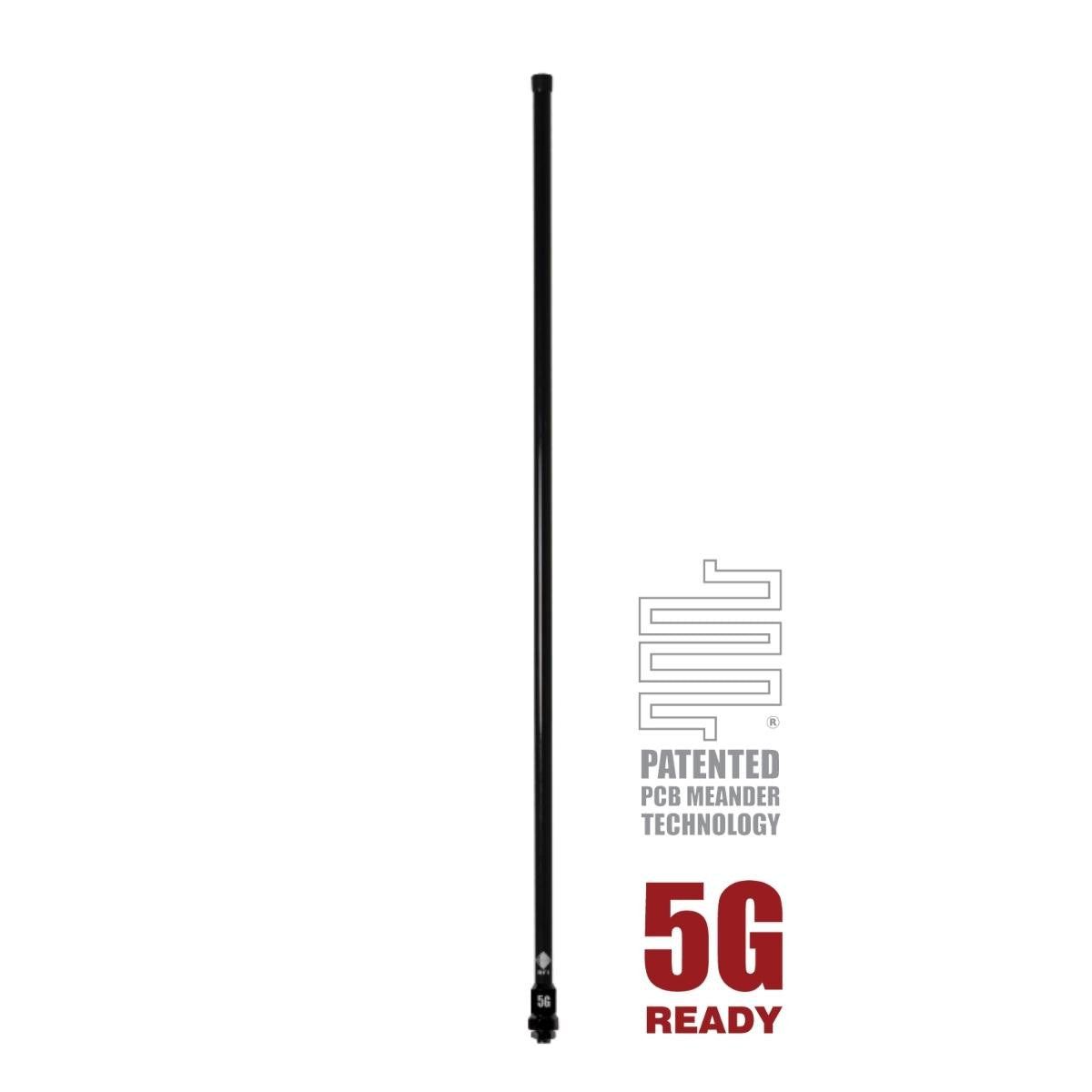

RFI CD8295 LTE Terminal Antenna, 698-3800 MHz, 6.5 dBi, 5m, SMA-Male - Black

RFI CD8295 LTE Terminal Antenna, 698-3800 MHz, 6.5 dBi, 5m, SMA-Male - Black

Available

Brand:
Item ID:
168014064
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CD8295
Send Request for Quote (RFQ) Discount Offers
RFI CD8295 Collinear Antenna is ideal for cellular modems & active repeaters. This 6.5 dBi antenna covers 698-3800 MHz and features a 5m SMA(M) cable.
Regular price $158.50
Regular price $0.00 Sale price $158.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI CD8295 is a high-gain LTE terminal antenna designed to deliver reliable signal performance across a wide frequency range of 698–3800 MHz. With a 6.5 dBi gain and a 5-meter SMA male-terminated cable, this antenna is ideal for use with cellular modems and active repeaters in areas with weak or inconsistent signal coverage.

Product Features:

  • The RFI CD8295 antenna incorporates a patented Meanderâ„¢ PCB collinear design that ensures consistent gain, bandwidth, and coverage pattern across all supported frequency bands.
  • It supports true multi-band operation, covering 4G LTE bands (698–960 MHz, 1710–2170 MHz, 2300–2700 MHz) and the 5G LTE band (3400–3800 MHz).
  • This model delivers 6.5 dBi gain, making it well-suited for fringe and rural environments where signal strength is limited.
  • It includes a 5-meter cable with an SMA male connector, offering flexibility for various installation needs.
  • The antenna is designed to operate seamlessly across all global mobile networks, ensuring broad compatibility.
  • It features a fixed mounting design with a ½” 26TPI threaded stud and nut for secure and stable installation.
  • The rugged construction supports long-term use in both indoor and outdoor fixed installations.

Application Areas:

  • This antenna is ideal for use with cellular modems and active repeaters in low-signal or remote areas.
  • It is suitable for fixed installations in industrial, commercial, or rural environments.
  • The antenna supports broadband connectivity for IoT, telemetry, and M2M communication systems.
  • It is a reliable solution for users seeking enhanced LTE/5G signal performance across multiple bands.

In the Box:

  • 1x RFI CD8295 LTE Terminal Antenna (6.5 dBi, 5m, SMA-Male – Black)

Documents:

RFI CD8295 Antenna - Datasheet RFI CD8295 Antenna - Specifications RFI CD8295 Antenna - Installation Guide

Product Specifications

MPN CD8295
Antenna application Terminal Antenna
Antenna cable type RG58
Antenna configuration SISO
Antenna features Omnidirectional, Multi Band Capable
Antenna port connectors SMA (M)
Antenna type Ground Independent, Collinears, Meander, Stud Mounted
Brands RFI
Cable and connector 5m of RG58 (9006) low loss cable terminated with SMA male connector
Cable length m 5
Cable type RG58
Colour Black
Connector SMA(M)
Coverage type Omni-directional
Frequency band Multi-Band 700-3800 MHz
Frequency mhz 698-960|1710-2170|2300-2700|3400-3800
Height 3
Horizontal beamwidth Omni-directional
Installation type Device mounting
Ip rating IP65
Length 81
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 6.5
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 4.5
Mount supported Stud mount
Mount supported detailed Stud mount
Mounting area 13-16mm hole
No of antenna ports 1
Nominal gain dbi 6.5 / 4.5 / 5.5 / 6.5
Packaging Poly Bag
Polarisation Vertical
Power w 10
Technologies supported 4G, 5G
Technology type 5GNR, LTE
Temperature range c -45 to +85
Tuned bandwidth Full.
Vertical beamwidth 25 / 30 / 20 / 15
Vswr <2.5:1
Whip material Firbeglass
Width 3
