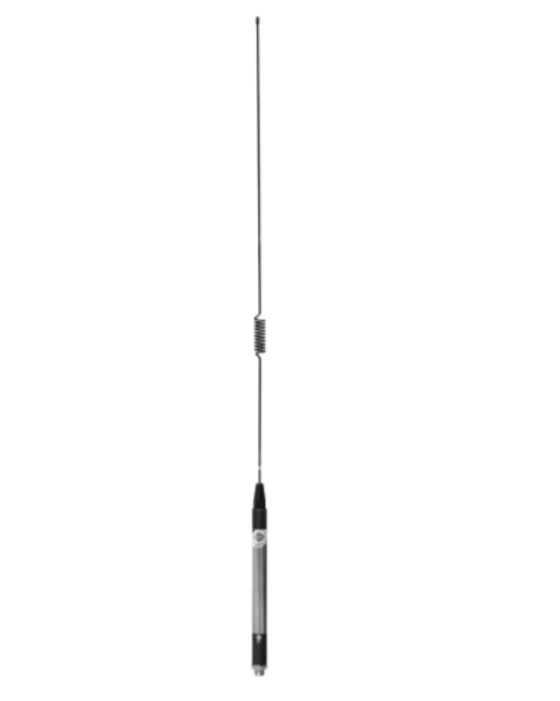

The RFI CD93 Antenna is a UHF Elevated Feed Mopole with a 6.5 dB gain, designed for the 400 MHz to 420 MHz frequency range. The model
CD93-65-70 is not fitted with any cable or connector. If you need a cable version, please consider model
CD93-65-73.
The RFI CD93 Series presents a range of high-performance elevated feed mobile antennas, designed to excel in various mounting positions. Whether mounted on a gutter or roof bar, these antennas deliver exceptional performance, offering a substantial 6.5 dB gain over standard 1/4 wave whip antennas.
Engineered for versatility and superior signal reception, the CD93 Series antennas are suitable for a wide range of applications and mounting scenarios. Their elevated feed design ensures optimal signal reception even when mounted high above a vehicle, providing reliable communication capabilities in challenging environments. With their high gain and versatile mounting options, the RFI CD93 Series antennas are an excellent choice for professionals seeking reliable, high-performance mobile antennas. Whether used for commercial, emergency, or recreational purposes, these antennas deliver exceptional performance and reliability, making them a valuable addition to any communication setup.
Product Features:
-
Ground Plane Independent: Totally ground plane independent for versatile mounting options.
-
Elevated Feed: Boosts the radiating element above obstructions for superior performance.
-
Phasemaster Whip Section: Provides exceptional performance and strength.
-
Quality Construction: Choke assembly crafted from chrome-plated solid brass for durability.
-
Compatibility: Can be used with a variety of mounts.
Mopole antennas, CD93, demonstrate a significant 6.5 dB increase in received signal level in practical field conditions compared to a standard 1/4 wave whip antenna. However, pattern tests reveal a more modest improvement of only 1.5 to 2 dB over a 1/4 wave (equivalent to 1.5-2 dBi). This enhanced performance can be attributed to the lower radiation angle of these ground-independent antennas.
Documents:
RFI CD93 Antenna - Datasheet
