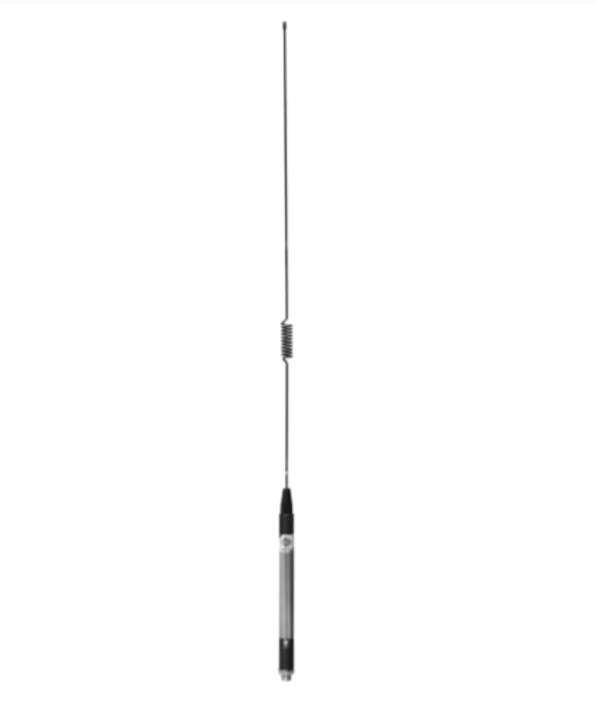

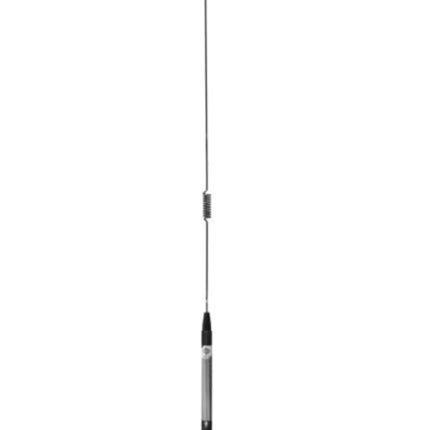

RFI CD93-72-73 UHF Antenna - Mopole, 490-520 MHz, 6.5 dB, 5m, No Connector

    RFI CD93-72-73 UHF Antenna - Mopole, 490-520 MHz, 6.5 dB, 5m, No Connector

      Product form

      This model CD93-72-73 is supplied with a 5m RG58 cable with no connector attached. The CD93 Series is high performance elevated feed mobile antennas which can.

      Brand
      RFI
      Export
      Accepted
      Item ID
      168015655
      MPN
      CD93-72-73
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $195.18

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        This model CD93-72-73 is supplied with a 5m RG58 cable with no connector attached. The CD93 Series is high performance elevated feed mobile antennas which can be used in virtually any mounting position. When gutter or roof bar mounted, high above a vehicle and delivers a full 6.5dB of gain over a 1/4 wave whip.

        Product Features:

        • Totally ground plane independent
        • Elevated feed boosts radiating element above obstructions - Phasemaster whip section provides superior performance and strength
        • Quality construction - choke assembly is crafted from solid brass and available in both chrome and black finishes
        • Can be used with a variety of mounts
        Mopole antennas such as the CD93 have been shown to exhibit a 6.5 dB improvement in received signal level in the field when compared to a ¼ wave whip however in pattern tests exhibit only 1.5 to 2 dB over a ¼ wave (equivalent to 1.5-2 dBi). This improvement in performance can be attributed to a lower radiation angle level of these ground independent antennas.

        Documents:

        RFI CD93 Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length (cm) 81
        Width (cm) 3
        Height (cm) 3
        Antenna Application Vehicle Antenna
        Antenna Cable Type RG58
        Antenna Port Connectors Not included, order separately
        Antenna Type Ground Independent
        Cable And Connector 5m RG58 Cable, No Connector
        Cable Length (m) 5
        Coverage Type Omni-directional
        Frequency Band UHF 380-520 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 520
        Max Gain (dBd/dBi) 6.5
        MIMO Support No
        Min Frequency (MHz) 490
        Min Gain (dBd/dBi) 6.5
        Mount Supported Stud mount
        Mount Supported - Detailed Stud mount
        No. of Antenna Ports 1
        Nominal Gain [dBq] 6.5
        Power [W] 100
        Technologies Supported UHF
        Tuned Bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        VSWR <1.6:1
        Whip Length mm 810 max (Includes whip and choke section)
        Whip Material 17-7PH stainless steel with black high gloss finish
