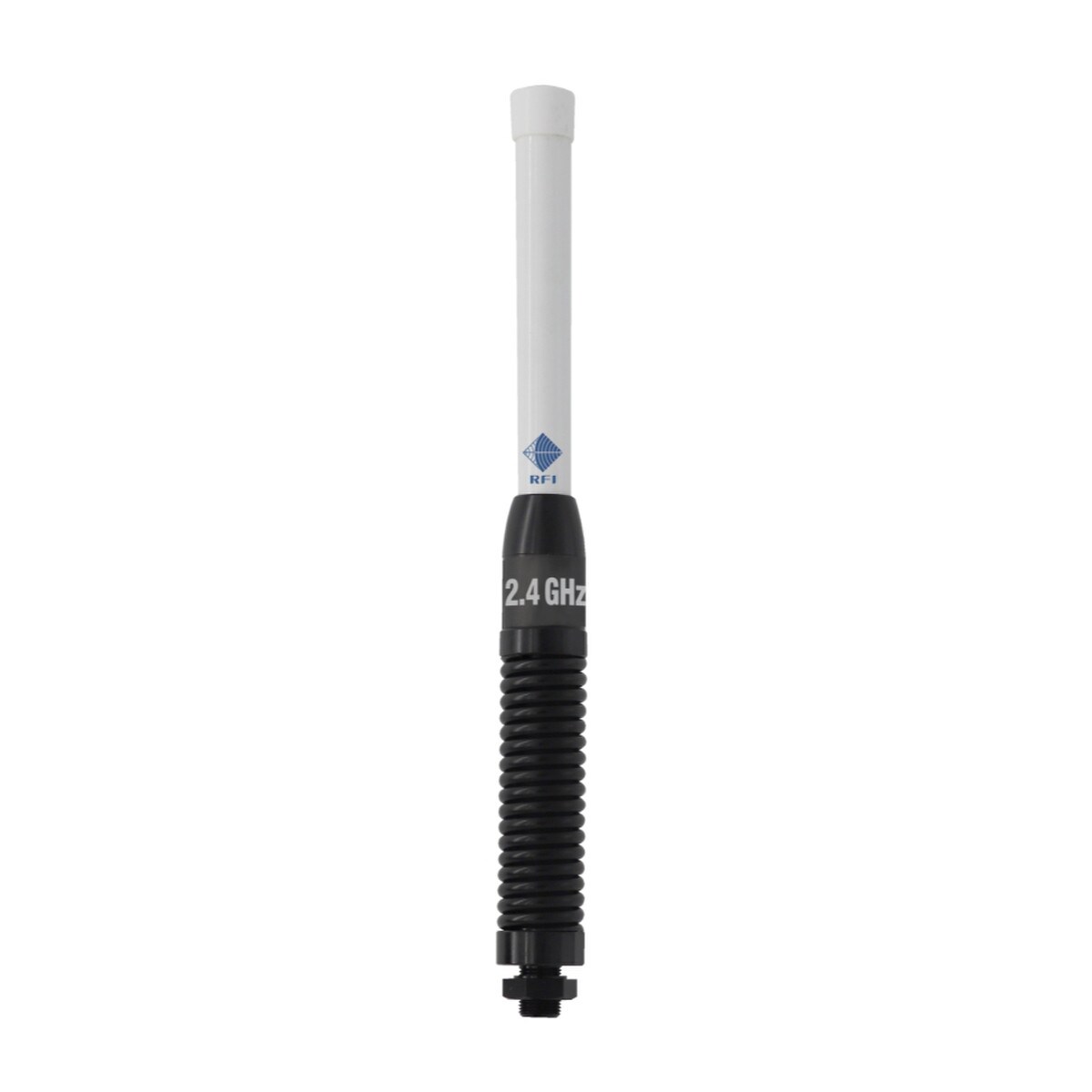

RFI CDM2408-WB Mobile WiFi Antenna, 2.4 GHz, 8 dBi, 5m SMA-Male - White Radome/Black Spring

    RFI CDM2408-WB Mobile WiFi Antenna, 2.4 GHz, 8 dBi, 5m SMA-Male - White Radome/Black Spring

      Product form

      The RFI CDM2408-WB is a mobile WiFi antenna designed for 2.4 GHz frequency with a 8 dBi gain. It features a 5-meter cable with an SMA(M) connector.

      Brand
      RFI
      Export
      Accepted
      Item ID
      168070692
      MPN
      CDM2408-WB
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $188.48

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The RFI CDM2408-WB mobile WiFi antenna is designed for 2.4 GHz frequency with a 8 dBi gain. It features a 5-meter cable with an SMA(M) connector and comes with a white radome and black spring for added durability and flexibility. Ideal for mobile or vehicle-based WiFi applications. The CDM2400 series utilise a patented PCB based collinear design offering the ultimate in pattern stability. Their ground independent design makes them suitable for a variety of mounting positions including bullbar, gutter and roof rack.

        Product Features:

        • Robust construction
        • Integrated heavy duty spring
        • Outstanding performance

        Application Areas:

        • Vehicle & Fleet Connectivity
        • Remote & Outdoor IoT Applications
        • Marine & Off-Road Communication
        • Construction & Mining Sites
        • Fixed Wireless Internet & Hotspots

        In the Box:

        • RFI CDM2408-WB Mobile WiFi Antenna
        • Cable: 5m

        Documents:

        RFI CDM2408-WB Mobile Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length (cm) 55
        Width (cm) 8
        Height (cm) 8
        Antenna Application Vehicle Antenna
        Antenna Configuration SISO
        Antenna Port Connectors SMA (M)
        Antenna Type Ground Independent, Spring Mount, Vehicle
        Cable And Connector Supplied with 5.0m Cellfoil cable terminated with SMA male connector
        Cable Length (m) 5.0
        Cable Type CellFoil
        Coverage Type Omni-directional
        Frequency [MHz] 2400 - 2500
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 2500
        Max Gain (dBd/dBi) 8.0
        MIMO Support No
        Min Frequency (MHz) 2400
        Min Gain (dBd/dBi) 8.0
        Mount Supported Stud mount
        Mount Supported - Detailed Stud mount
        No. of Antenna Ports 1
        Nominal Gain [dBi] 8
        Polarisation Vertical
        Technologies Supported Wi-Fi
        Tuned Bandwidth Full. No tuning required
        VSWR <1.5:1
