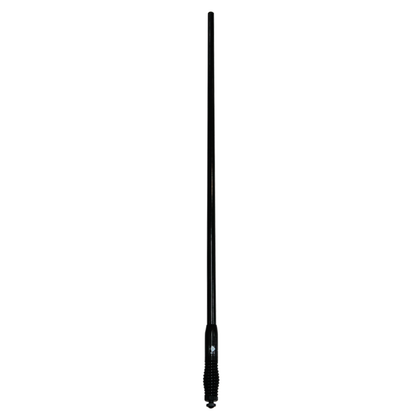

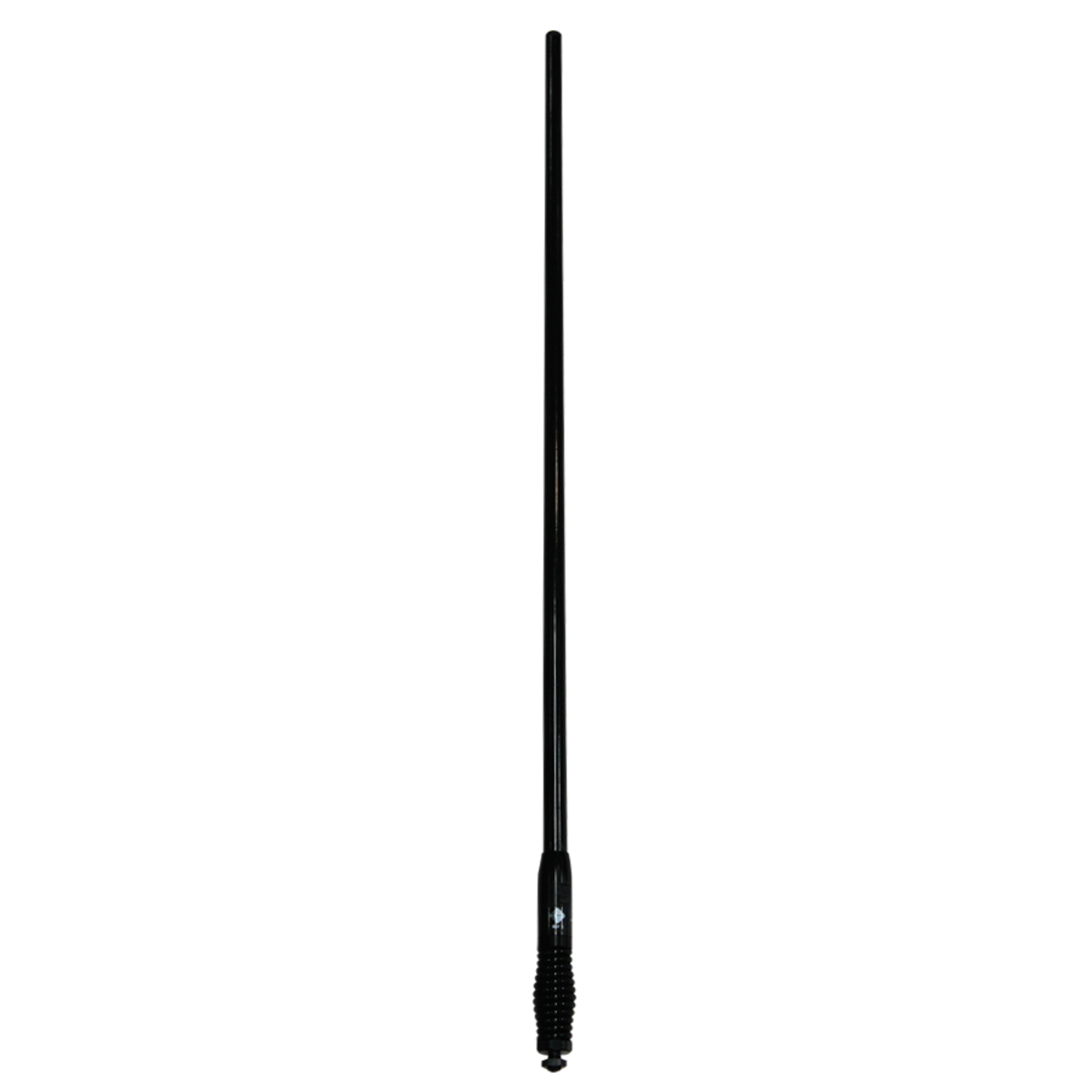

The RFI CDQ5000 antenna operates over a full frequency band of 477 MHz and features Q-Fit removable whip system, allowing for quick removal in low-clearance areas like car parks or car washes. It includes a waterproof cap to protect the antenna connection from water and dust when the whip is detached. Built with a heavy-duty electro-polished stainless steel spring, the CDQ5000 is ideal for installation on commercial vehicles, 4WDs, and trucks. Its performance is driven by a unique PCB radiator and patented Meander circuit, ensuring exceptional gain and pattern consistency. The CDQ5000 antenna comes fitted with 5m RG58 cable terminated with a FME-Female connector for ease of installation. A UHF adaptor is also included to connect to a radio vase station.

Product Features:

• Patented PCB based Meander collinear design offering the ultimate in pattern and gain stability.
• The antenna offers 5 dBi gain across the full 477 MHz UHF CB band.
• The antenna comes fitted with 5m RG58 cable and FME-Female connector.

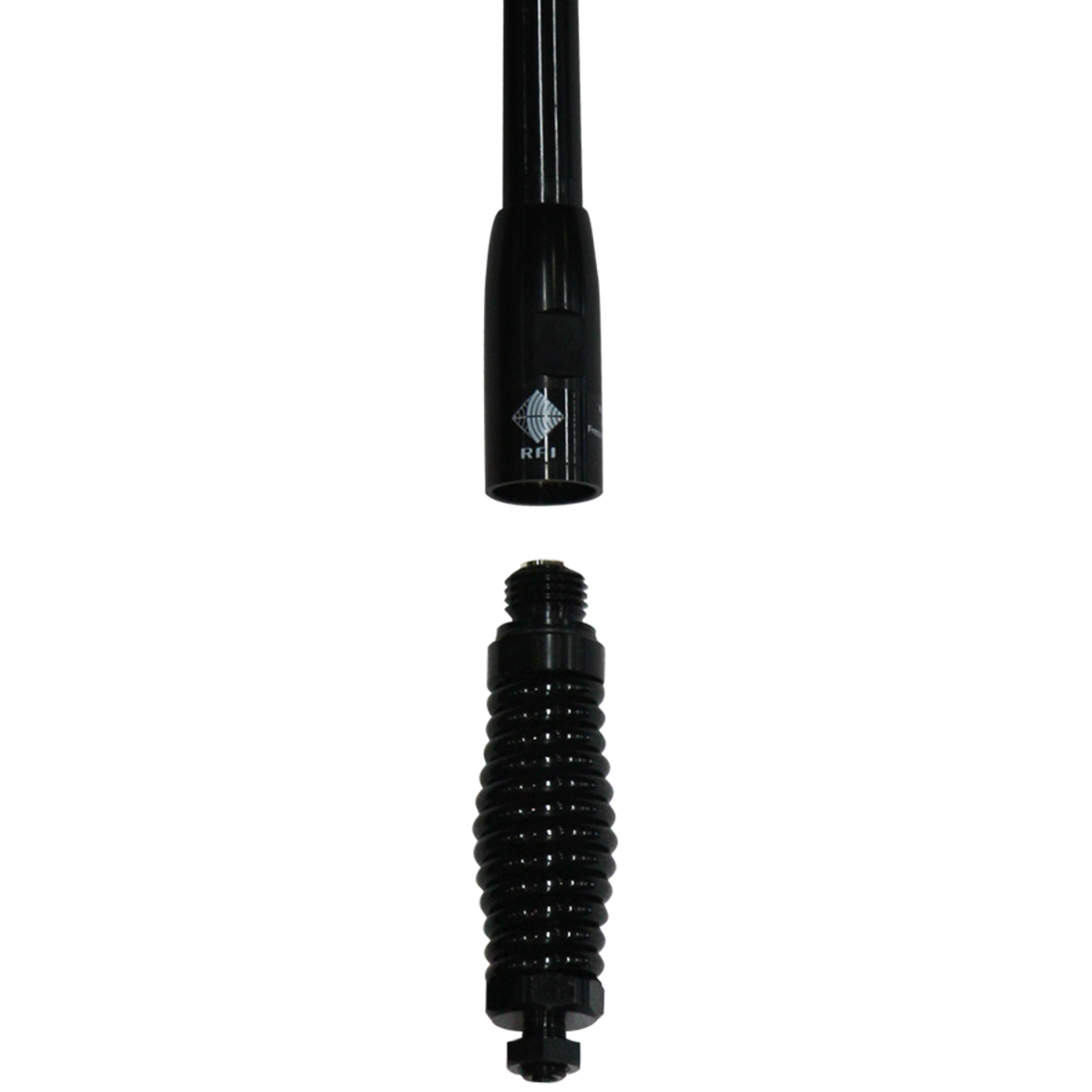

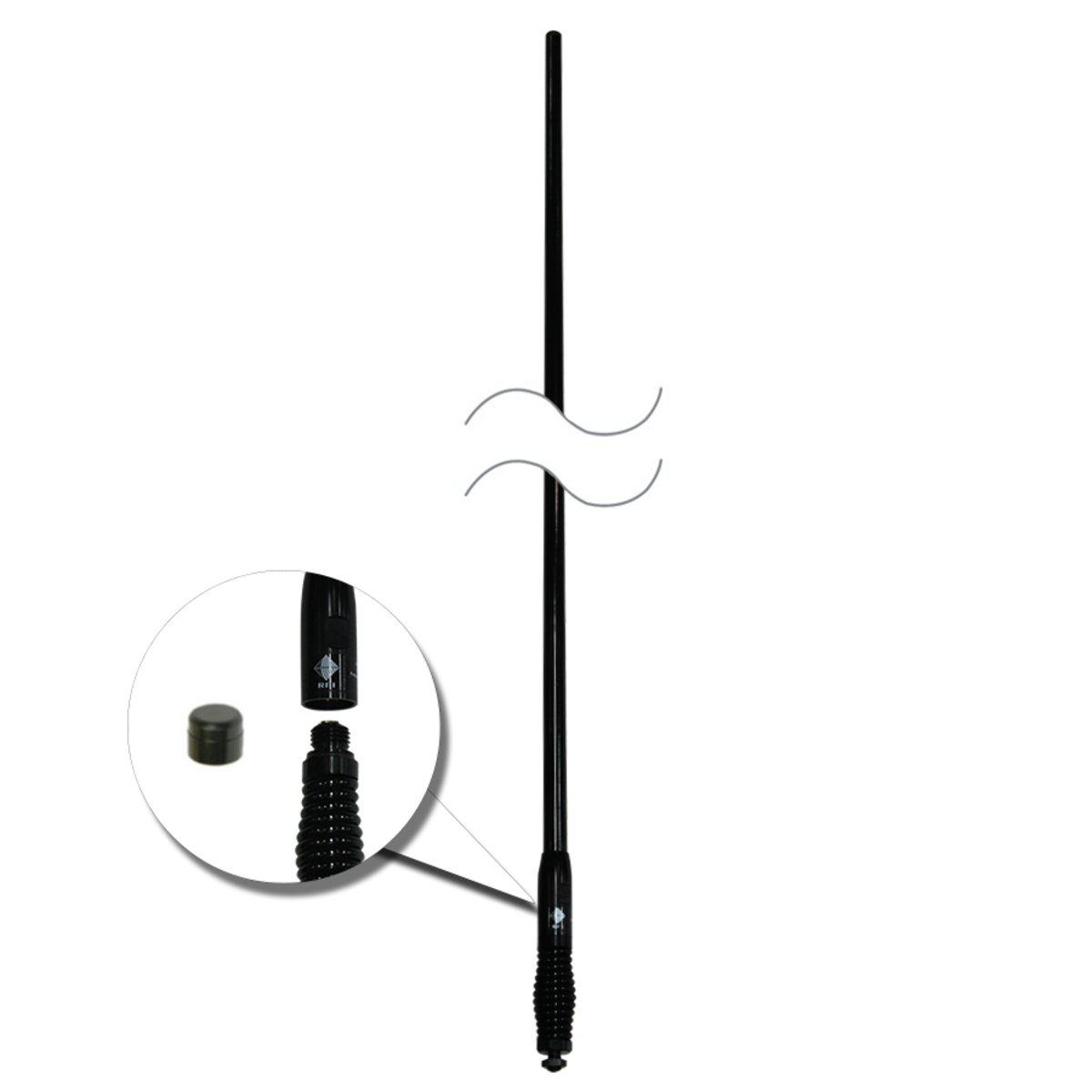

• Q-Fit removable whip system allows for ease of removal in low height environments such as multi-story car parks, car wash's or for security.
• This is a ground-independent antenna and can be mounted on a metallic surface.

In The Box:

• 1x RFI CDQ5000 antenna fitted with 5m RG58 cable and terminated with FME-Female connector
• 1x FME to UHF adaptor

Documents:

RFI CDQ5000 Antenna - Datasheet
