RFI CDQ8195-W 5G Vehicle Antenna, 698-3800 MHz, 6.5 dBi, 5m, SMA-Male - White

    RFI CDQ8195-W 5G Vehicle Antenna, 698-3800 MHz, 6.5 dBi, 5m, SMA-Male - White

      Product form
      Brand:
      Item ID:
      168014083
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      CDQ8195-W

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The RFI CDQ8195-W is a high-gain 5G LTE vehicle antenna designed for extended coverage across 698–3800 MHz. With 6.5 dBi gain and a Q-Fit whip

      Sold-out/Backorder

      $283.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

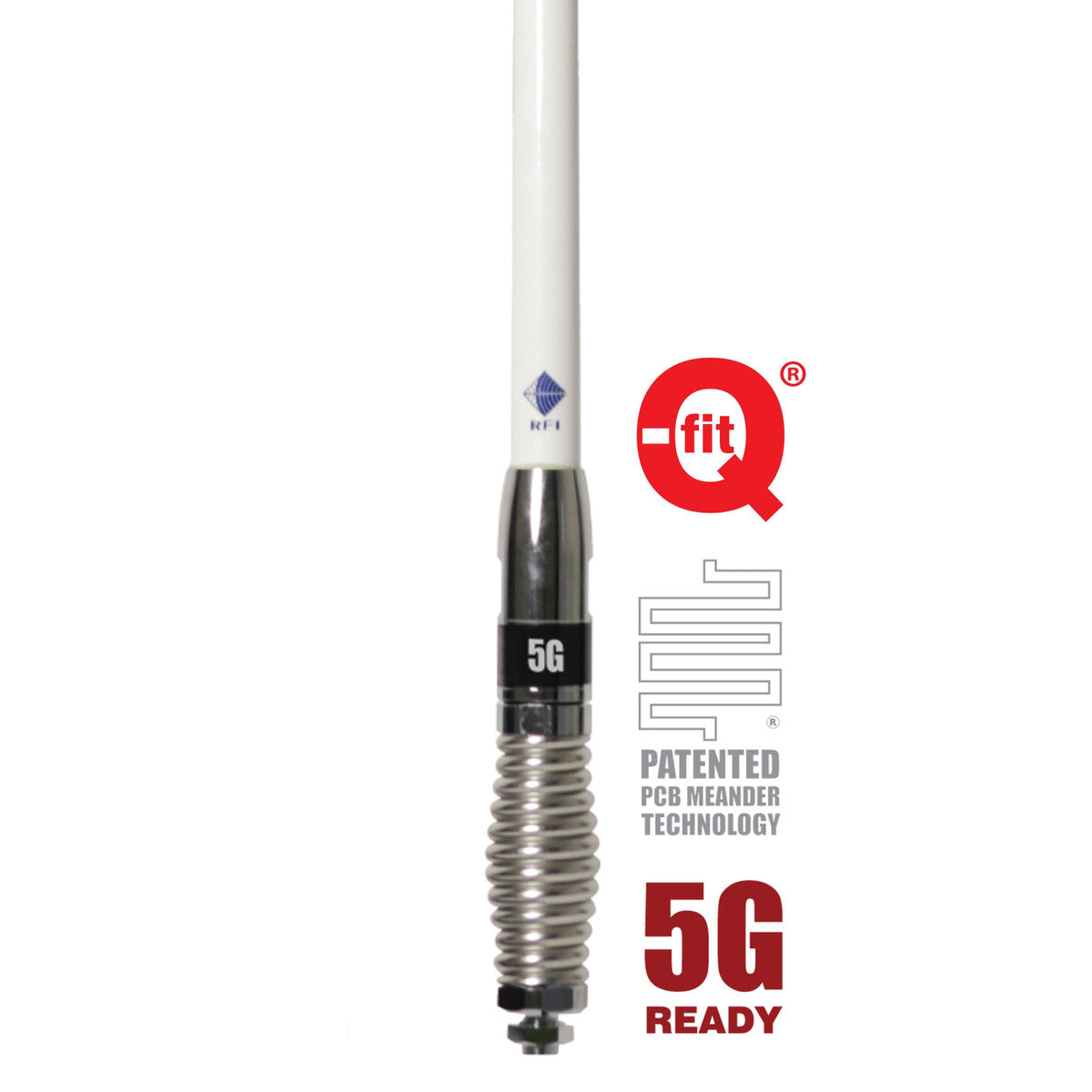

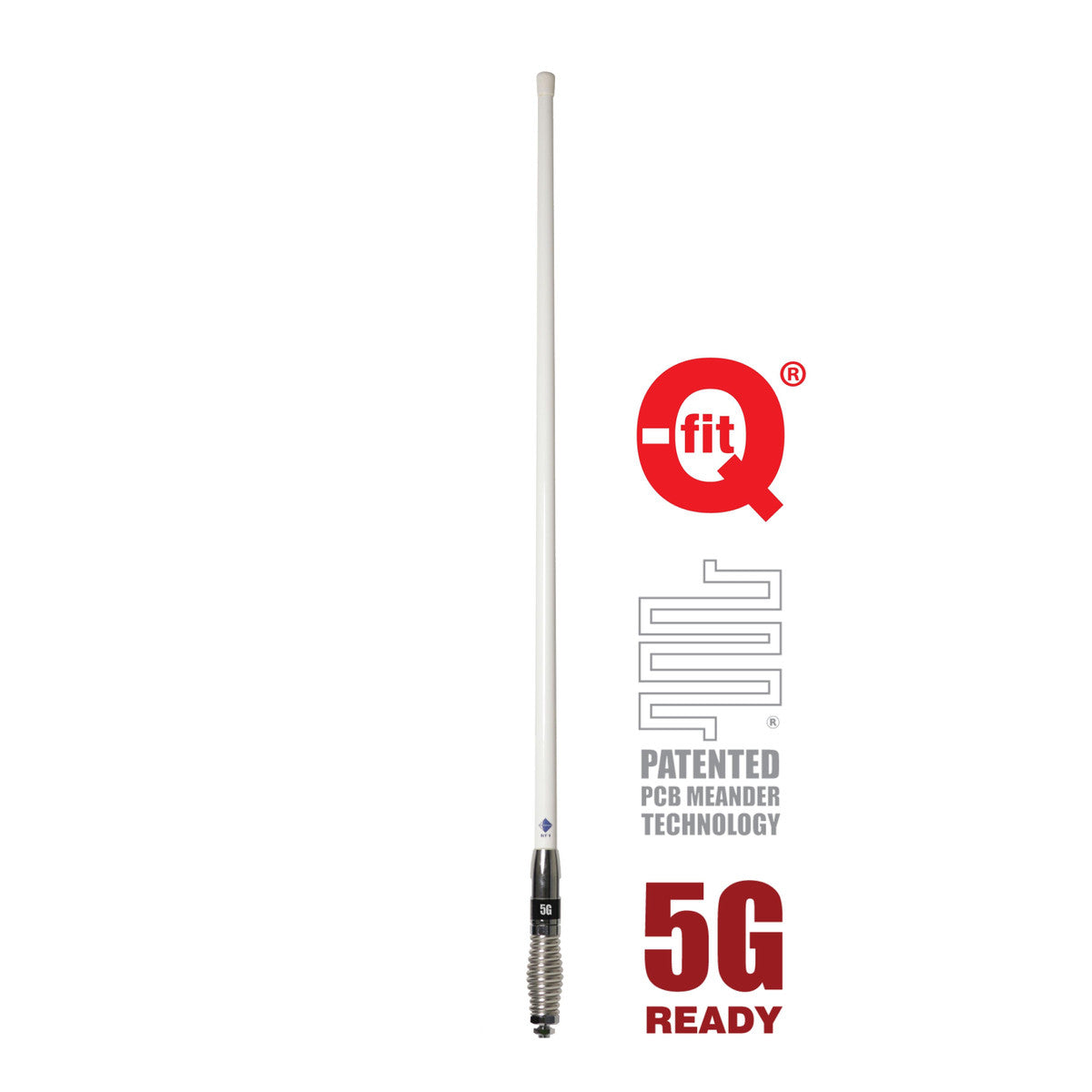

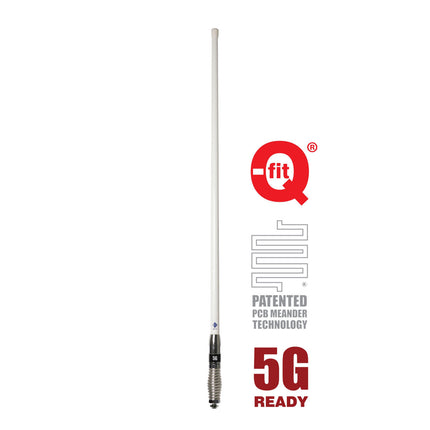

        The RFI CDQ8195-W is a high-gain 5G LTE vehicle antenna designed for extended coverage across 698–3800 MHz. With 6.5 dBi gain and a Q-Fit® removable whip, it is ideal for mobile use in rural areas.

        Product Features:

        • The antenna uses a patented Meanderâ„¢ PCB collinear design for stable gain and bandwidth.
        • It supports multi-band operation across all major 4G and 5G LTE frequencies.
        • This model delivers 6.5 dBi gain, optimized for fringe and rural applications.
        • It includes a 5-meter RG58 low-loss cable with SMA male connector.
        • The integrated spring and threaded stud/nut simplify vehicle installation.
        • It features a Q-Fit® removable whip for easy detachment in low-clearance areas.

        Application Areas:

        • This antenna is ideal for vehicles in remote or low-signal environments.
        • It is suitable for use with cellular modems and repeaters.
        • The antenna supports mobile broadband for transport and emergency services.

        In the Box:

        • 1x CDQ8195-W Whip
        • 1x Spring Assembly with 5m RG58 Cable (SMA Male)

        Documents:

        RFI CDQ8195-W Antenna - Datasheet RFI CDQ8195-W Antenna - Specifications RFI CDQ8195-W Antenna - Installation Guide

        Product Specifications

        MPN CDQ8195-W
        Antenna application Terminal Antenna, Vehicle Antenna, Mobile Antenna
        Antenna cable type RG58
        Antenna configuration SISO
        Antenna features Omnidirectional, Multi Band Capable
        Antenna port connectors SMA (M)
        Antenna type Ground Independent, Collinears, Meander, Spring Mount, Removeable Whip/Replacement Whip
        Brands RFI
        Cable and connector 5m of 9006 low loss cable terminated with SMA male connector
        Cable length m 5
        Coverage type Omni-directional
        Frequency band Multi-Band 700-2700 MHz
        Frequency mhz 698-960|1710-2170|2300-2700|3400-3800
        Height 5
        Installation type Vehicle mounting
        Ip rating IP67
        Length 99
        Low pim No
        Max frequency mhz 3800
        Max gain dbd dbi 6.5
        Mimo support No
        Min frequency mhz 698
        Min gain dbd dbi 4.5
        Mount supported Spring base
        Mount supported detailed Spring base
        Mounting area 13- 16mm hole
        No of antenna ports 1
        Nominal gain dbi 6.5 / 4.5 / 5.5 / 6.5
        Packaging Retail Hang Sell Pack
        Polarisation Vertical
        Power w 10
        Technologies supported 4G, 5G
        Temperature range c -45 to +85
        Tuned bandwidth Full
        Vswr <2.5:1
        Whip material Fibreglass
        Width 5
