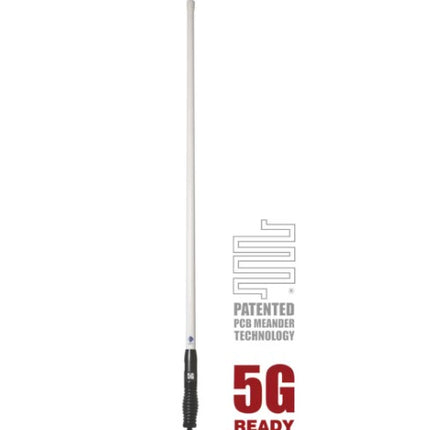

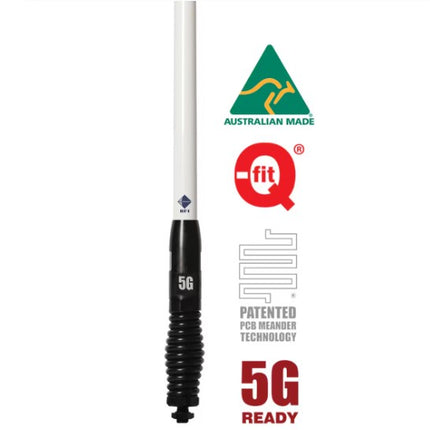

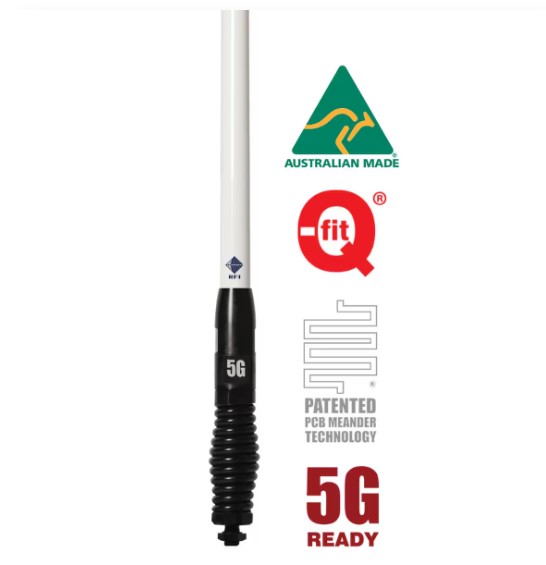

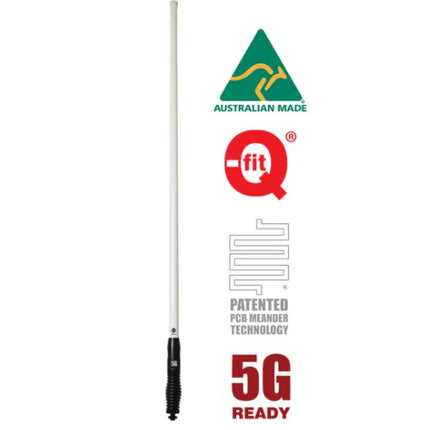

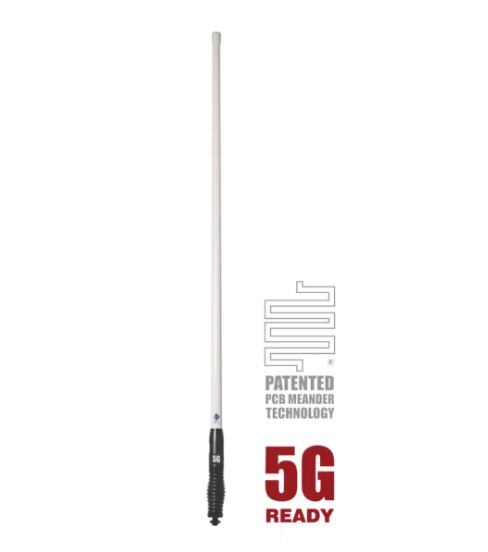

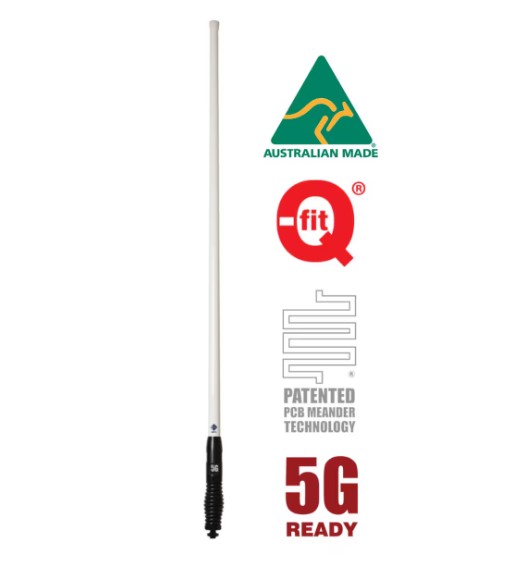

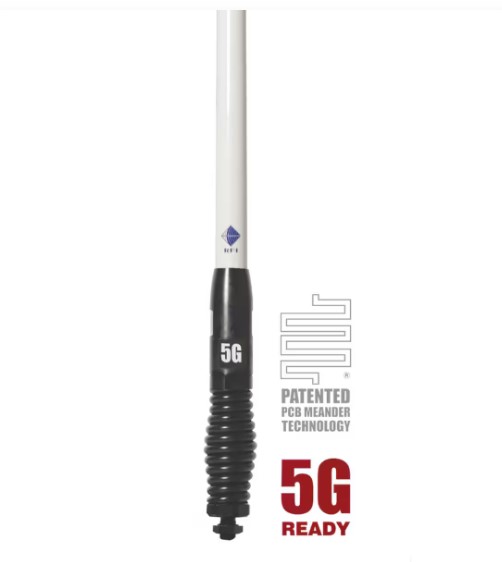

The RFI CDQ8199-WB is a 5G LTE collinear antenna designed to operate across frequencies from 698 to 3800 MHz, providing an 8.5 dBi gain. It comes with a 5m cable and an SMA(M) connector. The antenna is equipped with a white radome and a black spring, ensuring robust performance and reliable installation.
TheCDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz). It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. It is flagship product and is designed for the harsh Australian conditions. Includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Product Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.
Application Areas:
- 5G and LTE network communication
- Urban, suburban, and rural coverage enhancement
- Mobile broadband applications
- Fringe and remote area connectivity
- Vehicle and fleet communication systems
- Emergency services and first responder networks
- Commercial and industrial wireless applications
In the Box:
- RFI CDQ8197-WB 5G LTE Collinear Antenna Whip
- Protective waterproof cap
Documents:
RFI CDQ8199-WB Collinear Antenna - Datasheet
RFI CDQ8199-WB Collinear Antenna - Specifications
RFI CDQ8199-WB Collinear Antenna - Installation Guide
