RFI CDQ8199-WB-WHIP 5G LTE Collinear Antenna Whip, 698-3800 MHz, 8.5 dBi - White Radome/Black Ferrule

    RFI CDQ8199-WB-WHIP 5G LTE Collinear Antenna Whip, 698-3800 MHz, 8.5 dBi - White Radome/Black Ferrule

      Product form
      Brand:
      RFI
      Item ID:
      168070802
      MPN:
      CDQ8199-WB-WHIP
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI CDQ8199-WB-WHIP is 5G LTE collinear antenna whip, operating from 698 to 3800 MHz, with 8.5 dBi gain. It features a white radome and a black ferrule.

      Available

      $274.06

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

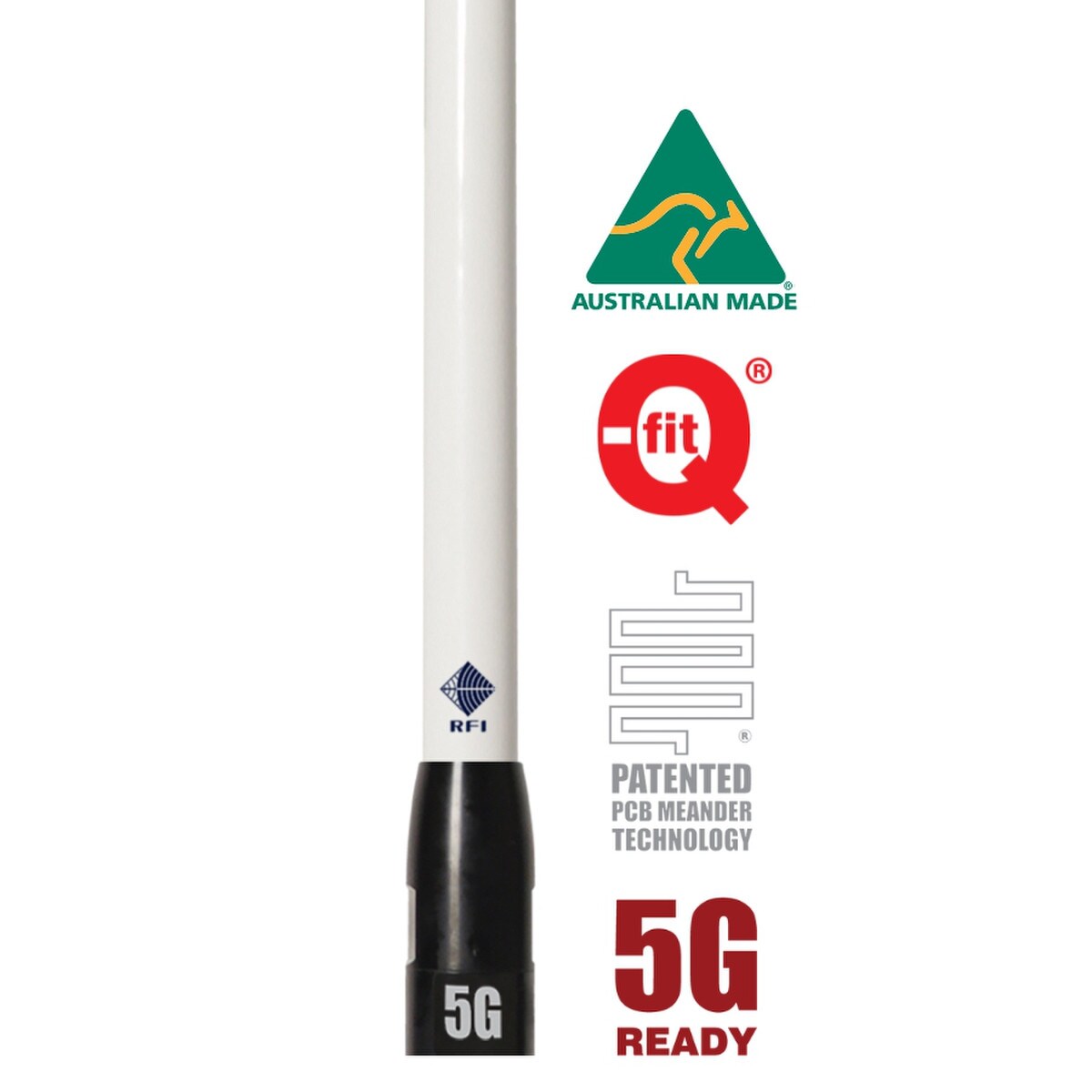

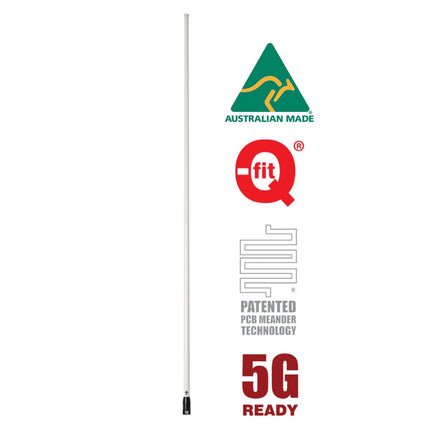

        The RFI CDQ8199-WB-WHIP is a 5G LTE collinear antenna whip, operating across frequencies from 698 to 3800 MHz, with an 8.5 dBi gain. It features a white radome and a black ferrule, providing both durability and optimal performance.

        Product Features:

        • Patented PCB based collinear design offering the ultimate in pattern and gain stability.
        • Ideal for new 5G/LTE networks with true multi-band coverage.
        • High gain across all bands making it suiting fringe and rural applications.
        • Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.

        Application Areas:

        • 5G and LTE Network Deployments
        • Rural and Fringe Area Connectivity
        • Commercial and Industrial Communication
        • Vehicle and Fleet Communication Systems
        • Public Safety and Emergency Services
        • Mining and Remote Site Applications
        • Marine and Offshore Communications
        • Smart City and IoT Applications

        In the Box:

        • RFI CDQ8199-WB-WHIP 5G LTE Collinear Antenna Whip
        • Waterproof Cap for Whip Removal

        Documents:

        RFI CDQ8199-WB Collinear Antenna - Datasheet RFI CDQ8199-WB Collinear Antenna - Specifications RFI CDQ8199-WB Collinear Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 8
        Width 12
        Height 220
        Antenna Application Vehicle Antenna
        Antenna Configuration SISO
        Antenna Port Connectors SMA (M)
        Antenna Type Collinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount, Vehicle
        Colour Black, White
        Coverage Type Omni-directional
        Frequency [MHz] 698-960 / 1710 / 2170 / 2300-2700 / 3400-3800
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 3800
        Max Gain (dBd/dBi) 6.5
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 4.5
        Mount Supported Threaded stud
        Mount Supported - Detailed M16 x P1.0 threaded stud and nut
        No. of Antenna Ports 1
        Polarisation Vertical
        Power [W] 10.0, 10
        Radome Diameter Mm 22-16
        Technologies Supported 4G, 5G
        VSWR <2.5:1
