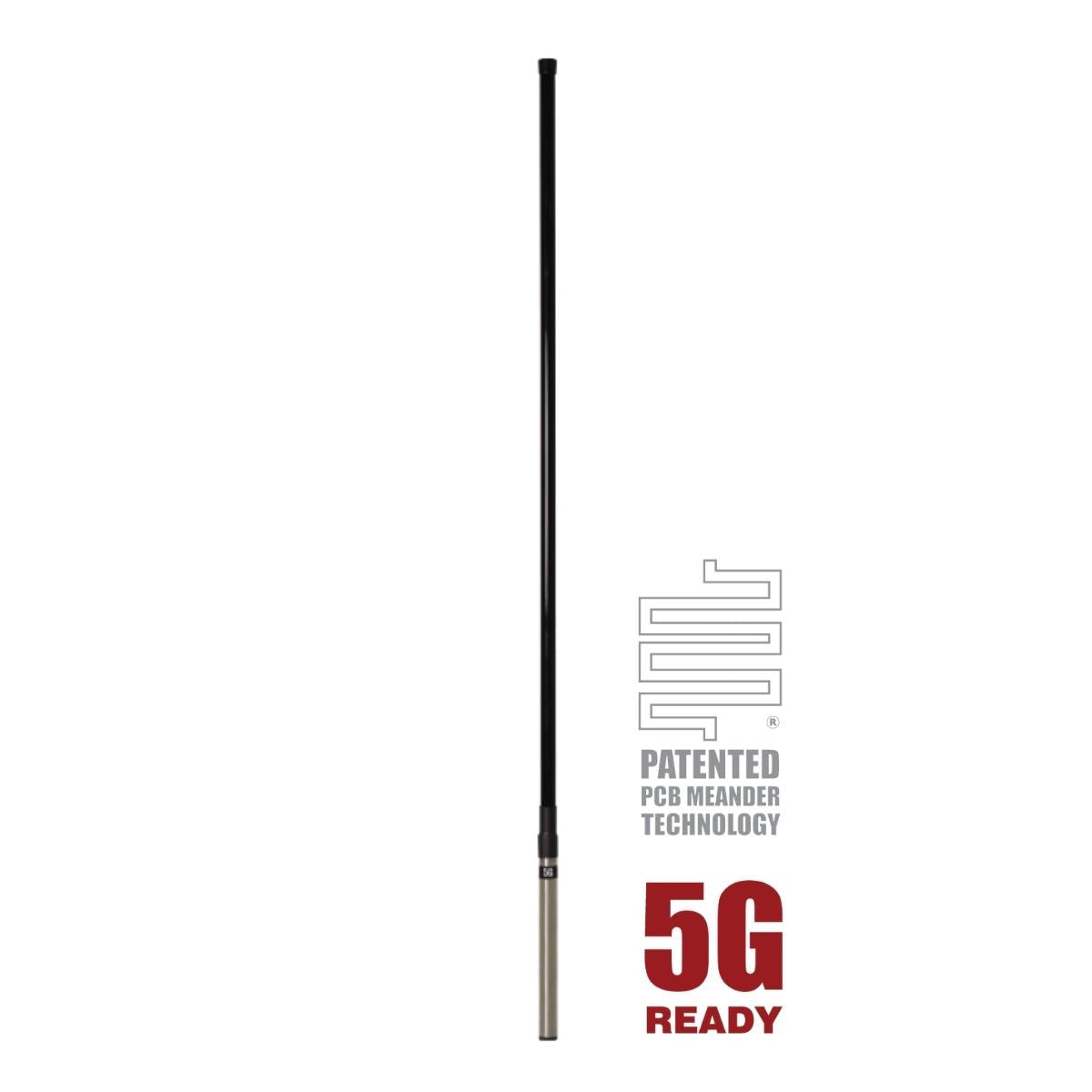

RFI COL8195-5M-N Collinear Antenna is meticulously designed to embrace both current 4G LTE bands and the latest 5G LTE band (3400-3800 MHz), ensuring a heightened connectivity experience. The COL8100 Series derives its exceptional performance from patented Meanderâ„¢ radiating elements, interconnecting to provide unparalleled consistency in gain, coverage pattern, and bandwidth. Experience outstanding connectivity across global mobile networks encapsulated in a single, reliable unit.
Features:
- Coverage: Encompasses 698-3800 MHz, including the latest 5G LTE band, for comprehensive connectivity.

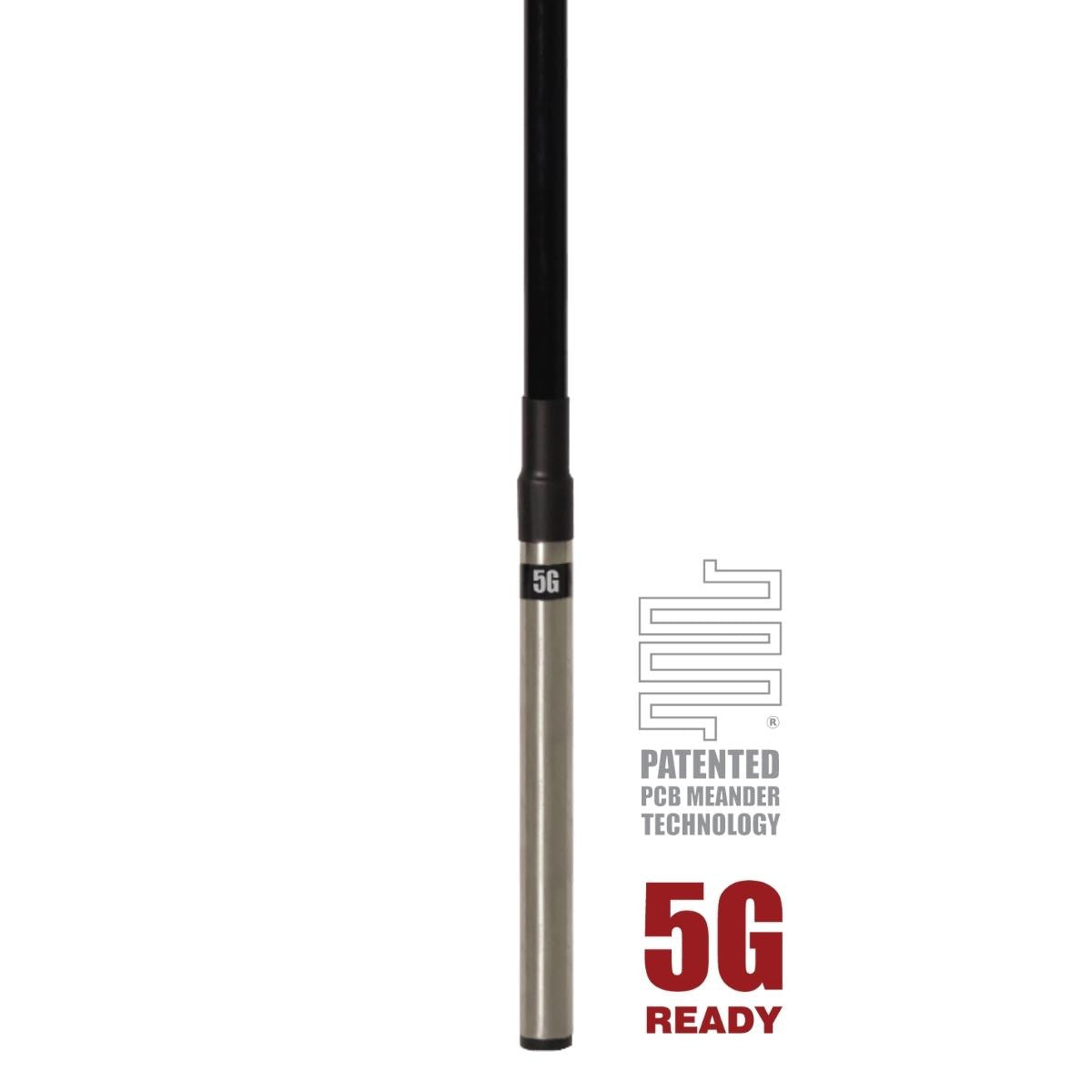

- Mounting: The COL8100 Series equipped with a 200 mm x 19 mm stainless steel mounting tube for secure vertical support installation.
- Design: Patented PCB-based collinear design ensures consistent pattern and gain stability.
- Multi-Band Coverage: Tailored for emerging 5G/LTE networks, offering genuine multi-band coverage.
- High Gain: Delivers high gain across all bands, addressing fringe and rural areas seamlessly.
- Optimized Compatibility: Specifically designed for compatibility with cellular modems and active repeaters, ideal for low signal areas.
Electrical Specifications:
- Frequency MHz: 698-960 / 1710-2170 / 2300-2700 / 3400-3800
- Nominal Gain dBi: 6.5 / 4.5 / 5.5 / 6.5
- Vertical Beamwidth°: 25 / 30 / 20 / 15
- Turned Bandwidth: Full
- VSWR: <2.5:1
- Nominal Impedance: Ω 50
- Input Power W: 10
Mechanical Specifications:
- Construction: Fibreglass
- Mounting: Stainless Steel 200 x 19 mm Mounting Tube. Supplied with 2 x Stainless Steel Hose Clamps (Adjustable from 27-51 mm)
- IP Rating: IP65
- Operating Temperature °C: -45 to +85
- Wind Gust Rating km/h: 240
Documents:
RFI COL8195-5M-N Antenna - Datasheet
RFI COL8195-5M-N Antenna - Specifications
RFI COL8195-5M-N Antenna - Installation Guide
