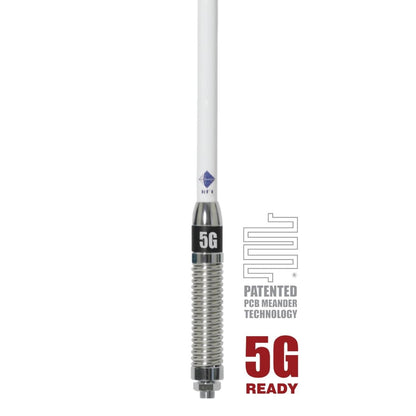

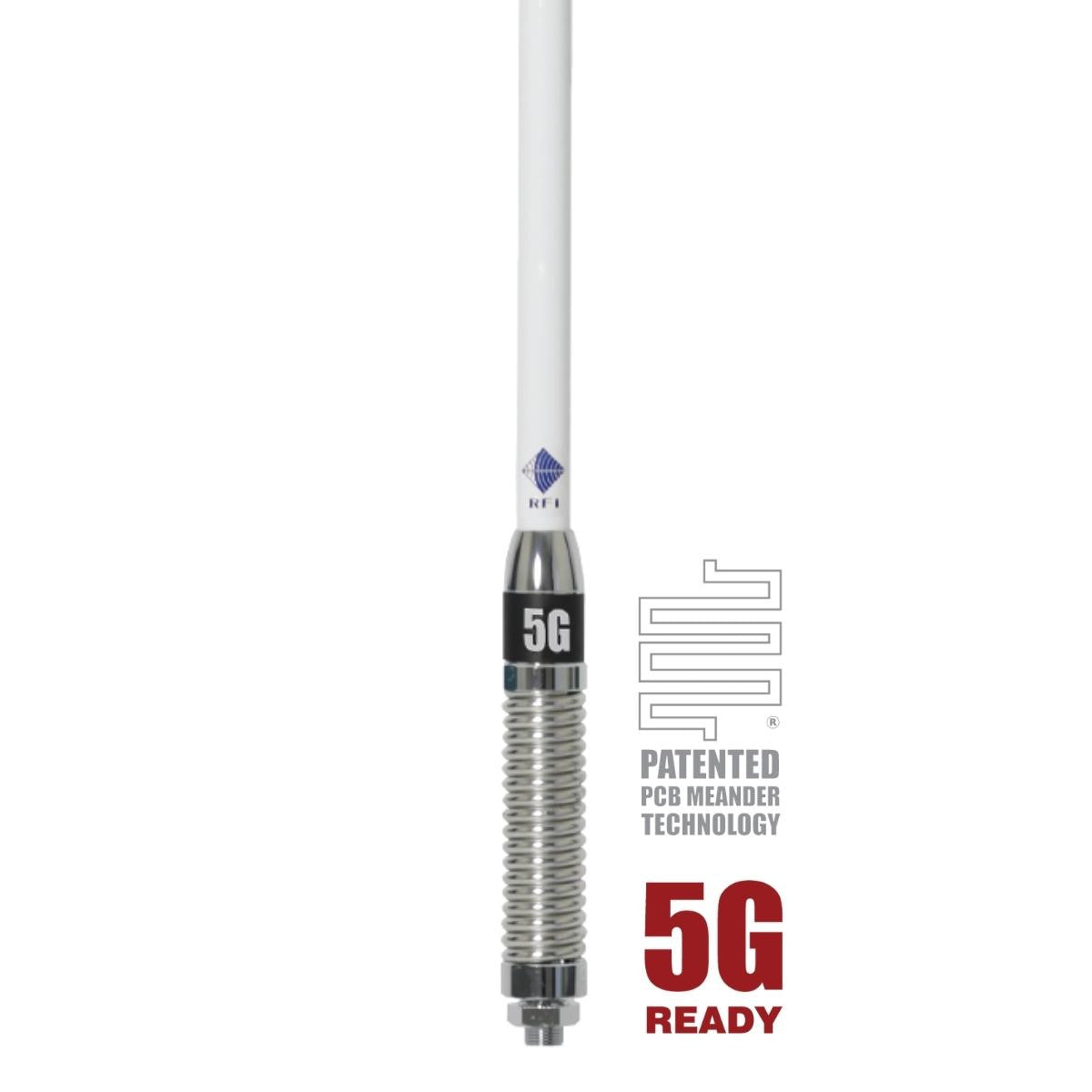

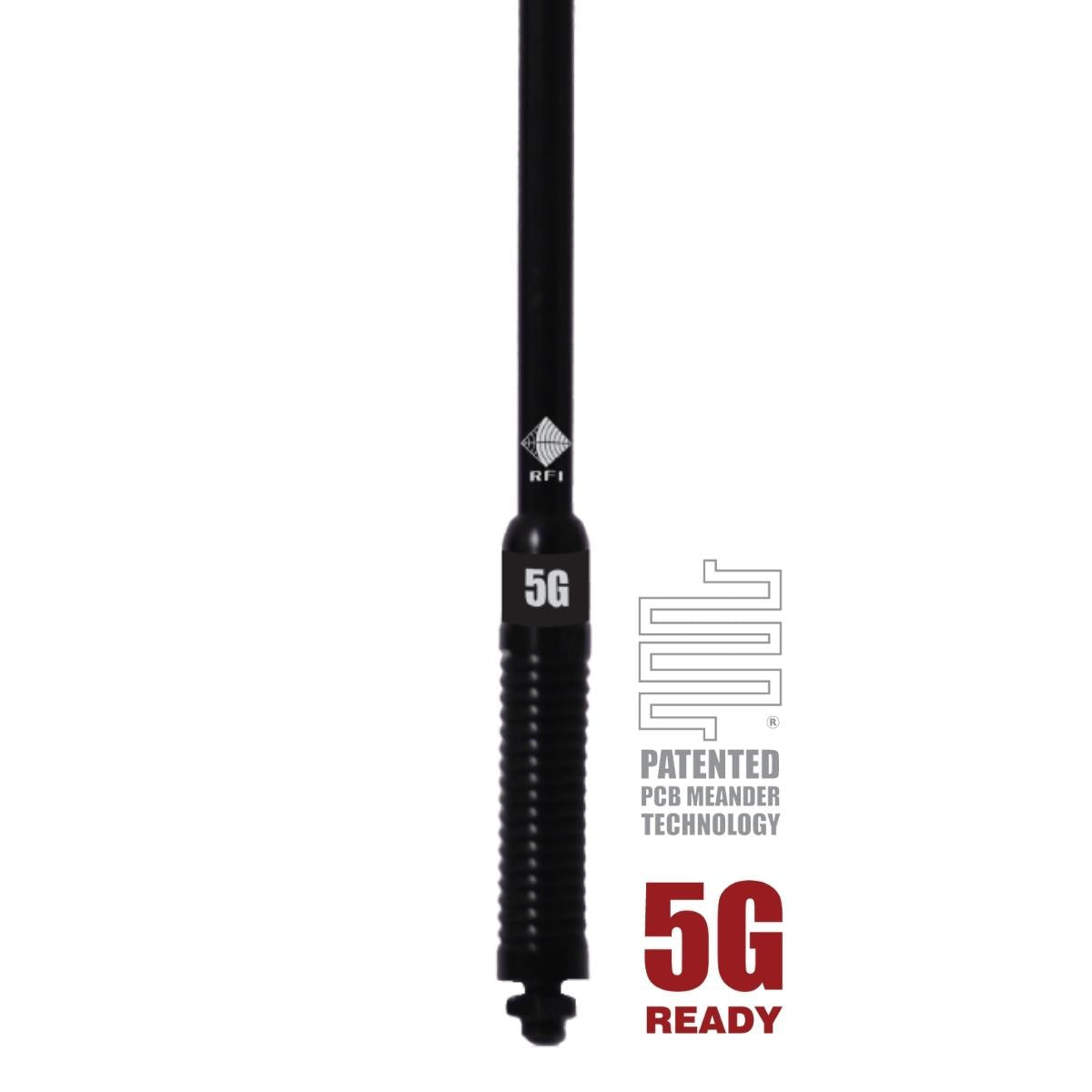

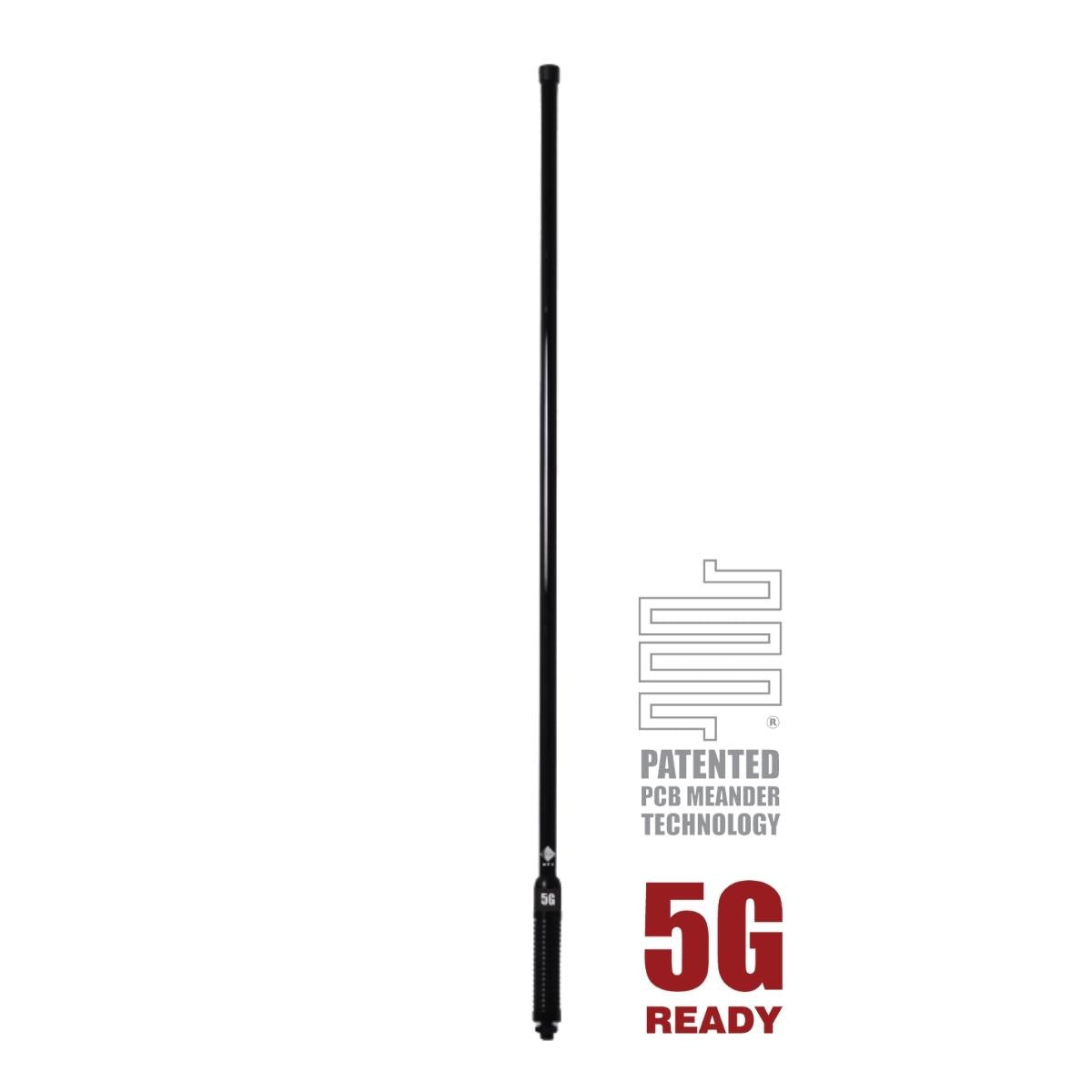

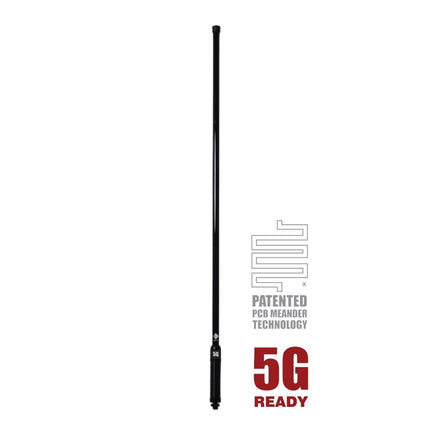

CD8195 high quality omni-directional 5G antenna from CD8100 series offers up to 6.5 dBi gain operating over 698 to 3800 MHz frequency. Based on patented Meander technology, which is known for consistent gain and coverage, the antenna has a fibreglass radome whip. CD8195 is 92cm cm in length comes with a fixed spring base and threaded stud of 13mm making it pretty easy to install. Cable length is 5m with SMA (M) connector. Note: The spring assembly is fixed for CD antenna series. If you need removable spring, please consider CDQ or CDR antenna series.

Product Features:

• The antenna employs a patented collinear design based on Meander circuits to ensure stable performance.
• It provides multi-band coverage spanning 698 MHz to 3800 MHz for versatile connectivity.
• The ground-independent design delivers a maximum gain of 6.5 dBi for reliable reception.
• Installation is easy thanks to the integrated spring with a threaded stud and nut included in the package.

Application Areas:

• The CD8195 is recommended for use with the Cel-Fi Roam R41 in vehicles such as 4x4 drives and transport fleets to improve in-vehicle coverage.
• This antenna can also be paired with routers like the Teltonika RUTX50 to enable 5G service.
• If two antennas are used together for diversity gain, they should be separated by 43 cm to account for the lowest supported frequency of 698 MHz.

In the Box:

• RFI CD8195 5G Mobile Antenna
• Spring base

Documents:

RFI CD8195 Antenna - Datasheet RFI CD8195 Antenna - Specifications RFI CD8195 Antenna - Installation Guide
