RFI CPL6938-10M-N-SMA 5G Directional Panel Antenna, 698-3800 MHz, SISO, 10m, SMA-Male

    RFI CPL6938-10M-N-SMA 5G Directional Panel Antenna, 698-3800 MHz, SISO, 10m, SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014134
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      CPL6938-10M-N-SMA
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI CPL6938-10M-N-SMA Directional Panel Antenna (698-3800 MHz) designed to enhance performance of a wireless broadband network or cellular devices.

      Available

      $288.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

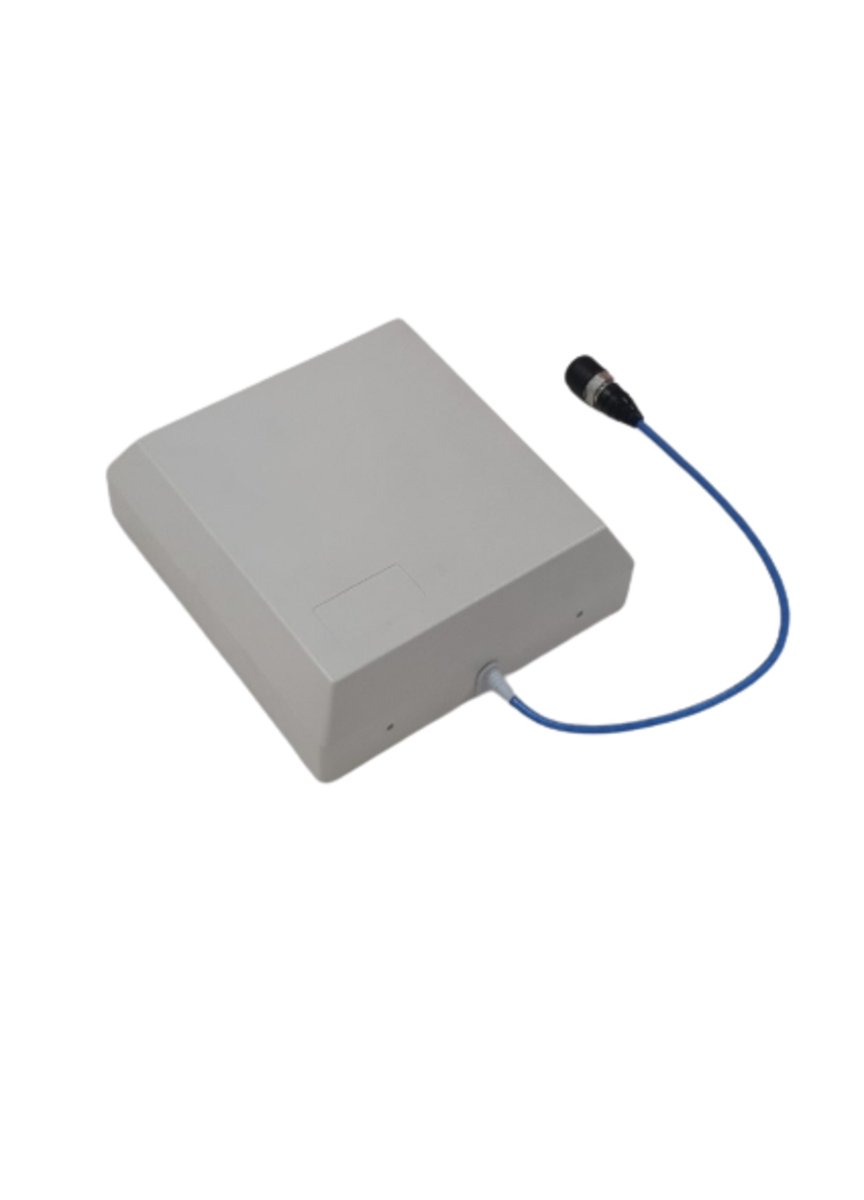

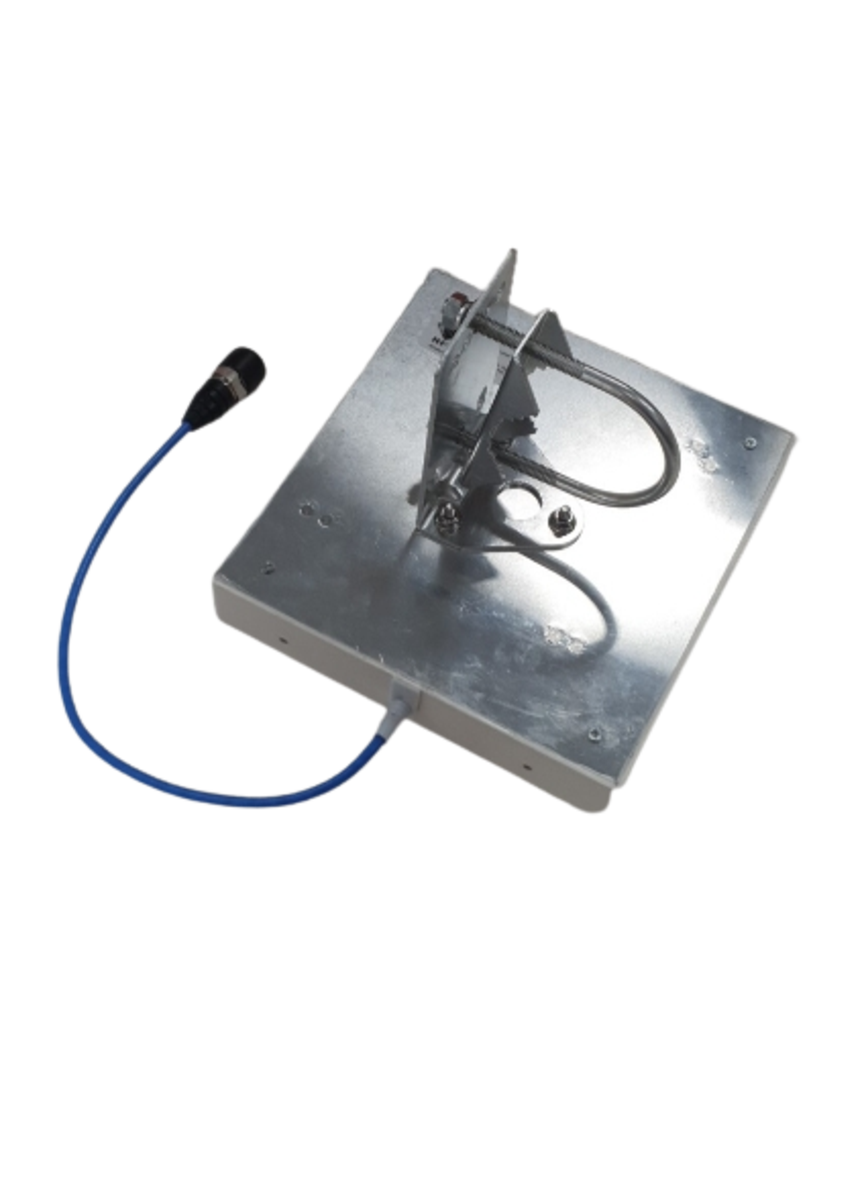

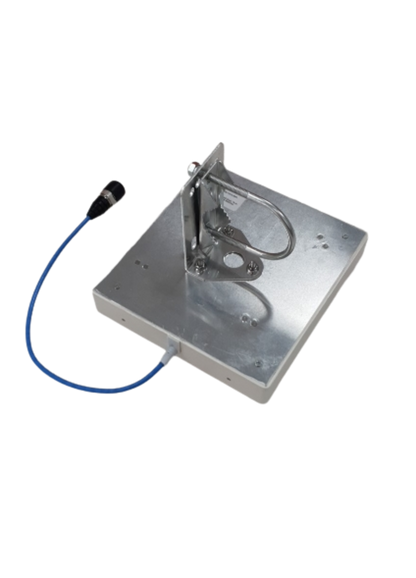

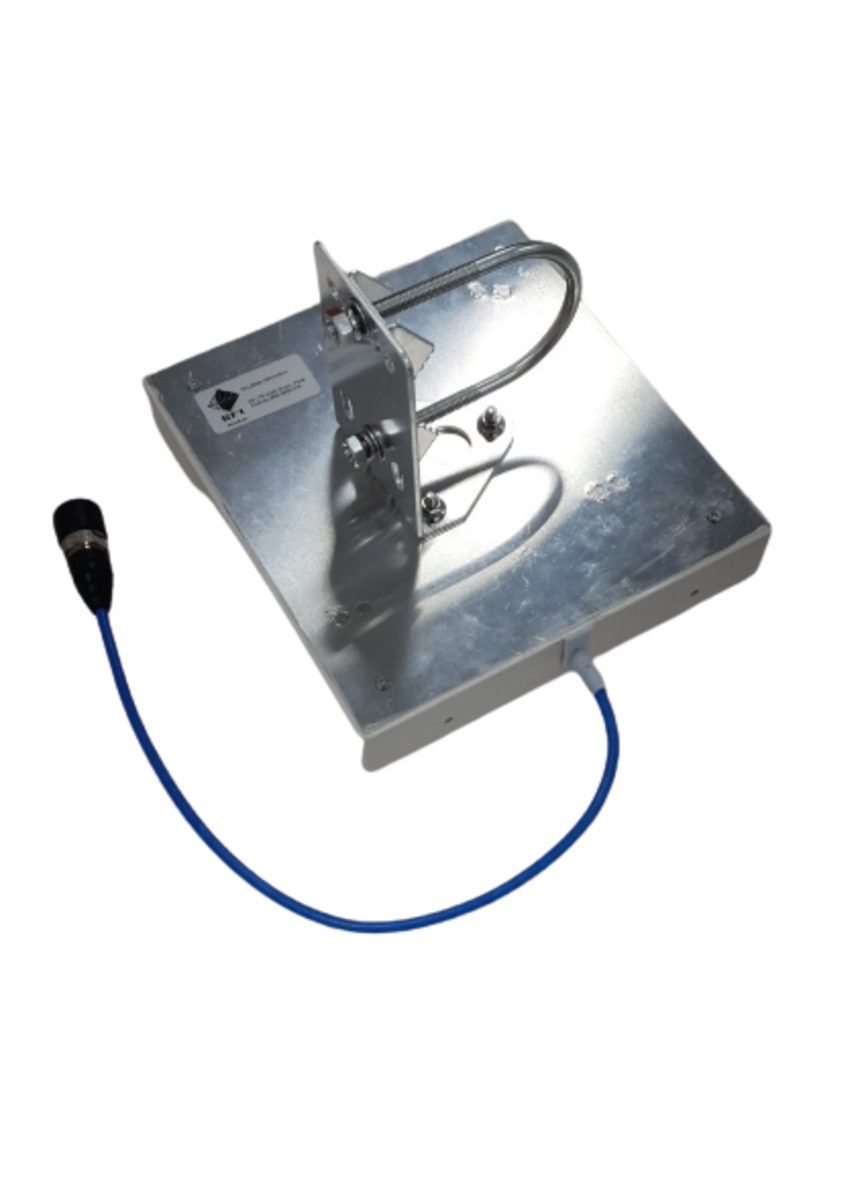

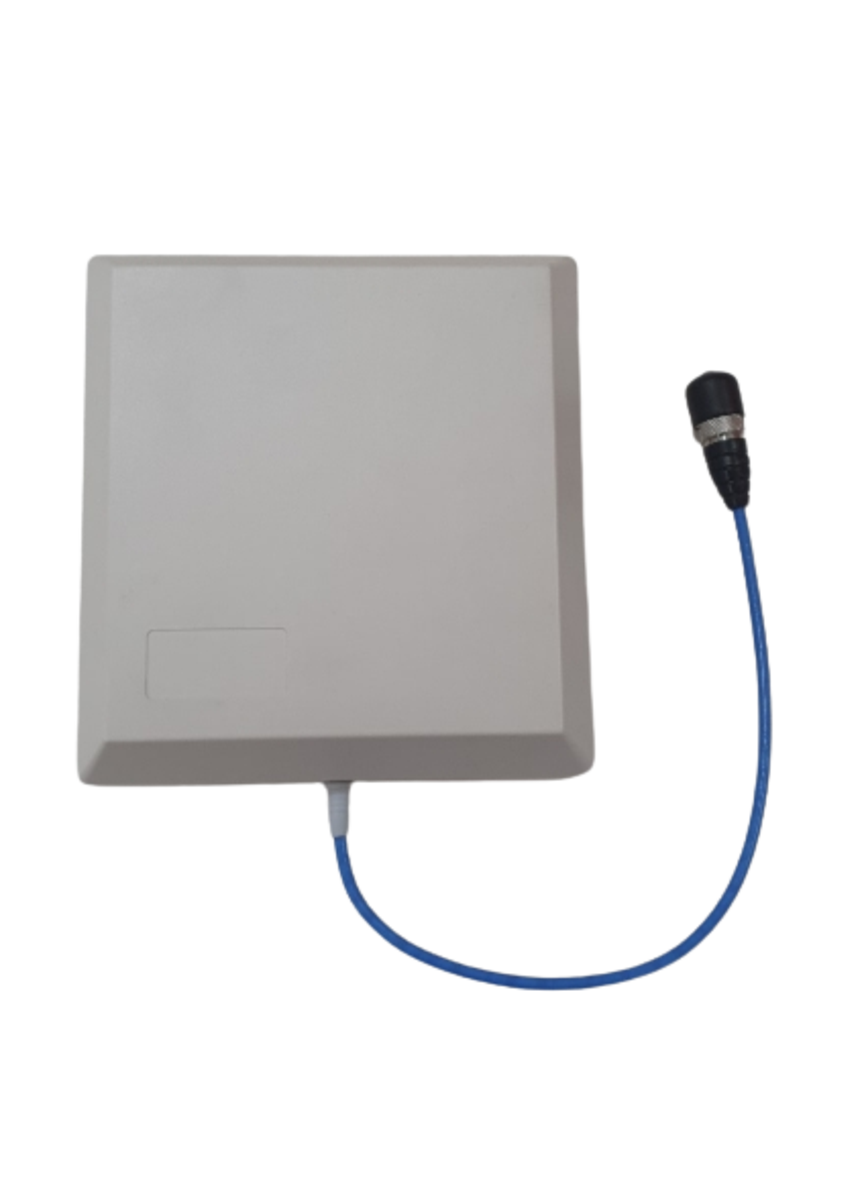

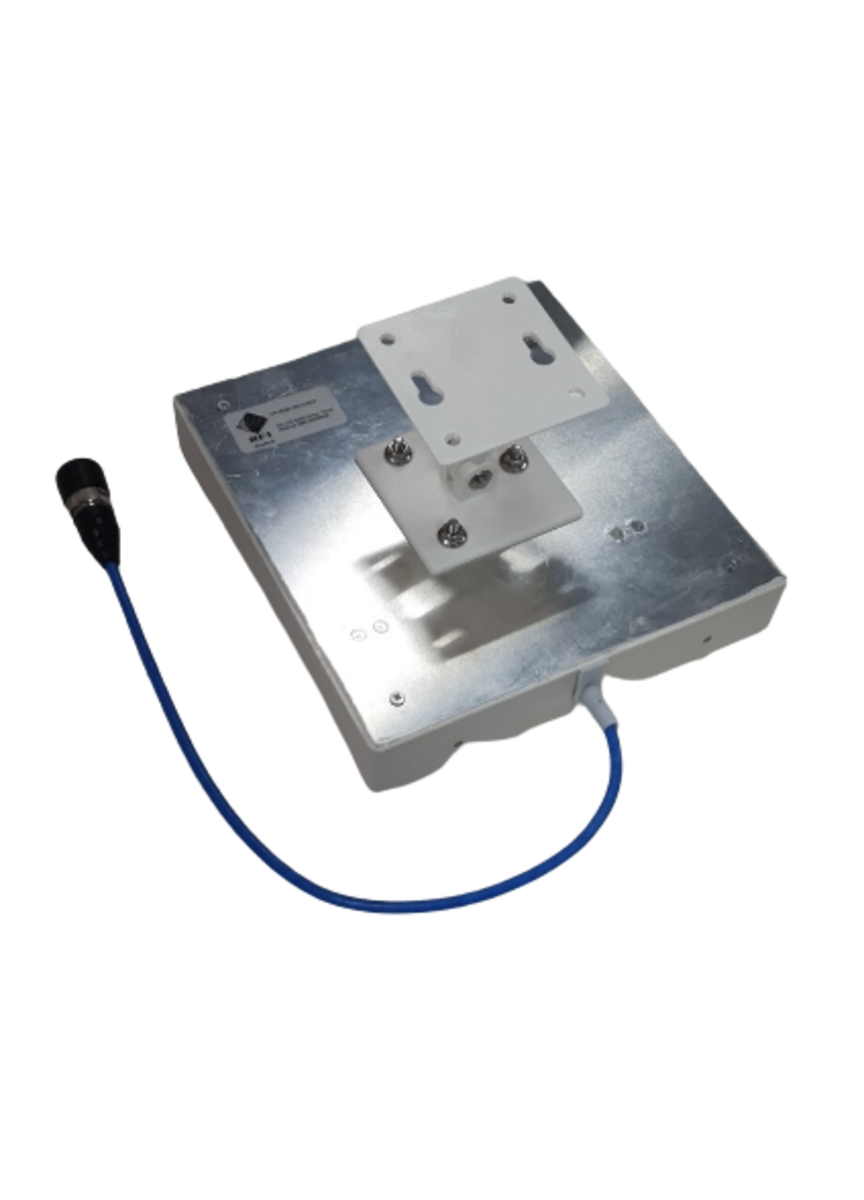

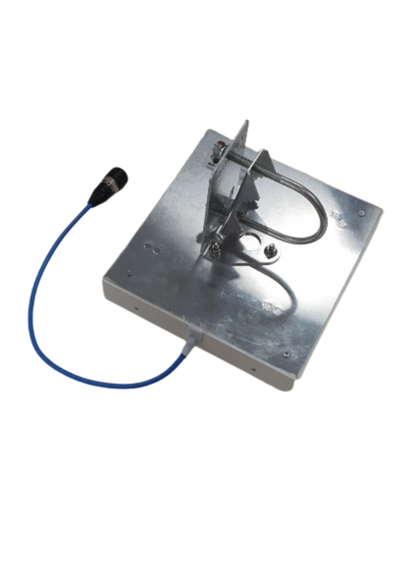

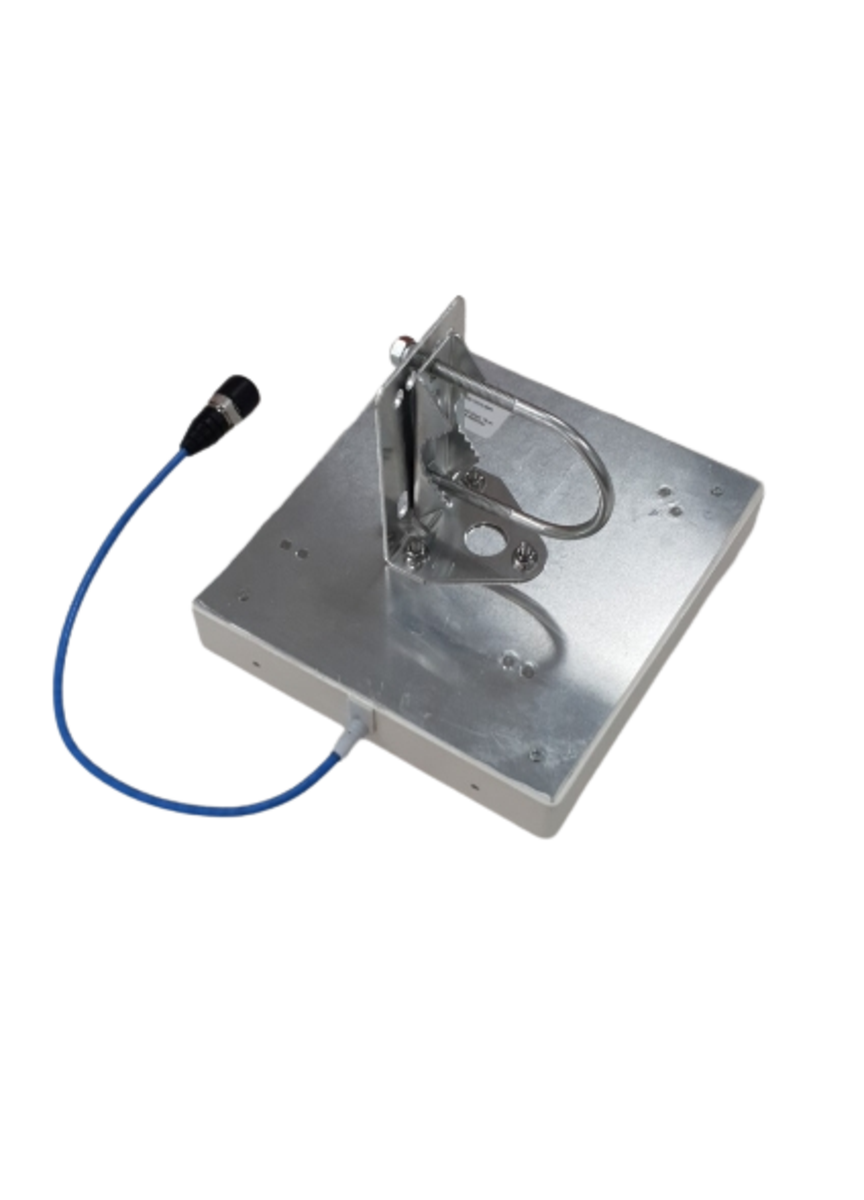

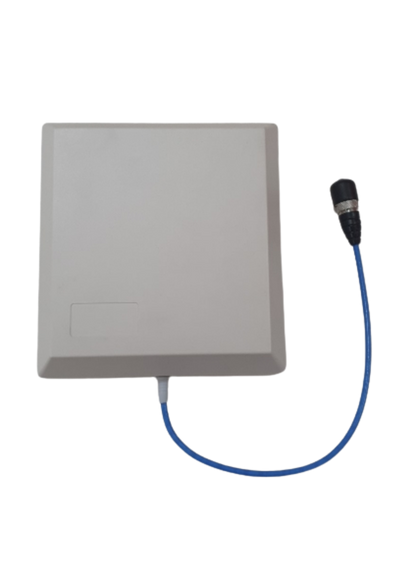

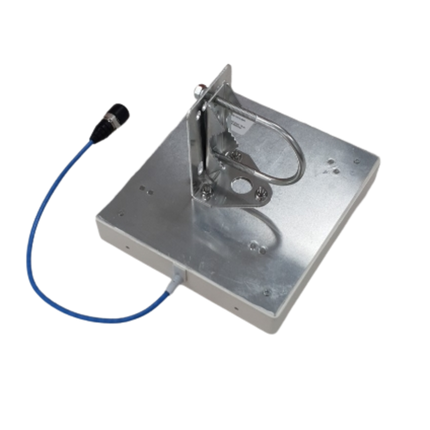

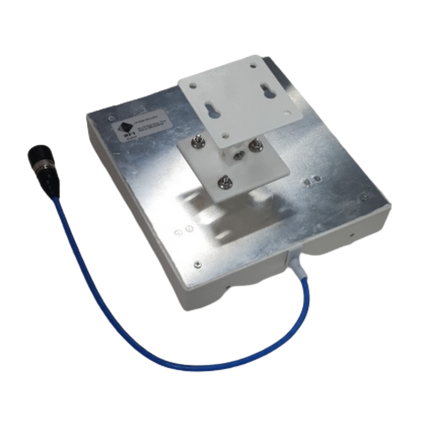

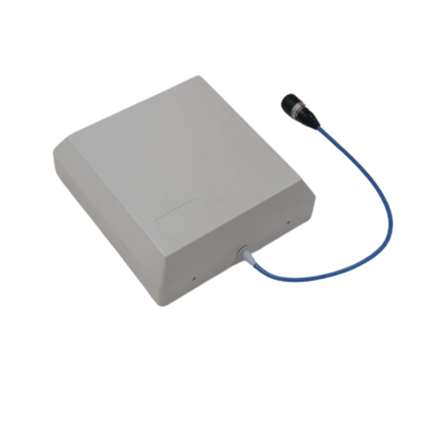

        RFI CPL6938-10M-N-SMA is a directional panel antenna designed to enhance the performance of a wireless broadband network or cellular device. The antenna is supplied as a ready to install kit which includes the antenna, both wall and pole mounting brackets, installation instructions and a 10m extension cable fitted with an SMA male connector to suit most desk mounted wireless broadband devices (an optional patch lead may be required to connect the antenna to USB modems or devices with connectors other than SMA).

        Documents:

        RFI CPL6938 Directional Panel Antenna - Datasheet RFI CPL6938 Directional Panel Antenna - Patterns and Gain

        Product Specifications

        MPN CPL6938-10M-N-SMA
        Antenna cable type RG58, RG402
        Antenna port connectors SMA (M)
        Brands RFI
        Cable and connector 0.3m RG402 tail N(F) & 10m 9006 N(M) & SMA(M)
        Cable length m 10
        Connector SMA(M)
        Coverage type Directional
        Frequency mhz 698-960|1710-2700|3500-3800
        Front back ratio db <15 / <14 / <13
        Height 5
        Horizontal beamwidth 90 / 55 / 50
        Ingress protection ip IP65
        Installation type External mounting
        Ip rating IP65
        GTIN/EAN 9320110038221
        Length 6
        Low pim Yes
        Max frequency mhz 3800
        Max gain dbd dbi 8
        Mimo support No
        Min frequency mhz 698
        Min gain dbd dbi 5
        Mount supported Wall mount, Pole mount
        Mount supported detailed Wall mount, Pole mount
        No of antenna ports 1
        Nominal gain dbi 39575
        Packaging Cardboard Carton
        Polarisation Vertical
        Power w 25
        Technologies supported 3G, 4G, 5G
        Tuned bandwidth Full
        Vertical beamwidth 85 / 85 / 50
        Vswr <2:1
        Width 5
