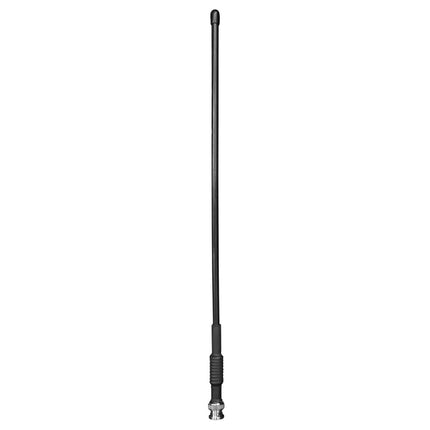

RFI CRD-BNC-68 UHF 4 dB Hand Portable Antenna (450-520 MHz); BNC(M)

RFI CRD-BNC-68  UHF 4 dB Hand Portable Antenna (450-520 MHz); BNC(M), elevates handheld communication. It is specifically designed for 450-520 MHz frequency range. The CRD Series Dipoles, featuring a half-wave dipole design, guarantee true high performance in handheld applications, ensuring clear and reliable communication on the go.

Features:

• Frequency Range: Covers the UHF spectrum from 450 to 520 MHz for versatile communication capabilities.
• BNC(M) Termination: Equipped with a BNC(M) termination for a secure and efficient connection.
• Half-Wave Dipole Design: The (CRD-BNC-68) dipole element, enclosed in flexible PVC tubing, provides optimal performance.
• Trimming Capability: Use the enclosed tuning chart to trim the antenna over the specified band, allowing customization for specific needs.
• Tuned Bandwidth: Offers a tuned bandwidth of approximately 2% of the center frequency, ensuring precise and efficient operation.

Specifications:

• Frequency Range: 450-520MHz
• Tuned Bandwidth: 10MHz for VSWR<2.0:1
• Power Rating: 50 Watts
• VSWR: Less than 1.5:1 at center frequency
• Polarization: Vertical
• Gain: 0dBd (Unity gain referenced to a ½ wave dipole, giving an improvement in performance of 4dB compared to typical ¼ wave hand portable antennas in hand portable applications)
• Termination: Male connector with shroud
• Operating Temperature: -40°C to 85°C
• 90° Flexure Cycle Life: 20,000 Flex Cycles Typical

Documents:

RFI CRD-BNC-68 Antenna - Datasheet
RFI CRD-BNC-68 Antenna - Installation Guide
