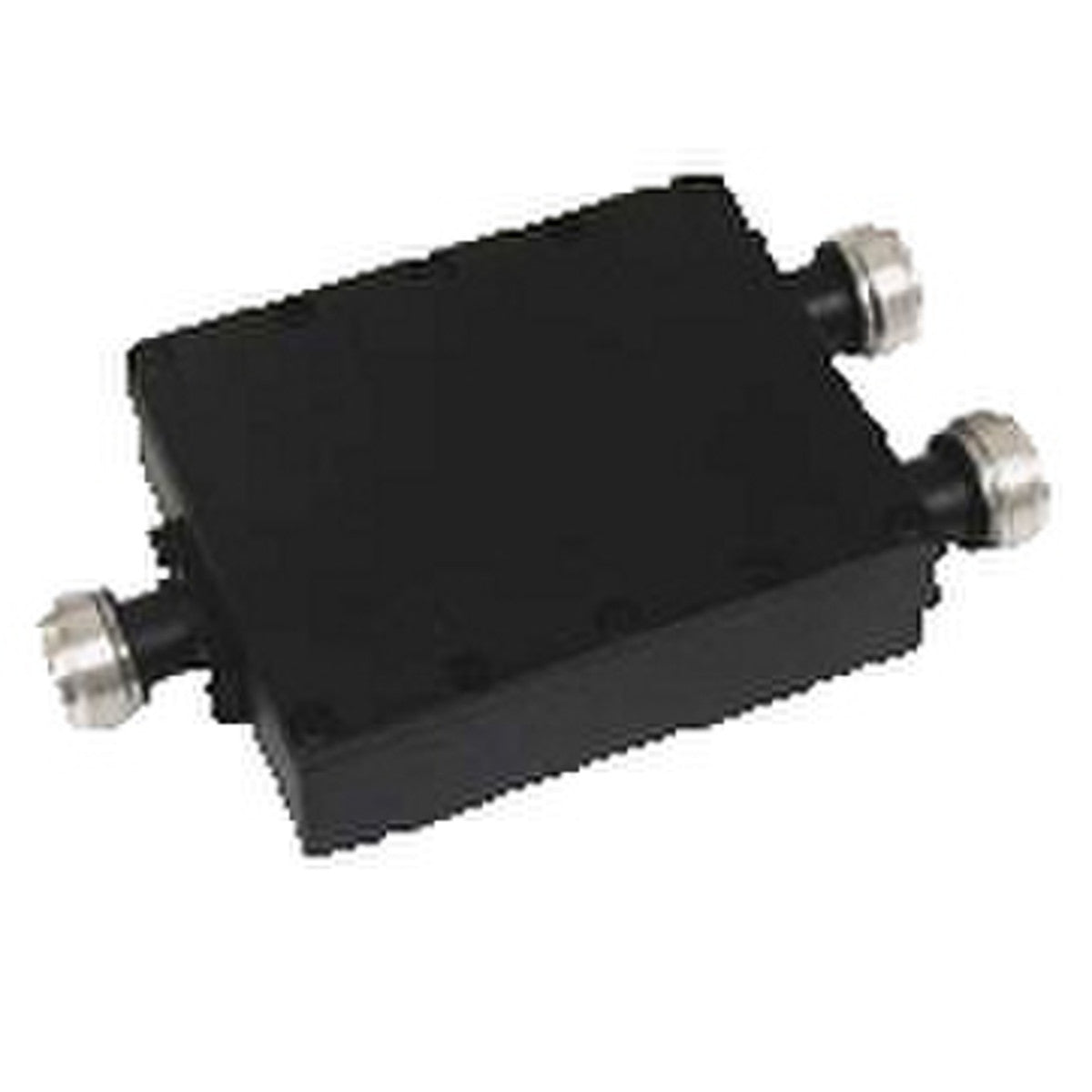

RFI SP0000-1127-11 Crossband Coupler, 118-145 and 225-400 MHz, 50W, N-Female

    RFI SP0000-1127-11 Crossband Coupler, 118-145 and 225-400 MHz, 50W, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168018943
      MPN:
      SP0000-1127-11
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Crossband Coupler 118-145 and 225-400 MHz; ideal for low and medium power applications utilising aviation VHF band 118-145 MHz and UHF band 225-400 MHz.

      Price on Application

      Product Description

      RFI Crossband Coupler 118-145 and 225-400 MHz; 50W N(F)

      Features:

      These models feature small size, low insertion loss, high isolation between bands and excellent temperature stability. Silver-plated connectors are utilised to improve multi-carrier Passive Intermodulation (PIM) performance. Models are available to suit other frequency band combinations, or to provide cascaded combining of multiple frequency bands from 25 MHz to 2500 MHz thereby providing for the combining or separation of VHF, UHF, Cellular and WLAN services.
      • Compact Package Size
      • Ideal for Radiating Cable Systems
      • Suits Mobile Applications
      • Rugged Construction Style

      Product Specifications

      Brand RFI
      Length 7.85
      Width 10.55
      Height 2.3
      Component Type Crossband Coupler
      Connector N(F)
      Construction Milled aluminium, painted black
      Frequency [MHz] 118-145, 225-400
      Insertion Loss dB 0.6 (typ)
      Isolation 40dB (min)
      Power Rating Watts 50
      Return Loss [dB] 20dB (min)
      Temperature Range -20 to +60?C / -4 to +140?F
