RFI SP0000-1122-11 Crossband Coupler 66-180 and 400-520 MHz 250W, N-Female

    RFI SP0000-1122-11 Crossband Coupler 66-180 and 400-520 MHz 250W, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168019037
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      SP0000-1122-11
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Crossband Coupler 66-180 and 400-520 MHz 250W; N(F) - are ideal for higher power applications requiring 66-88MHz, FM Broadcast 88-108MHz

      $2,016.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

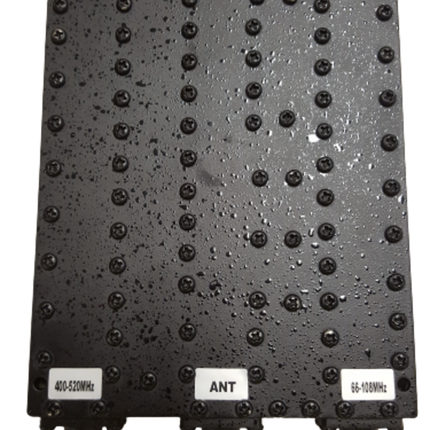

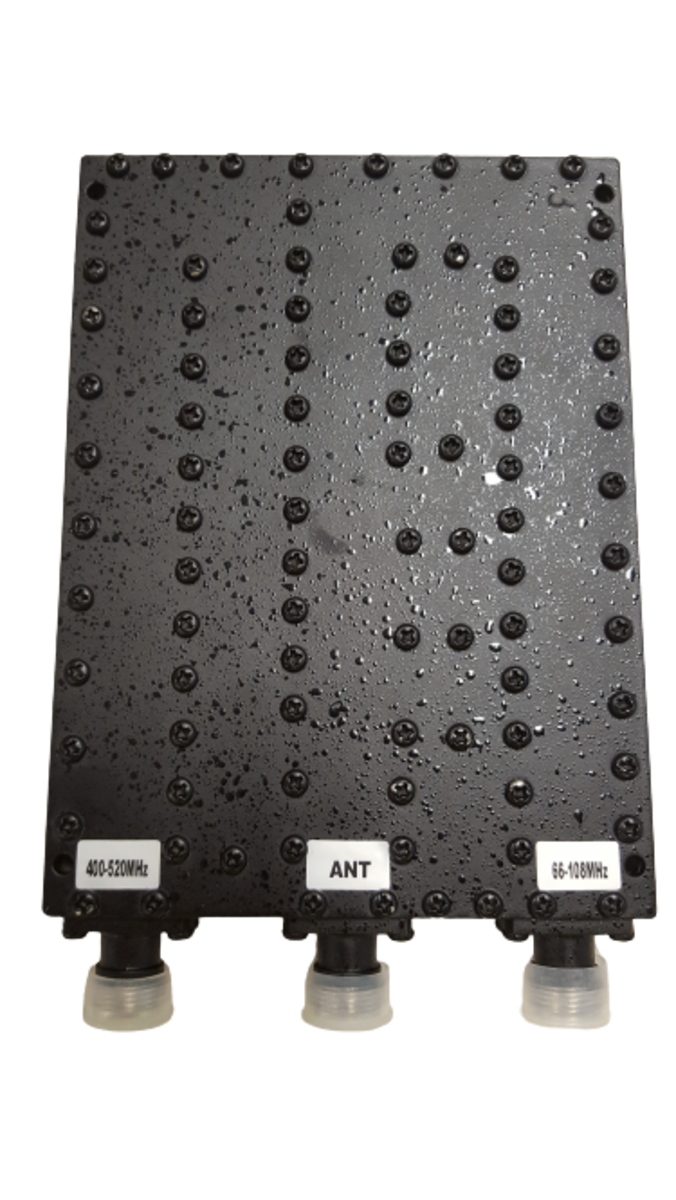

      RFI Crossband Coupler 66-180 and 400-520 MHz 250W; N(F)

      Features:

      These models feature compact size, low insertion loss, high isolation between bands and excellent temperature stability. Silver-plated connectors are utilised to improve multi-carrier Passive Intermodulation (PIM) performance. Models are available to suit other frequency band combinations, or to provide cascaded combining of multiple frequency bands from 60 MHz to 2500 MHz thereby providing for the combining or separation of VHF, UHF, Cellular and WLAN services.
      • 250W Power Rating
      • Compact Package Size
      • Ideal for Radiating Cable Systems
      • Rugged Construction Style

      Documents:

      RFI SP0000-1122-11 Crossband Coupler - Datasheet

      Product Specifications

      MPN SP0000-1122-11
      Brands RFI
      Component type Crossband Coupler
      Connector N(F)
      Frequency mhz 400-520, 66-180
      Height 2.4
      Insertion loss db 0.5(max)
      Isolation 40dB (min)
      Length 18.1
      Pim 3rd 2 43 dbm dbc -140dBc(max)
      Power rating watts 250
      Return loss db 15(min)
      Temperature range c -25 to+65
      Width 11.9
