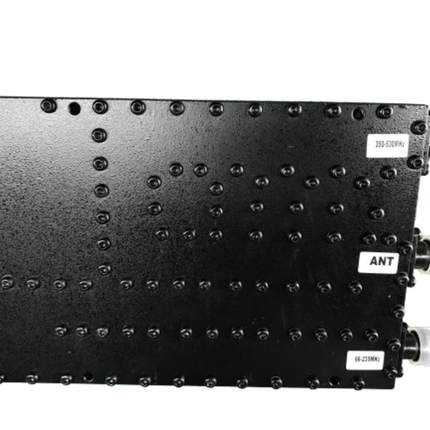

RFI Crossband Coupler 66-235 MHz / 350-530 MHz 250W N(F)

Typical applications include the combining or separating of signals for use with signal distribution systems including Bi-Directional Amplifiers (BDAs) and Radiating Cable systems. These couplers can also be operated as either a Low Pass or High Pass filter, by terminating one port with a low power 50 ohm load. This model features small size, low insertion loss, high isolation between bands and excellent temperature stability.

Features:

• Compact package size
• Ideal for radiating cable systems
• PIM rated
• Rugged construction style

Documents:

RFI SP0000-1182-11 Crossband Coupler - Datasheet
